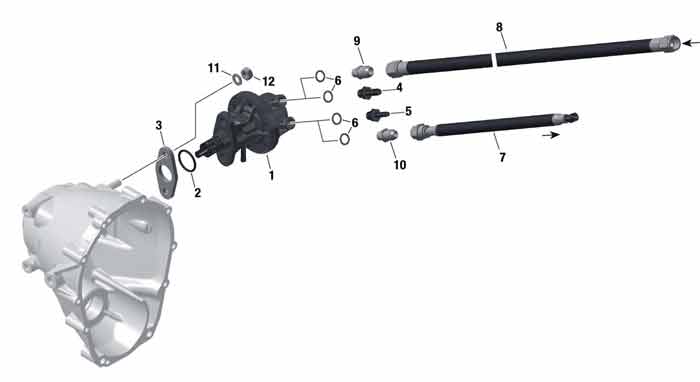

fig. 73-10-00-2a
FUEL PUMP ASSY., FUEL HOSE ASSY., AIRBOX ASSY. For rotax 912uls
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-3 | 893115 | Fuel Pump Assy | 363.97 | Add to Cart |
| 2 | 631870 | Oring 23.47 X 2.62 | 7.06 | Add to Cart |
| 3 | 950228 | Isolating Gasket | 93.74 | Add to Cart |
| 4 | 840745 | Nipple 9/5,7 | 22.99 | Add to Cart |
| 5 | 840740 | Nipple 7/3,8 | 24.09 | Add to Cart |
| 6 | 250425 | Gasket Ring 10,2/15/1,5 | 1.04 | Add to Cart |
| 7 | 874337 | Fuel Hose Assy | 586.88 | Add to Cart |
| 8 | 874347 | Fuel Hose Assy | 933.04 | Add to Cart |
| 9 | 840770 | Adapter 9/16 Unf/m10 X 1 | 110.1 | Add to Cart |
| 10 | 840775 | Adapter 1/2-20 Unf/m10 X 1 | 110.1 | Add to Cart |
| 11 | 945832 | Lock Washer A8 | 0.21 | Add to Cart |
| 12 | 942674 | Hex. Nut M8 (ws 11mm) | 4.58 | Add to Cart |
| 13 | 851328 | Clamp Block | 133.53 | Add to Cart |
| 14 | 840518 | Allen Screw M5x18 | 0.58 | Add to Cart |
| 15 | 950143 | Brass Gasket Ring 8,2/13/1,4 | 5.16 | Add to Cart |
| 16 | 956312 | Hose Nipple 3/4 | 23.34 | Add to Cart |
| 17 | 840737 | Banjo Bolt Assy | 78.92 | Add to Cart |
| 18 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.18 | Add to Cart |
| 19 | 641733 | Plug Screw M10x1 | 11.4 | Add to Cart |
| 20 | 940861 | Banjo Bolt M8x1x27 | 47.49 | Add to Cart |
| 22 | 866716 | Clamp | 0.52 | Add to Cart |
| 23 | 840735 | Banjo Bolt M8x1x17 | 56.98 | Add to Cart |
| 24-25 | 956602 | Double Hose Nipple Assy., | 129.43 | Add to Cart |
| 25 | 963820 | Pilot Jet 35 | 11.6 | Add to Cart |
| 27 | 651430 | Cable Clamp 12/m8 | 27.74 | Add to Cart |
| 31 | 874911 | Fuel Hose Assy. | 1199.65 | Add to Cart |
| 32 | 950141 | Gasket Ring A 8x13 Din 7603 | 0.26 | Add to Cart |
| 33 | 847796 | Spacer 8,4/12/7,5 | 13.59 | Add to Cart |
| 35 | 941853 | Fuel Line Connector | 82.55 | Add to Cart |
| 36-52 | 667355 | Air Box Assy | 1643.45 | Add to Cart |
| 37 | 860985 | Connecting Hose 35 Mm | 34.3 | Add to Cart |
| 38 | 853595 | Clamp 59 | 6.32 | Add to Cart |
| 39 | 874680 | Drip Tray Set | 186.35 | Add to Cart |
| 41 | 241440 | Adjustment Screw M6x0,75 | 8.88 | Add to Cart |
| 42 | 960151 | Rubber Puffer 20x15xm6 | 47.11 | Add to Cart |
| 43 | 853010 | Cable Clamp 32/m6 | 39.31 | Add to Cart |
| 44 | 927941 | Washer 6,0/12/1 | 0.21 | Add to Cart |
| 46 | 851370 | Clamp 8 | 3.43 | Add to Cart |
| 47 | 860660 | Hose 4x7 Per Meter | 63.26 | Add to Cart |
| 48 | 241848 | Allen Screw M5 X 12 | 18.53 | Add to Cart |
| 49 | 847741 | Graduated Sleeve | 22.96 | Add to Cart |
| 50 | 827801 | Washer A 5,5 | 0.21 | Add to Cart |
| 51 | 842033 | Lock Nut M5 | 0.21 | Add to Cart |
| 52 | 938030 | Spring | 19.19 | Add to Cart |
| 53 | 240772 | Hex.screw M6x10 | 0.37 | Add to Cart |
| 54 | 230415 | Gasket Ring A 6x10 Din 7603 | 0.18 | Add to Cart |
