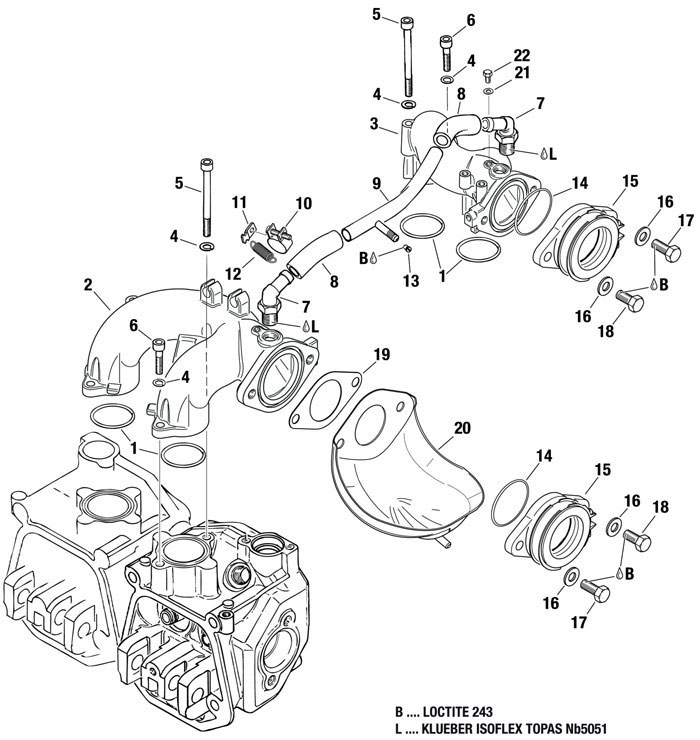

fig. 73-10-00-1
INTAKE MANIFOLD, COMPENSATING TUBE ASSY., RUBBER FLANGE ASSY. For rotax 912uls
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 230910 | O-ring 34x2 | 2.5 | Add to Cart |
| 2 | 867933 | Intake Manifold Assy. 2/4 | 208.46 | Add to Cart |
| 3 | 867936 | Intake Manifold | 443.87 | Add to Cart |
| 4 | 827962 | Washer 6,4 Din 125 | 0.23 | Add to Cart |
| 5- | 241871 | No Longer Available | 2.21 | Add to Cart |
| 5- | 240533 | Allen M6x75 | 1.35 | Add to Cart |
| 6 | 840866 | Allen Screw M6x25 Din 912 | 0.58 | Add to Cart |
| 7 | 922242 | Angular Tube | 34.3 | Add to Cart |
| 8- | 956143 | Tube 66 Mm | 11.6 | Add to Cart |
| 8- | 956141 | Tube 81 Mm | 14.31 | Add to Cart |
| 8- | 956142 | Low Pressure Hose (sold Per Meter) | 96.85 | Add to Cart |
| 9 | 924541 | Compensating Tube Assy., | 61.14 | Add to Cart |
| 10 | 853515 | Clamp 16/9 | 2.87 | Add to Cart |
| 11 | 953400 | Bracket | 0.58 | Add to Cart |
| 12 | 838242 | Spring | 17.02 | Add to Cart |
| 13 | 940980 | Screw M3.5 | 15.55 | Add to Cart |
| 14- | 230290 | O-ring | 1.35 | Add to Cart |
| 14- | 230300 | O-ring 47-2 | 0.37 | Add to Cart |
| 15 | 267789 | Rubber Flange Assy. | 30.24 | Add to Cart |
| 16 | 250315 | Washer 8,4 | 0.21 | Add to Cart |
| 17 | 940483 | Hex. Screw M8x30 | 0.37 | Add to Cart |
| 18 | 240277 | Hex. Screw M8x25 | 0.58 | Add to Cart |
| 19 | 931640 | Gasket | 3.43 | Add to Cart |
| 20 | 874300 | Drip Tray 914 | 41.85 | Add to Cart |
| 21 | 230415 | Gasket Ring A 6x10 Din 7603 | 0.18 | Add to Cart |
| 22 | 641071 | Hex.screw Iso 4017-m6x6-8.8 | 0.93 | Add to Cart |
