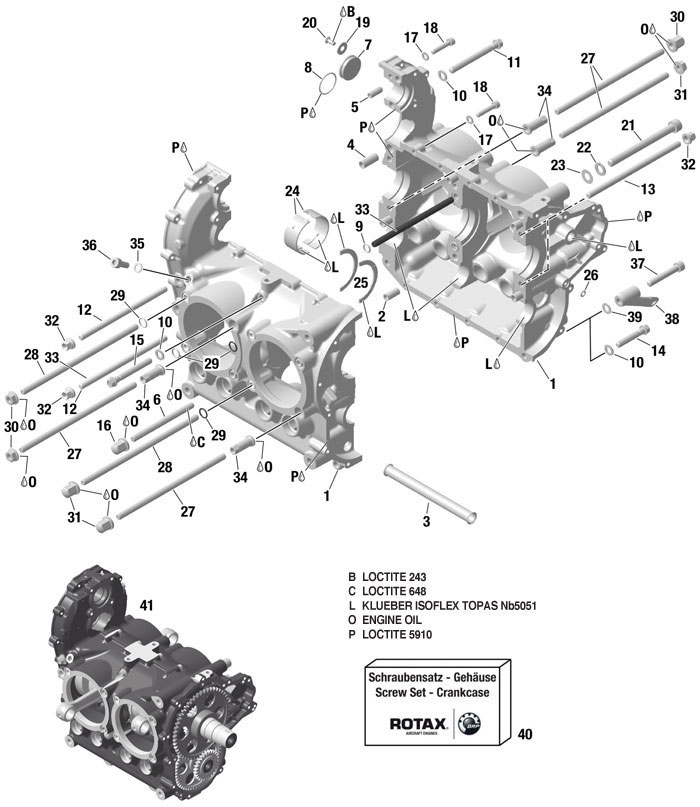

fig. 72-20-00-3
CRANKCASE
(from crankase S/N: 14.0000) For rotax 912uls
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 6 | 840191 | Stud M8x105 | 13.38 | Add to Cart |
| 7 | 944222 | Blinding Shim | 19.1 | Add to Cart |
| 8 | 430061 | O-ring 26.7 X 1.8 | 0.93 | Add to Cart |
| 10 | 944131 | Washer 8 Mm | 0.78 | Add to Cart |
| 11 | 840062 | Alen M8x80 | 7.26 | Add to Cart |
| 12 | 840092 | Stud M8 X 1 X 153 | 18.47 | Add to Cart |
| 13 | 840102 | Stud M8 X 1 X 163 | 23.91 | Add to Cart |
| 14 | 940071 | Hex Screw M8 X 45 | 8.34 | Add to Cart |
| 15 | 440406 | M8 X 65 Collar Hex Screw | 13.16 | Add to Cart |
| 16 | 842476 | Collar Cap Nut M8 | 36.38 | Add to Cart |
| 17 | 827962 | Washer 6,4 Din 125 | 0.23 | Add to Cart |
| 18 | 840887 | Allen Screw M6x30 Din 912 | 0.93 | Add to Cart |
| 19 | 227280 | Thrust Washer | 2.29 | Add to Cart |
| 20 | 940316 | Countersunk Screw M5x12 | 0.58 | Add to Cart |
| 21- | 941487 | Allen Screw M10x110 Din 912 | 4.95 | Add to Cart |
| 21- | 941557 | Nla | 11.61 | Add to Cart |
| 22 | 945833 | Lock Washer A10 | 0.37 | Add to Cart |
| 23 | 927411 | Washer 10,5 | 0.21 | Add to Cart |
| 26 | 831929 | O-ring 5x2 | 0.93 | Add to Cart |
| 27 | 840141 | Stud M8 X 186 | 12.28 | Add to Cart |
| 28 | 840171 | Stud M8 X 200 | 12.68 | Add to Cart |
| 29 | 431570 | O-ring 10,82x1.78-n | 0.37 | Add to Cart |
| 30 | 842610 | Hex Nut M8 | 0.23 | Add to Cart |
| 31 | 842476 | Collar Cap Nut M8 | 36.38 | Add to Cart |
| 32 | 842860 | Collar Hex. Nut M8 X 1 | 24.43 | Add to Cart |
| 33 | 840132 | Stud M8 X 1 X 139 | 20.82 | Add to Cart |
| 34 | 929117 | Thread Sleeve M8x1 + M8 | 40.03 | Add to Cart |
| 35 | 950141 | Gasket Ring A 8x13 Din 7603 | 0.26 | Add to Cart |
| 36 | 240072 | Allen Screw M8x20 | 0.58 | Add to Cart |
| 37 | 440107 | Allen Screw M8x50 Din 912 | 2.29 | Add to Cart |
| 38 | 953304 | Manifold Bracket Assy | 229.11 | Add to Cart |
| 39- | 926400 | Washer 8,4/15/0,5 | 3.08 | Add to Cart |
| 39- | 926401 | Washer 8,4/15/1 | 3.43 | Add to Cart |
| 39- | 926402 | Washer 8,4/15/1,5 | 3.64 | Add to Cart |
| 40 | 881120 | Crank Bolt Kit From 06.0010 | 563.8 | Add to Cart |
