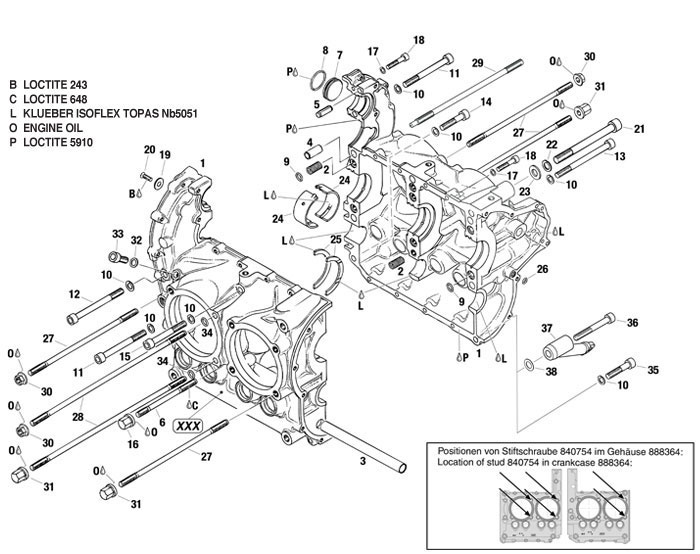

fig. 72-20-00-1

CRANKCASE
(up to crankcase S/N:27811) For rotax 912uls

Click on Number to order Part

Click here to see Your Cart
Fig. Part Number Description Unit/Price Add to Cart
6 840191 Stud M8x105 13.38 Add to Cart
7 944222 Blinding Shim 19.1 Add to Cart
8 430061 O-ring 26.7 X 1.8 0.93 Add to Cart
10 945832 Lock Washer A8 0.21 Add to Cart
11 840062 Alen M8x80 7.26 Add to Cart
12 640932 Allen Screw M8x90 Din 912 3.8 Add to Cart
13 440427 Allen Screw M8x100 Din 912 4.22 Add to Cart
14 940071 Hex Screw M8 X 45 8.34 Add to Cart
15 440406 M8 X 65 Collar Hex Screw 13.16 Add to Cart
16 842476 Collar Cap Nut M8 36.38 Add to Cart
17 827962 Washer 6,4 Din 125 0.23 Add to Cart
18 840887 Allen Screw M6x30 Din 912 0.93 Add to Cart
19 227280 Thrust Washer 2.29 Add to Cart
20 940316 Countersunk Screw M5x12 0.58 Add to Cart
21- 941487 Allen Screw M10x110 Din 912 4.95 Add to Cart
21- 941557 Nla 11.61 Add to Cart
22 945833 Lock Washer A10 0.37 Add to Cart
23 927411 Washer 10,5 0.21 Add to Cart
26 831929 O-ring 5x2 0.93 Add to Cart
27 840752 Stud, M8 X 201 8.34 Add to Cart
28 840757 Stud M8x291 11.75 Add to Cart
29 840754 Stud M8x210 13.77 Add to Cart
30 842610 Hex Nut M8 0.23 Add to Cart
31 842476 Collar Cap Nut M8 36.38 Add to Cart
32 950141 Gasket Ring A 8x13 Din 7603 0.26 Add to Cart
33 240072 Allen Screw M8x20 0.58 Add to Cart
34 830415 O-ring 7x2 1.35 Add to Cart
35 940071 Hex Screw M8 X 45 8.34 Add to Cart
36 440107 Allen Screw M8x50 Din 912 2.29 Add to Cart
37 953304 Manifold Bracket Assy 229.11 Add to Cart
38- 926400 Washer 8,4/15/0,5 3.08 Add to Cart
38- 926401 Washer 8,4/15/1 3.43 Add to Cart
38- 926402 Washer 8,4/15/1,5 3.64 Add to Cart
