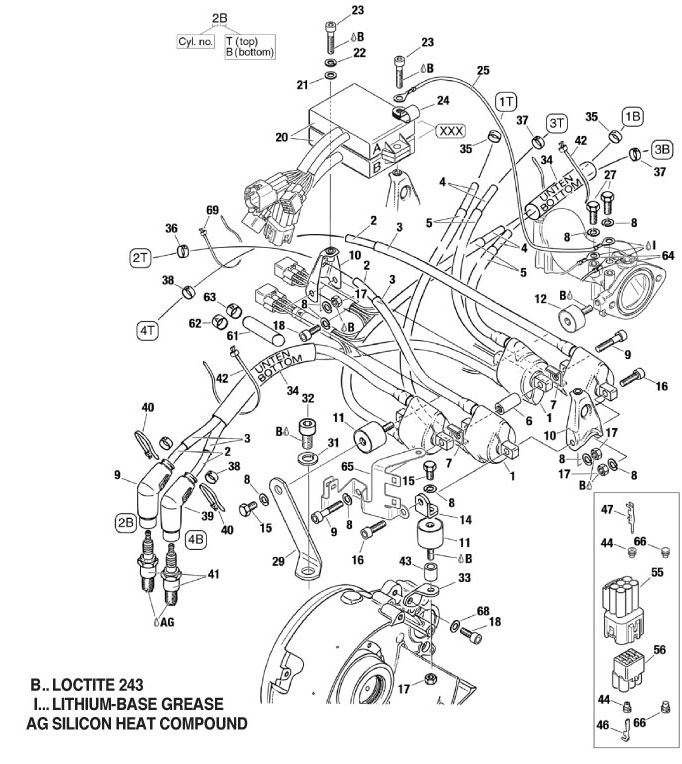

fig. 74-20-00-3
DOUBLE IGNITION COIL ASSY 912UL/914UL (new version) For rotax 912uls
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-5 | 966218 | Double Ignition Coil Assy | 185.34 | Add to Cart |
| 2 | 865711 | Ignition Cable (sold By The Meter) | 76.81 | Add to Cart |
| 3 | 860991 | Protection Hose 8x1 | 61.52 | Add to Cart |
| 4 | 865711 | Ignition Cable (sold By The Meter) | 76.81 | Add to Cart |
| 5 | 860991 | Protection Hose 8x1 | 61.52 | Add to Cart |
| 6 | 842742 | Distance Nut M6x22,5 | 19.71 | Add to Cart |
| 7 | 953390 | Separating Plate | 0.37 | Add to Cart |
| 8 | 945831 | Lock Washer A6 Din 128 | 0.21 | Add to Cart |
| 9 | 840883 | Allen Screw M6x30 | 1.14 | Add to Cart |
| 10 | 953127 | Ignition Coil Bracket Ass`y | 48.01 | Add to Cart |
| 11 | 860710 | Rubber Buffer 25x20xm6 | 44.37 | Add to Cart |
| 12 | 960060 | Rubber Buffer 25x15xm6 | 24.09 | Add to Cart |
| 14 | 851260 | Ignition Coil Bracket 1 | 15.55 | Add to Cart |
| 15 | 240772 | Hex.screw M6x10 | 0.37 | Add to Cart |
| 16 | 241935 | Allen Screw M6x20 | 0.58 | Add to Cart |
| 17 | 242214 | Hex.nut M6 | 0.23 | Add to Cart |
| 18 | 241237 | Allen Screw M6x16 | 0.21 | Add to Cart |
| 20 | 965445 | Smd-elect. Module 912 Series New | 479.38 | Add to Cart |
| 21 | 827801 | Washer A 5,5 | 0.21 | Add to Cart |
| 22 | 945830 | Lock Washer A5 | 0.21 | Add to Cart |
| 23 | 240187 | Allen Screw M5x25 | 0.21 | Add to Cart |
| 24 | 851118 | Cable Clamp 11,3/m5 | 3.64 | Add to Cart |
| 25 | 965788 | Mass Cable Assy., | 5.23 | Add to Cart |
| 27 | 241187 | Hex.screw M6x16 | 0.21 | Add to Cart |
| 29 | 851481 | Ignition Coil Bracket 3 | 18.11 | Add to Cart |
| 31 | 945832 | Lock Washer A8 | 0.21 | Add to Cart |
| 32 | 440192 | Allen Screw M8x16 Din 912 | 0.58 | Add to Cart |
| 33 | 851267 | Bracket | 18.11 | Add to Cart |
| 34 | 860734 | Glass Fiber-silicon Sheating 120 | 12.83 | Add to Cart |
| 35 | 860741 | Marking Sleeve 1 | 0.78 | Add to Cart |
| 36 | 860742 | Marking Sleeve 2 | 0.78 | Add to Cart |
| 37 | 860743 | Marking Sleeve 3 | 0.78 | Add to Cart |
| 38 | 860744 | Marking Sleeve 4 | 0.78 | Add to Cart |
| 39 | 265249 | Spark Plug Connector | 78.6 | Add to Cart |
| 40 | 866710 | Clamp 142x2,5 Mm | 0.07 | Add to Cart |
| 41- | 297656 | Spark Plug 12 | 32.34 | Add to Cart |
| 41- | 297656 | Spark Plug 12 | 32.34 | Add to Cart |
| 42 | 251920 | Clamp 279x3,6 Mm | 2.29 | Add to Cart |
| 43 | 847701 | Spacer 6,5/10/11 | 11.2 | Add to Cart |
| 44 | 260130 | Cable Grommet | 0.93 | Add to Cart |
| 46 | 265275 | Faston Connector | 1.72 | Add to Cart |
| 47 | 265210 | Flat Pin Terminal | 0.93 | Add to Cart |
| 55 | 265269 | Connector Housing 6-pole | 14.31 | Add to Cart |
| 56 | 265265 | Connector Housing 6-pole | 7.26 | Add to Cart |
| 62 | 960010 | Shrinkable Hose Imprinted | 12.14 | Add to Cart |
| 63 | 960015 | Shrinkable Hose Imprinted | 10.31 | Add to Cart |
| 64 | 965784 | Mass Cable Assy. | 36.57 | Add to Cart |
| 65 | 853125 | Connector Bracket | 68.94 | Add to Cart |
| 66 | 260135 | Dummy Plug | 0.93 | Add to Cart |
| 68 | 827962 | Washer 6,4 Din 125 | 0.23 | Add to Cart |
| 69 | 866714 | Tie Wrap 142x3,2 Mm | 0.07 | Add to Cart |
