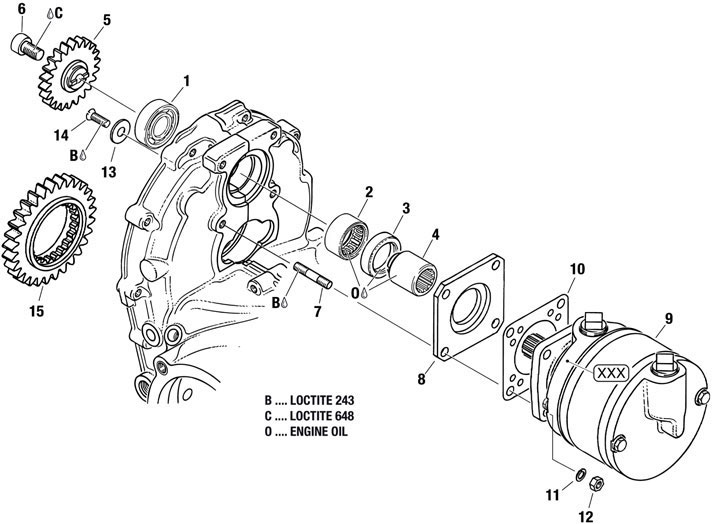

fig. 37-10-00
VACUUM PUMP WITH DRIVE For rotax 912uls
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-8 | 881690 | Vacuum Drive Kit | 835.95 | Add to Cart |
| 1 | 832363 | Ball Bearing 16002 | 277.68 | Add to Cart |
| 2 | 232925 | Needle Sleeve 22x28x12 | 15 | Add to Cart |
| 3 | 831265 | Oil Seal As 22x32x7 | 20.63 | Add to Cart |
| 4 | 847771 | Drive Sleeve | 432.12 | Add to Cart |
| 5 | 834245 | Vacuum Pump Gear 22 T., | 201.63 | Add to Cart |
| 6 | 941527 | Allen Screw M8x14 | 1.72 | Add to Cart |
| 7 | 941080 | Stud M6x20/10 | 3.8 | Add to Cart |
| 8 | 810170 | Attachment Flange | 366.5 | Add to Cart |
| 11 | 827962 | Washer 6,4 Din 125 | 0.23 | Add to Cart |
| 12 | 242214 | Hex.nut M6 | 0.23 | Add to Cart |
| 13 | 227280 | Thrust Washer | 2.29 | Add to Cart |
| 14 | 940316 | Countersunk Screw M5x12 | 0.58 | Add to Cart |
| 15 | 834233 | Drive Gear 29 T., | 71.37 | Add to Cart |
