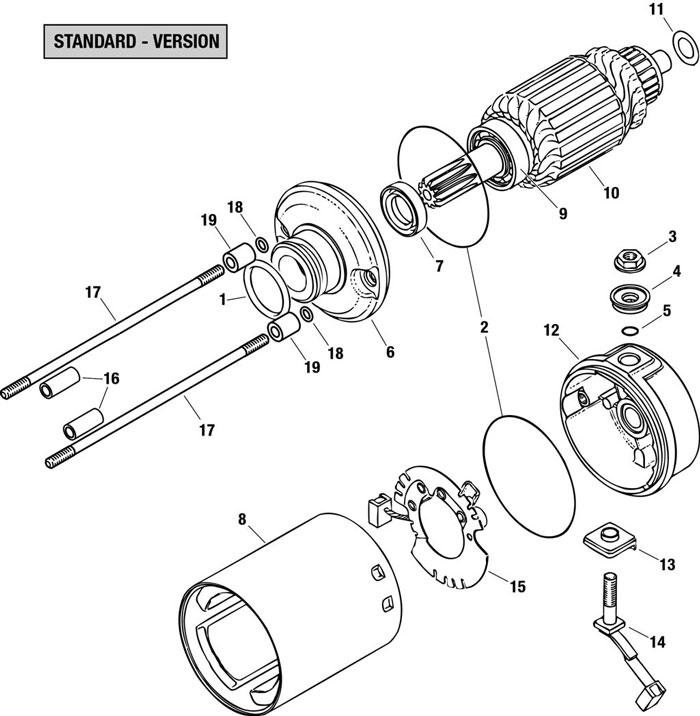

fig. 80-10-00-2
ELECTRIC STARTER, STARTER RELAY For rotax 912uls
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 250140 | O-ring Din 3771-24,4x3,1-n | 2.66 | Add to Cart |
| 2 | 850500 | O-ring 62-1,5 | 0.93 | Add to Cart |
| 3 | 242780 | Combined Nut M6 | 4.22 | Add to Cart |
| 4 | 260800 | Connector Sheath | 4.22 | Add to Cart |
| 5 | 230530 | O-ring 6x1,7 | 0.21 | Add to Cart |
| 7 | 250130 | Oil Seal 15x24x5 | 1.38 | Add to Cart |
| 9 | 232260 | Ball Bearing 6002 Z / 15-32-9 | 32.22 | Add to Cart |
| 11 | 827600 | Shim | 0.93 | Add to Cart |
| 13 | 260810 | Connector Sheath | 4.79 | Add to Cart |
| 14 | 264180 | Carbon Brush Assy., | 20.09 | Add to Cart |
| 15 | 866890 | Brush Holder With Springs | 33.6 | Add to Cart |
| 17 | 840636 | Stud M5x150/16 | 26.18 | Add to Cart |
| 18 | 950420 | O-ring 5x1,5-n | 16.14 | Add to Cart |
| 19 | 847248 | Spacer 5,4/10/12 | 22.06 | Add to Cart |
