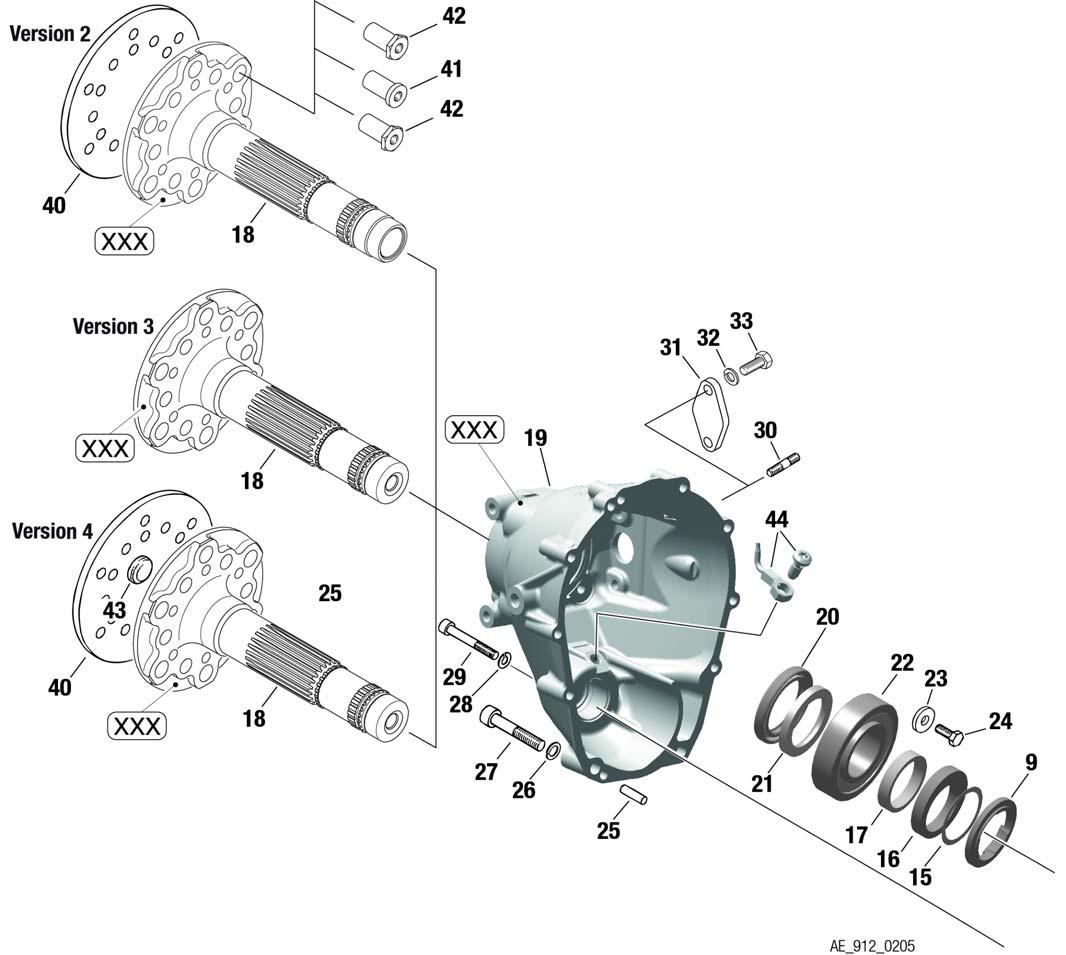

fig. 72-10-00-1
PROPELLER GEAR ASSY. For rotax 912uls
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 47.3 | Add to Cart |
| 3 | 886127 | Gear Set I 2,27 | 1310.4 | Add to Cart |
| 3 | 886517 | Gear Set I 2.43 Narrow. | 873.6 | Add to Cart |
| 3 | 886548 | Gear Set I 2,43 | 1310.4 | Add to Cart |
| 4 | 933362 | Bushing 31x33x29,8 | 138.38 | Add to Cart |
| 5 | 827992 | Thrust Washer 33,2/51/1,2 | 67.38 | Add to Cart |
| 6 | 834233 | Drive Gear 29 T., | 71.37 | Add to Cart |
| 7 | 996888 | Overload Clutch Assy, Retrofit Kit Narrow | 1557.34 | Add to Cart |
| 7 | 996889 | Overload Clutch Retrofit Kit, Wide | 1557.34 | Add to Cart |
| 7 | 926035 | Ring Half | 45.03 | Add to Cart |
| 8 | 996885 | Overload Clutch Assy,narrow | 1603.45 | Add to Cart |
| 8 | 996910 | Overload Clutch Assy. Wide | 1849.34 | Add to Cart |
| 9 | 847787 | Step Collar | 85.7 | Add to Cart |
| 10 | 838216 | Disk Spring B80, 80x41x3 | 17.57 | Add to Cart |
| 11 | 958891 | 958 891 Usr 958 896 | 451.35 | Add to Cart |
| 11 | 958898 | Dog Hub, W/wide Gearset | 349.44 | Add to Cart |
| 14 | 847689 | Spacer 35,2/42/6 | 37.1 | Add to Cart |
| 15- | 927401 | Shim 35,4/43/0,2 | 1.72 | Add to Cart |
| 15- | 927402 | Shim 35,4/43/0,5 | 1.93 | Add to Cart |
| 15- | 927403 | Shim 35,4/43/1,0 | 2.66 | Add to Cart |
| 16 | 848225 | Eccenter | 82.55 | Add to Cart |
| 17 | 847687 | Distance Sleeve 35,2/42/6 | 28.26 | Add to Cart |
| 18- | 937041 | Propeller Shaft Ver 3 | 1186.97 | Add to Cart |
| 18- | 937047 | Propeller Shaft V2 | 1001.02 | Add to Cart |
| 19 | 610363 | Gearbox Cover | 960.91 | Add to Cart |
| 20 | 950470 | Oil Seal As 40x55x7 | 79.41 | Add to Cart |
| 21 | 926022 | Spacer Ring 36/50/5,5 | 31.9 | Add to Cart |
| 21 | 926022 | Spacer Ring 36/50/5,5 | 31.9 | Add to Cart |
| 22 | 832587 | Ball Bearing 6207e Tnh, 35-72-17 | 296.78 | Add to Cart |
| 23 | 944320 | Washer 7,2/18,8/3 | 2.08 | Add to Cart |
| 24 | 941760 | Hex. Screw M7x16 Din 933 | 0.93 | Add to Cart |
| 25 | 429230 | Dowel 6x20 | 0.37 | Add to Cart |
| 26 | 944131 | Washer 8 Mm | 0.78 | Add to Cart |
| 27 | 841562 | Allen Screw M8 X 45 | 1.14 | Add to Cart |
| 28 | 827962 | Washer 6,4 Din 125 | 0.23 | Add to Cart |
| 29 | 241823 | Allen Screw M6x45 Din 912 | 0.78 | Add to Cart |
| 30 | 940363 | Stud M8x23/14 | 1.93 | Add to Cart |
| 31 | 926151 | Cover | 28.59 | Add to Cart |
| 32 | 945832 | Lock Washer A8 | 0.21 | Add to Cart |
| 33 | 940592 | Hex.screw M8x20 | 0.93 | Add to Cart |
| 34 | 950200 | Oil Seal 30x52x7 | 82.06 | Add to Cart |
| 35 | 430175 | O-ring 46x3 | 4.58 | Add to Cart |
| 36 | 810301 | Oil Inlet Flange | 335.22 | Add to Cart |
| 37 | 810306 | Nla | 78.79 | Add to Cart |
| 38 | 232246 | Roller Bearing Rnu 205 Ecp/pab4l | 92.01 | Add to Cart |
| 39 | 945820 | Retaining Ring 52x2 | 2.08 | Add to Cart |
| 40 | 827837 | Cover Disk | 136.93 | Add to Cart |
| 41 | 842634 | Round-neck Nut Set M8 | 74.55 | Add to Cart |
| 42 | 842639 | Hex.neck Nut Set 5/16-20 Un | 46.31 | Add to Cart |
| 42 | 842639 | Hex.neck Nut Set 5/16-20 Un | 46.31 | Add to Cart |
| 43 | 244980 | Sealing Cover | 18.66 | Add to Cart |
