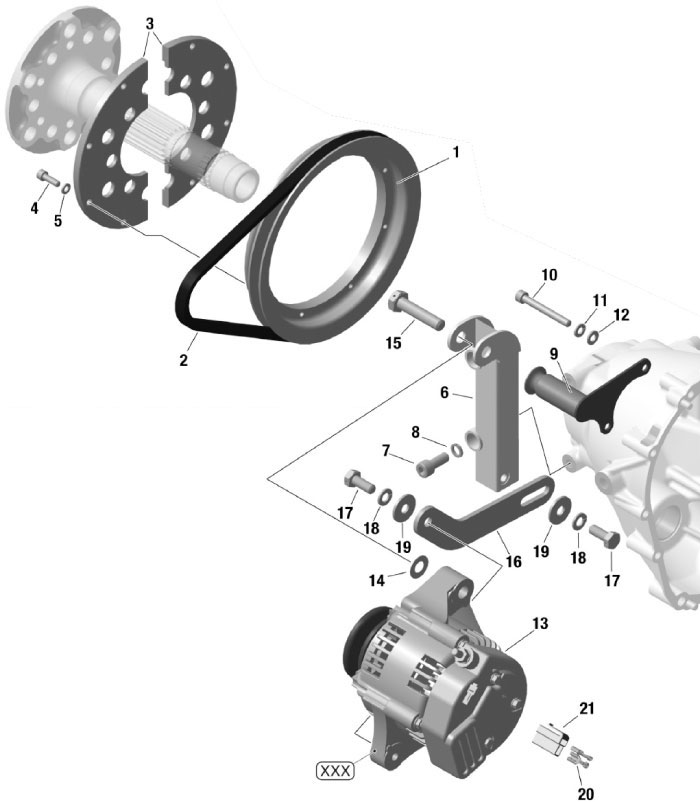

fig. 24-30-00
EXTERNAL GENERATOR For rotax 912uls
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-21 | 887254 | Alternator Kit, 40a/12v | 2243.32 | Add to Cart |
| 1 | 980590 | V-belt Pulley | 319.85 | Add to Cart |
| 2 | 980400 | V-belt 9,5x675 | 9.87 | Add to Cart |
| 3 | 980605 | Pulley Carrier Each | 499.62 | Add to Cart |
| 4 | 840514 | Allen Screw M5x16 | 0.21 | Add to Cart |
| 5 | 945830 | Lock Washer A5 | 0.21 | Add to Cart |
| 6 | 953223 | Alternator Bracket Assy. | 98.06 | Add to Cart |
| 7 | 240072 | Allen Screw M8x20 | 0.58 | Add to Cart |
| 8 | 845310 | Lock Washer Vhz 8 | 0.58 | Add to Cart |
| 9 | 953235 | Alternator Support Assy. | 488.36 | Add to Cart |
| 10 | 241762 | Allen Screw M6x50 | 0.93 | Add to Cart |
| 11 | 945831 | Lock Washer A6 Din 128 | 0.21 | Add to Cart |
| 12 | 827962 | Washer 6,4 Din 125 | 0.23 | Add to Cart |
| 13 | 887251 | Alternator F3a | 1315.57 | Add to Cart |
| 14 | 927952 | Thrust Washer 10,1/20/0,5 | 4.79 | Add to Cart |
| 15 | 941637 | Hex. Screw M10x45-sk-din 931 | 81.48 | Add to Cart |
| 16 | 953241 | Tension Bar | 33.79 | Add to Cart |
| 17 | 940596 | Hex. Screw M8x20-sk-din 933 | 20.29 | Add to Cart |
| 18 | 945832 | Lock Washer A8 | 0.21 | Add to Cart |
| 19 | 227936 | Washer 8,4 | 0.21 | Add to Cart |
| 20 | 864011 | Faston Connector 6,3x0,8 | 1.14 | Add to Cart |
| 21 | 265255 | Connector Housing 2-pole | 7.8 | Add to Cart |
