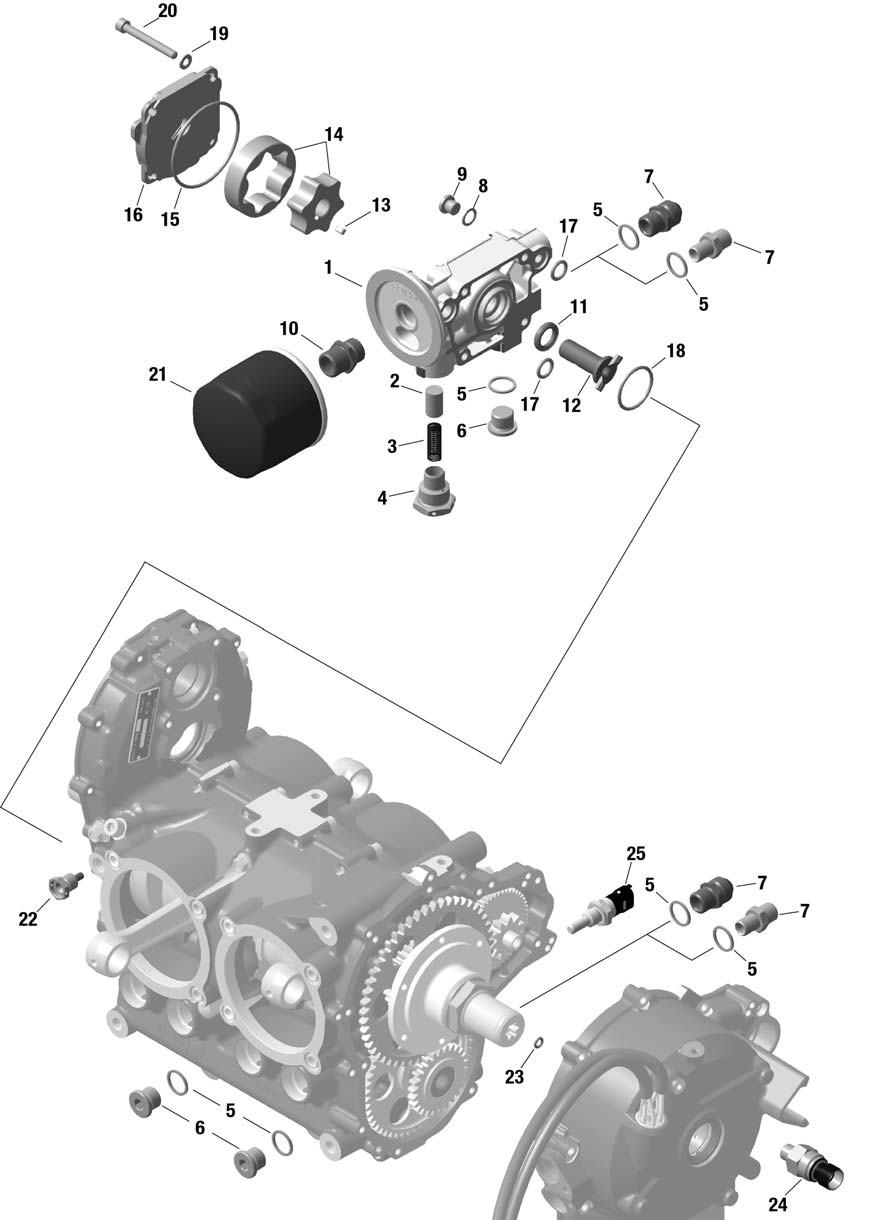

fig. 79-20-00-2
OIL PUMP ASSY., OIL FILTER, OIL TEMPERATURE SENSOR, OIL PRESSURE SENSOR For rotax 912is
Click on Number to order Part
Your cart is Empty
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|
Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 811463 | Oil Pump Housing | 564.18 | Add to Cart |
| 2 | 856330 | Regulating Piston | 45.03 | Add to Cart |
| 3 | 838125 | Compression Spring L65,6 | 4.38 | Add to Cart |
| 4 | 640850 | Plug Screw M22x1,5 | 69.13 | Add to Cart |
| 5 | 430622 | Gasket Ring A 16x22 | 1.72 | Add to Cart |
| 6 | 240234 | Plug Screw M16x1,5 | 4.01 | Add to Cart |
| 7 | 956655 | Adapter M18x1.5/ M16x1,5 | 103.03 | Add to Cart |
| 8 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.18 | Add to Cart |
| 9 | 641733 | Plug Screw M10x1 | 11.4 | Add to Cart |
| 10 | 924424 | Oil Filter Nipple | 30.33 | Add to Cart |
| 11 | 430102 | Oil Seal A 14x22x4 Fpm | 13.91 | Add to Cart |
| 12 | 837292 | Oil Pump Shaft | 132.8 | Add to Cart |
| 13 | 246580 | Key A 4x4x8 Din 6885 | 8.88 | Add to Cart |
| 14 | 888821 | Pressure Inner And Outer Rotor | 130.44 | Add to Cart |
| 15 | 830372 | O-ring 63-2,5 | 4.22 | Add to Cart |
| 16 | 911713 | Oil Pump Cover | 193.59 | Add to Cart |
| 17 | 250460 | O-ring 11-2,7 | 1.14 | Add to Cart |
| 18 | 950410 | O-ring 30x2,5 | 1.61 | Add to Cart |
| 19 | 827962 | Washer 6,4 Din 125 | 0.23 | Add to Cart |
| 20 | 241762 | Allen Screw M6x50 | 0.93 | Add to Cart |
| 21 | 825016 | Oil Filter, Rotax | 28.01 | Add to Cart |
| 22 | 640866 | Magnetic Drain Plug M12x1,5 | 145.44 | Add to Cart |
| 24 | 664365 | Pressure Sensor 10 | 489.11 | Add to Cart |
| 25 | 965537 | Temperature Sensor | 257.9 | Add to Cart |
Showing 1 to 24 of 24 entries
