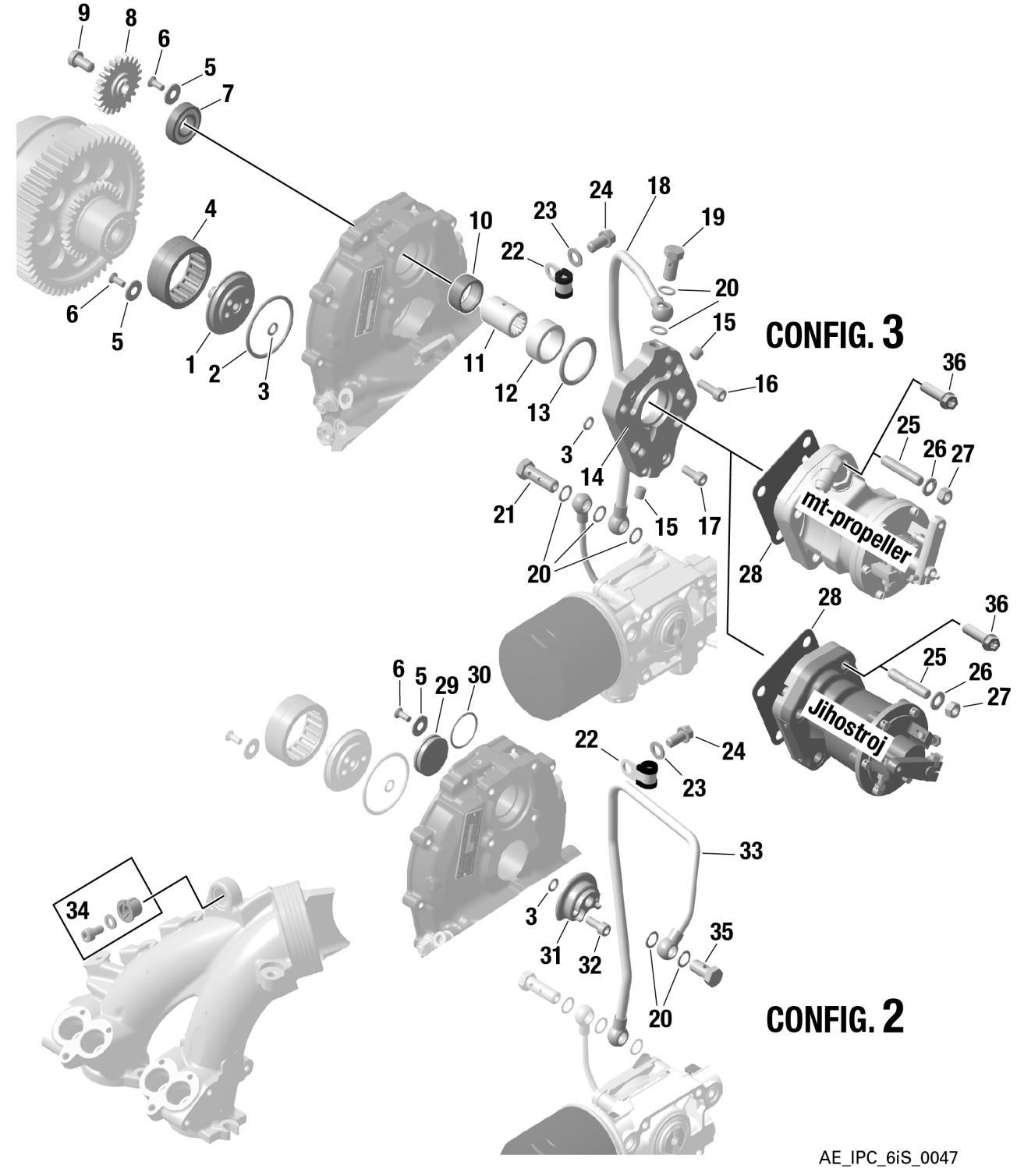

fig. 61-20-00
ARRANGEMENT FOR CONSTANT SPEED AND FIXED PITCH PROPELLER For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 810310 | Oil Inlet Flange | 302.12 | Add to Cart |
| 2 | 430175 | O-ring 46x3 | 4.58 | Add to Cart |
| 3 | 830415 | O-ring 7x2 | 1.35 | Add to Cart |
| 5 | 227280 | Thrust Washer | 2.29 | Add to Cart |
| 6 | 940316 | Countersunk Screw M5x12 | 0.58 | Add to Cart |
| 7 | 832363 | Ball Bearing 16002 | 277.68 | Add to Cart |
| 8 | 834245 | Vacuum Pump Gear 22 T., | 201.63 | Add to Cart |
| 9 | 941522 | Allen Screw M8x16 | 0.93 | Add to Cart |
| 10 | 232925 | Needle Sleeve 22x28x12 | 15 | Add to Cart |
| 11 | 847773 | Drive Sleeve | 433.01 | Add to Cart |
| 12 | 847802 | Spacer 25/31,95/13 | 80.89 | Add to Cart |
| 13 | 950380 | O-ring 32x4 | 5.06 | Add to Cart |
| 14 | 810070 | Governor Flange | 365.98 | Add to Cart |
| 15 | 941611 | Screw Plug M8x1 | 4.38 | Add to Cart |
| 16 | 241935 | Allen Screw M6x20 | 0.58 | Add to Cart |
| 17 | 241237 | Allen Screw M6x16 | 0.21 | Add to Cart |
| 18 | 956460 | Pressure Oil Line Assy., | 290.86 | Add to Cart |
| 19 | 940876 | Banjo Bolt M10x1x23 | 62.71 | Add to Cart |
| 20 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.18 | Add to Cart |
| 21 | 940877 | Banjo Bolt W/ext Thread | 101.02 | Add to Cart |
| 22 | 853418 | Cable Clamp | 24.23 | Add to Cart |
| 23 | 944131 | Washer 8 Mm | 0.78 | Add to Cart |
| 24 | 440854 | Hex/torx-flange Screw M8x16 | 1.51 | Add to Cart |
| 25 | 840711 | Stud M8 X 21 | 36.06 | Add to Cart |
| 26 | 945832 | Lock Washer A8 | 0.21 | Add to Cart |
| 27 | 942674 | Hex. Nut M8 (ws 11mm) | 4.58 | Add to Cart |
| 28 | 931372 | Gasket | 295.33 | Add to Cart |
| 29 | 944222 | Blinding Shim | 19.1 | Add to Cart |
| 30 | 430061 | O-ring 26.7 X 1.8 | 0.93 | Add to Cart |
| 31 | 810321 | Oil Inlet Flange Adaptor | 210.21 | Add to Cart |
| 32 | 241237 | Allen Screw M6x16 | 0.21 | Add to Cart |
| 33 | 956465 | Gearbox Oil Line Assy | 181.5 | Add to Cart |
| 35 | 241073 | Banjo Bolt M10x1x19 | 40.88 | Add to Cart |
