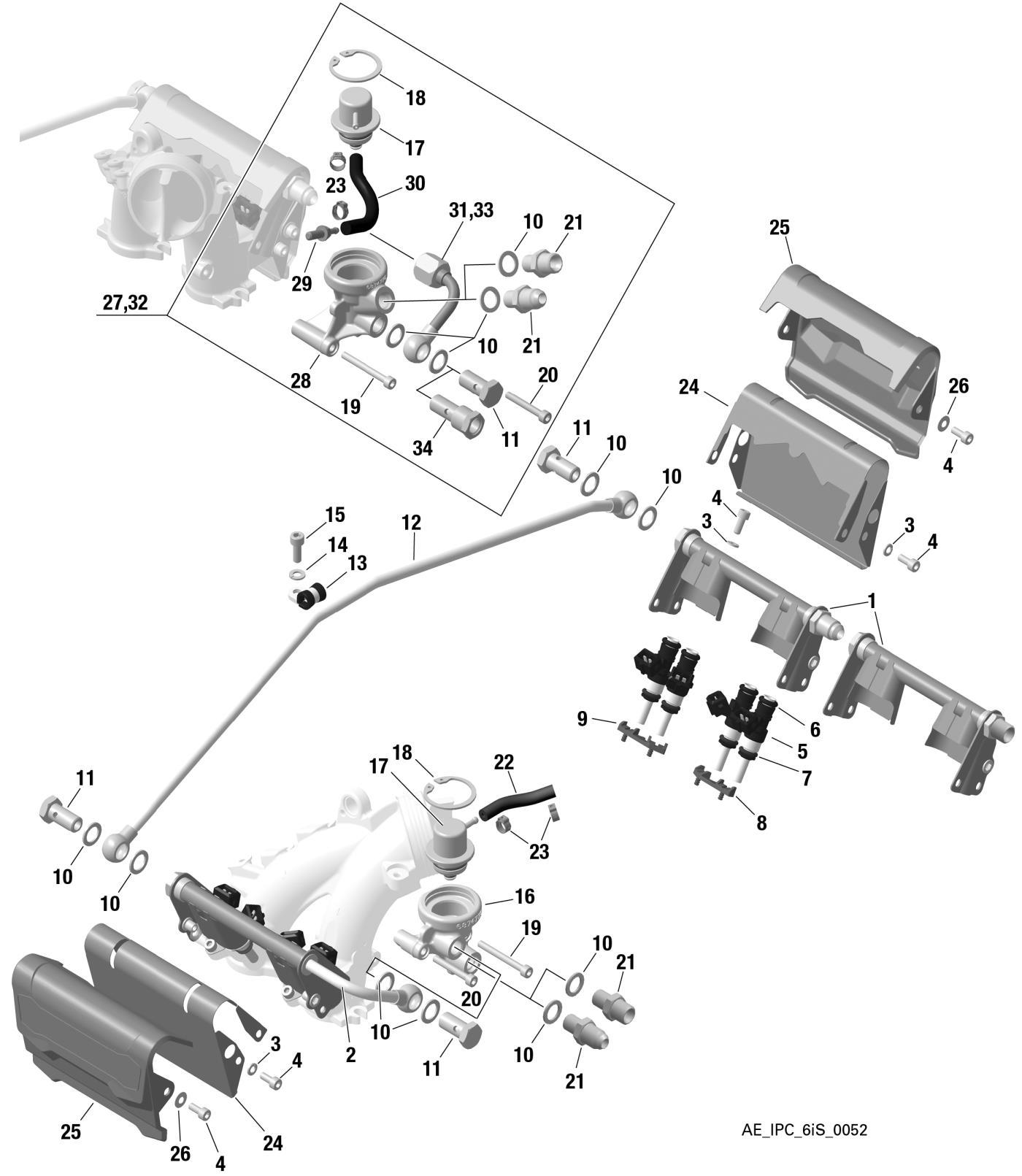

fig. 73-10-00-C
FUEL INJECTOR, FUEL RAIL, PRESSURE REGULATOR, FUEL RAIL COVER For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 3 | 945830 |
Lock Washer A5 (Superceded : 945750) |
0.17 | Add to Cart |
| 4 | 640542 | Allen Screw M5x12 Din 912 | 0.32 | Add to Cart |
| 5 | 874780 | Fuel Injector | 211.29 | Add to Cart |
| 6 | 831060 | O-ring 7,52x3,51 | 15.7 | Add to Cart |
| 7 | 831050 | O-ring 8,54x3,1 Viton B70 | 7.45 | Add to Cart |
| 8 | 860042 | Damper Left | 4.04 | Add to Cart |
| 9 | 860040 | Damper Right | 4.04 | Add to Cart |
| 10 | 250646 | Gasket A 12x18-cu Din 7603 | 2.21 | Add to Cart |
| 12 | 874802 | Fuel Hose Assy. | 189.97 | Add to Cart |
| 13 | 853412 | Cable Clamp #8 | 6.49 | Add to Cart |
| 14 | 945831 | Lock Washer A6 Din 128 | 0.17 | Add to Cart |
| 15 | 241239 | Allen Screw M6x16 | 4.04 | Add to Cart |
| 16 | 874770 | Pressure Regulator Housing | 114.41 | Add to Cart |
| 17 | 889262 | Fuel Pressure Regulator Assy. | 368.49 | Add to Cart |
| 18 | 845650 | Retaining Ring 36x1,5 | 2.11 | Add to Cart |
| 19 | 941792 | Allen Screw M5x45 | 1.32 | Add to Cart |
| 20 | 841502 | Allen Screw M5x35 | 0.95 | Add to Cart |
| 21 | 856821 | Adapter M14x1,5/m12x1,5 | 43.2 | Add to Cart |
| 21 | 840700 | Adapter 9/16 Unf/m12x1,5 | 77.04 | Add to Cart |
| 22 | 960631 | Tube 60 +/-3 Mm | 7.99 | Add to Cart |
| 23 | 853653 | 1 Ear Clmap 8.3-10mm | 1.5 | Add to Cart |
| 24 | 975090 | Heat Shield | 9.26 | Add to Cart |
| 25 | 975069 | Covering Fuel Rail | 28.91 | Add to Cart |
| 26 | 939445 | Spring Washer 12x5.2x0.5 | 1.49 | Add to Cart |
| 27 | 889275 | Fuel Pressure Damper Unf - Packaged | 979.5 | Add to Cart |
| 29 | 840675 | Hose Nipple M6 | 105.8 | Add to Cart |
| 32 | 889277 | Fuel Pressure Damper Metric - Packaged | 943.4 | Add to Cart |
| 34 | 841131 | Sensor Banjo Bolt - M12x1,5 | 45.92 | Add to Cart |
