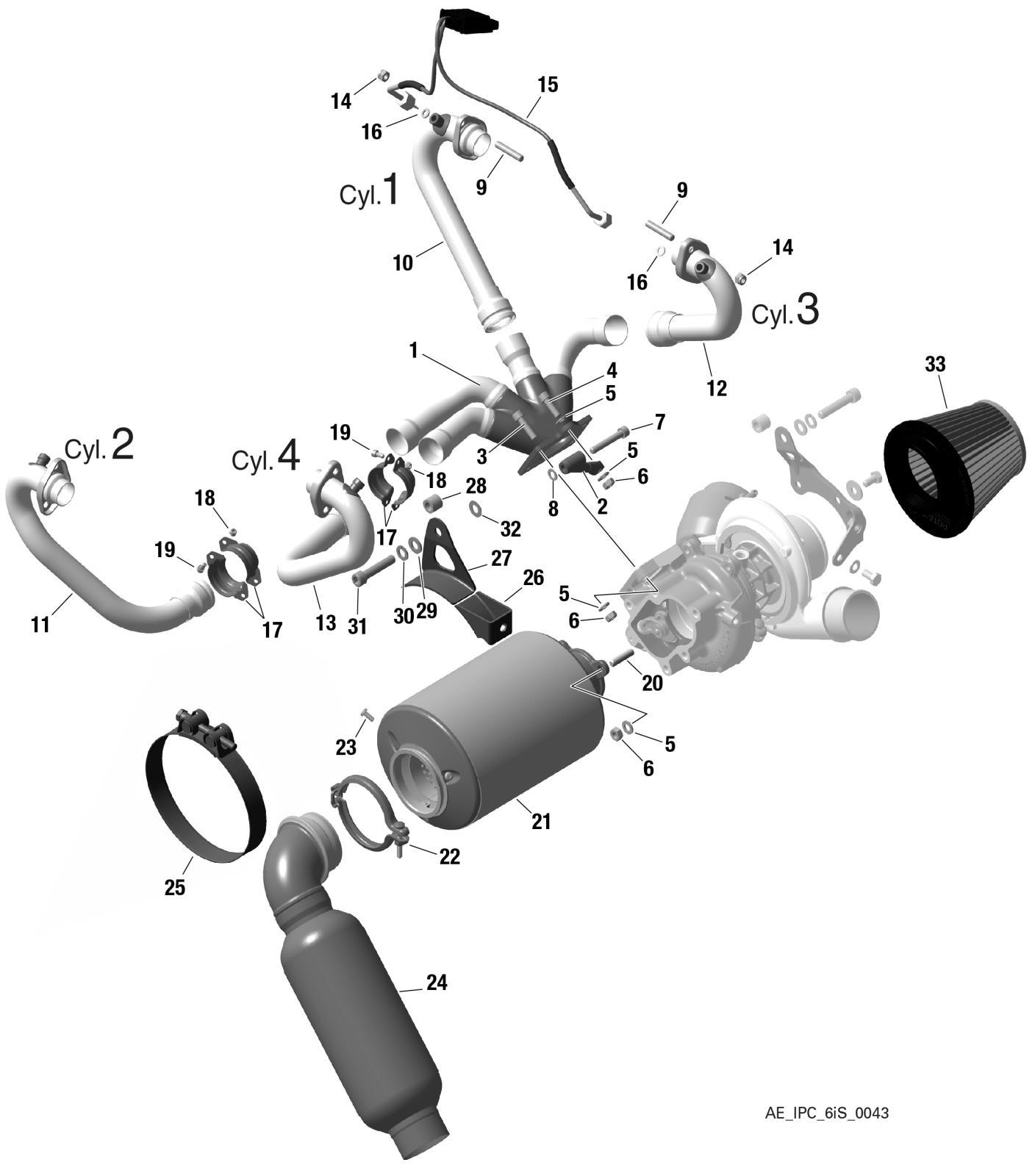

fig. 78-10-00-A
EXHAUST SYSTEM, EXHAUST TEMPERATURE SENSOR For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 979563 | Exhaust Manifold | 1537.42 | Add to Cart |
| 2 | 953306 | Manifold Bracket Assy. | 254.43 | Add to Cart |
| 3 | 840993 | Allen Screw M8x30 | 1.59 | Add to Cart |
| 5 | 250313 | Washer 8,4 Stainless Steel | 1.54 | Add to Cart |
| 6 | 242203 | Hex.nut M8 Stainless Steel | 1.98 | Add to Cart |
| 7 | 440107 | Allen Screw M8x50 Din 912 | 2.23 | Add to Cart |
| 8 | 926402 | Washer 8,4/15/1,5 | 4.14 | Add to Cart |
| 9 | 940368 | Stud M8x23/20 | 7.1 | Add to Cart |
| 10 | 979502 | Exhaust Pipe Cyl 1 | 675.02 | Add to Cart |
| 11 | 979512 | Exhaust Pipe Cyl 2 | 808.2 | Add to Cart |
| 12 | 979522 | Exhaust Pipe Cyl 3 | 718.53 | Add to Cart |
| 13 | 979533 | Exhaust Pipe Cyl 4 | 808.2 | Add to Cart |
| 14 | 842950 | Lock Nut Din 14441 M8-sw12 | 3 | Add to Cart |
| 15 | 866264 |
Temperature Sensor (Superceded : 866262) |
996.42 | Add to Cart |
| 16 | 244213 | Washer 6,4 | 1.24 | Add to Cart |
| 17 | 979570 | Exhaust Pipe Clamp | 25.92 | Add to Cart |
| 18 | 901442 | Hex Nut Iso 7042 - M5 - A2 | 0.32 | Add to Cart |
| 19 | 240153 | Allen Screw M5x10 Iso 4762-a2=70 | 0.32 | Add to Cart |
| 20 | 940173 | Stud M8x19,5/13 | 8.01 | Add to Cart |
| 21 | 979490 | Muffler Assy | 1560 | Add to Cart |
| 22 | 651873 | Clamp Assy, 83 Mm | 50.15 | Add to Cart |
| 23 | 941930 | Screw Din 7500 - Pe - M5x12 | 0.5 | Add to Cart |
| 24 | 481570 | Exhaust Elbow Packed | 981.87 | Add to Cart |
| 25 | 851445 | Clamp 140-148 | 105.8 | Add to Cart |
| 27 | 851680 | Exhaust Bracket | 53.84 | Add to Cart |
| 28 | 847841 | Spacer 10,5/17/15 | 11.89 | Add to Cart |
| 29 | 927411 | Washer 10,5 | 0.47 | Add to Cart |
| 30 | 945833 |
Lock Washer A10 (Superceded : 945753) |
0.27 | Add to Cart |
| 31 | 640572 | Allen Screw M10x50 | 4.29 | Add to Cart |
| 32 | 927953 | Thrust Washer 10,1/20/1,0 | 5.36 | Add to Cart |
