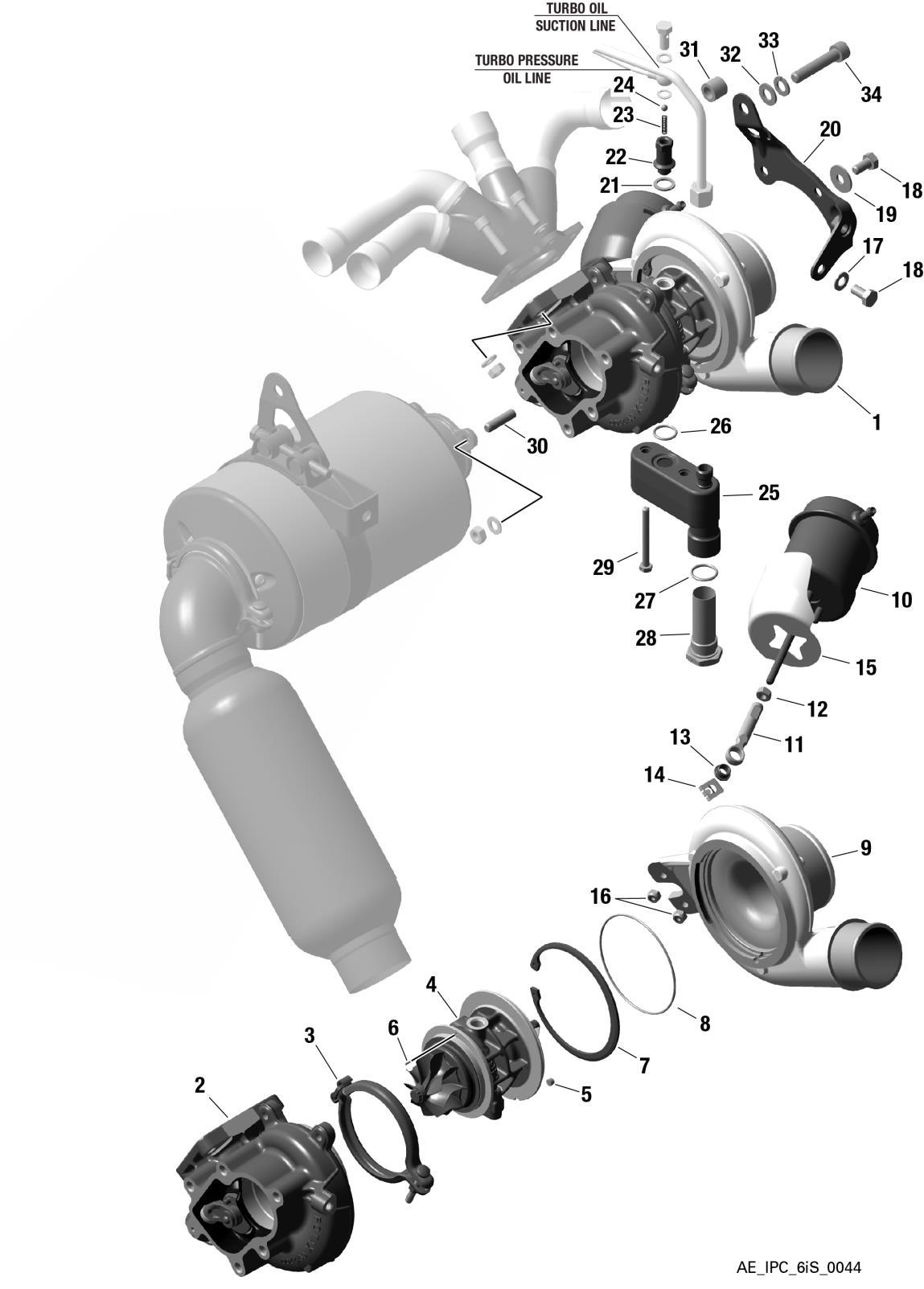

fig. 78-10-00-B
TURBOCHARGER For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 893101 | Covering Fuelrail 100y | 161.94 | Add to Cart |
| 3 | 651873 | Clamp Assy, 83 Mm | 78.27 | Add to Cart |
| 8 | 850540 | O-ring 83-2 | 5.06 | Add to Cart |
| 14 | 845005 | Retainer Clip | 87.93 | Add to Cart |
| 16 | 842041 | Lock Nut M6 | 0.21 | Add to Cart |
| 17 | 250313 | Washer 8,4 Stainless Steel | 0.27 | Add to Cart |
| 18 | 940583 | Hex. Screw M8x16 Stainless Steel | 1.98 | Add to Cart |
| 19 | 626333 | Washer 8.4 Din 9021 A2 | 0.67 | Add to Cart |
| 20 | 851283 | Turbocharger Bracket - Unf | 229.59 | Add to Cart |
| 20 | 851299 | Turbocharger Bracket - Metric | 227.56 | Add to Cart |
| 21 | 250646 | Gasket A 12x18-cu Din 7603 | 0.3 | Add to Cart |
| 23 | 239131 | Compression Spring 22,0 | 2.18 | Add to Cart |
| 24 | 232441 | Ball 5,556 Mm | 0.93 | Add to Cart |
| 25 | 656770 | Oil Sump Assy | 336.19 | Add to Cart |
| 26 | 430225 | O-ring 15,9-2,3 | 1.31 | Add to Cart |
| 27 | 250057 | O-ring Din 3771-18x2,5-n, Fpm 75 | 0.51 | Add to Cart |
| 28 | 640860 | Plug Screw Assy M22 X 1.5 | 145.45 | Add to Cart |
| 29 | 640600 | Hex Bolt, M6x55 | 14.1 | Add to Cart |
| 30 | 940173 | Stud M8x19,5/13 | 5.75 | Add to Cart |
| 31 | 847841 | Spacer 10,5/17/15 | 33.59 | Add to Cart |
| 32 | 927411 | Washer 10,5 | 0.21 | Add to Cart |
| 33 | 945833 | Lock Washer A10 | 0.45 | Add to Cart |
| 34 | 640572 | Allen Screw M10x50 | 10.85 | Add to Cart |
