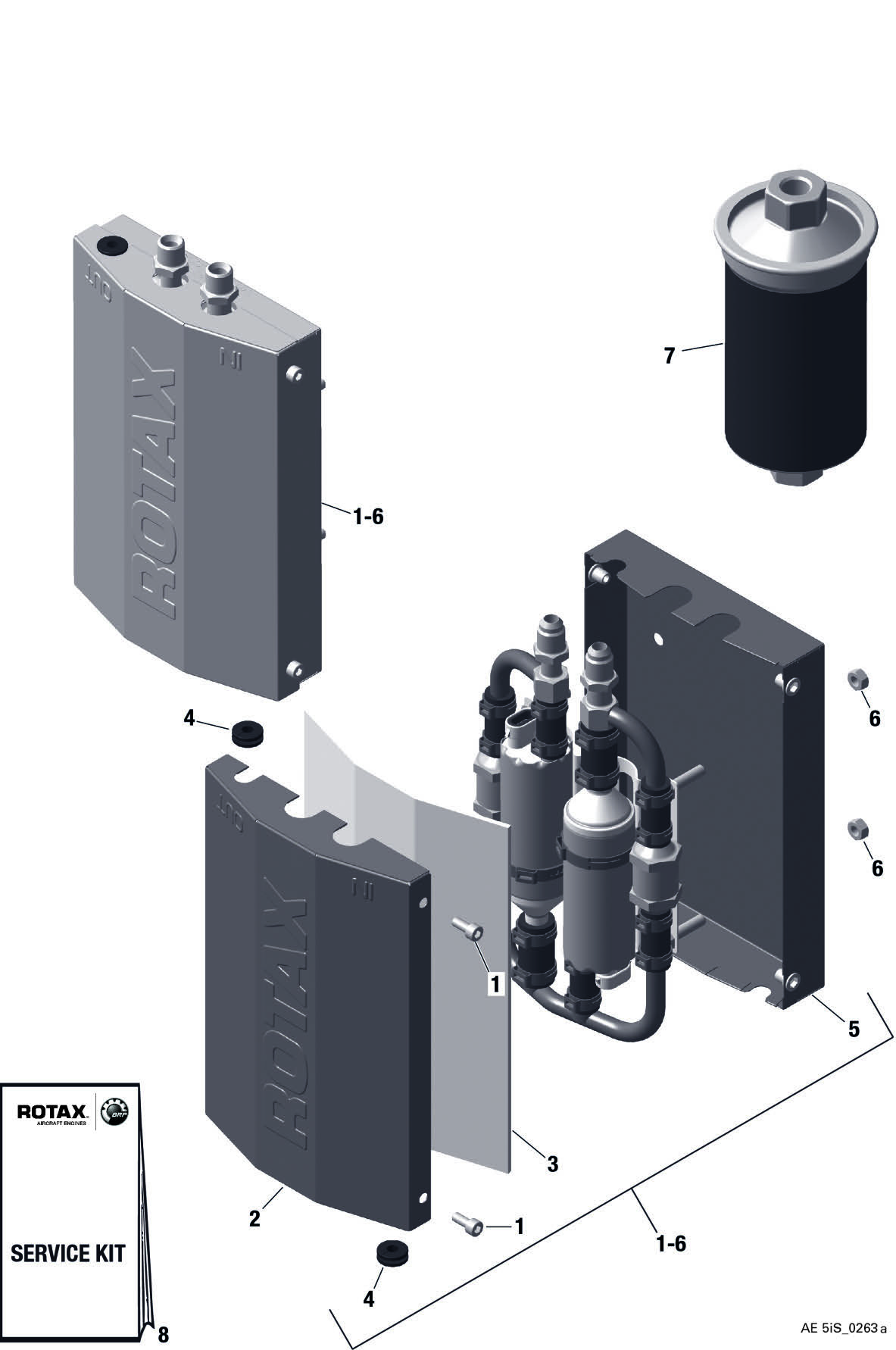

fig. 73-10-00-d
FUEL PUMP ASSY. For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1–6 | 889697 | Fuel Pump Assy - Unf | 2769.06 | Add to Cart |
| 1–6 | 889699 | Fuel Pump Assy. Metric | 2771.89 | Add to Cart |
| 1 | 640542 | Allen Screw M5x12 Din 912 | 0.2 | Add to Cart |
| 2 | 911790 | Cover | 114.54 | Add to Cart |
| 3 | 975055 | Heat Protection Mat | 20.06 | Add to Cart |
| 4 | 201160 | Rubber Grommet | 4.21 | Add to Cart |
| 5 | 911700 | Housing | 118.09 | Add to Cart |
| 6 | 242031 | 242 031 Use 242 032 | 0.92 | Add to Cart |
| 7 | 874060 | Fuel Filter | 72.55 | Add to Cart |
| 8 | 889537 | Fuel Pump Service Kit | 204.8 | Add to Cart |
| 9 | 889732 | Fuel Pump Kit - 916is | 1601.6 | Add to Cart |
