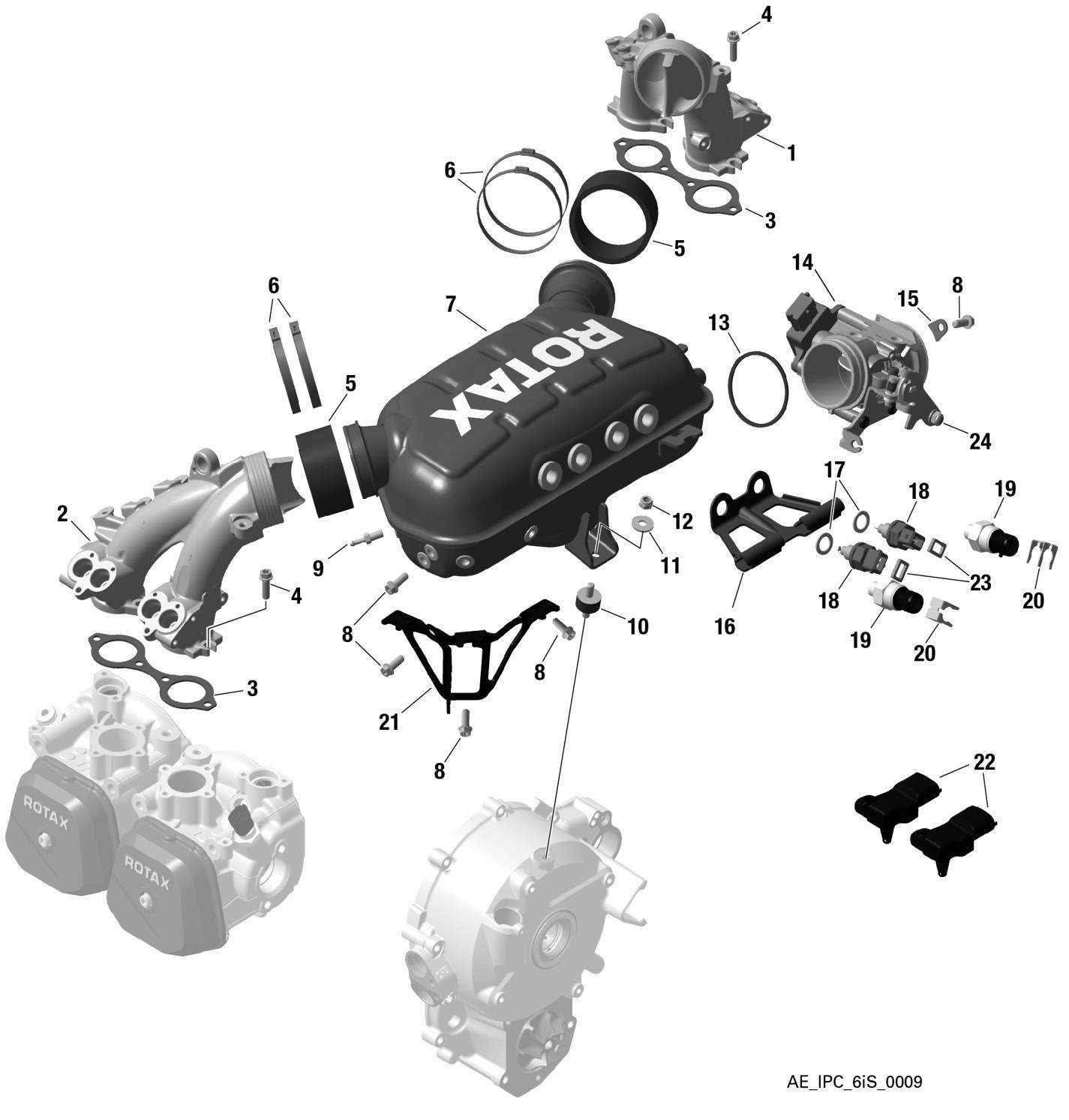

fig. 73-10-00-A
INTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 667403 | Intake Manifold 1/3 | 684.23 | Add to Cart |
| 2 | 667406 | Intake Manifold 2/4 | 415.56 | Add to Cart |
| 3 | 850091 | Isolating Flange | 11.76 | Add to Cart |
| 4 | 440207 | Hex./torx-flange Screw M6x20-sw8/t30 | 0.64 | Add to Cart |
| 5 | 460421 | Connecting Socket | 16.53 | Add to Cart |
| 6 | 953093 | Clamp 66-69 Mm | 6.38 | Add to Cart |
| 8 | 440164 | Hex. Torx-flange Screw M6x16-sw8/t30 Mk | 0.84 | Add to Cart |
| 9 | 840672 | Hose Nipple M6 | 71.29 | Add to Cart |
| 10 | 860700 | Rubber 20x10xm6 | 11.76 | Add to Cart |
| 11 | 827968 | Washer 6,4 Din 9021 | 0.2 | Add to Cart |
| 12 | 842042 | Lock Nut M6 | 0.43 | Add to Cart |
| 13 | 850020 | Rubber Ring | 5.25 | Add to Cart |
| 14 | 685056 | Throttle Body Socket Assy. | 657.32 | Add to Cart |
| 15 | 953020 | Separating Plate | 1.57 | Add to Cart |
| 16 | 651780 | Connectory Bracket | 73 | Add to Cart |
| 18 | 222421 | Temperature Sensor | 76.67 | Add to Cart |
| 19 | 664364 | Pressure Sensor 2,0 | 578.06 | Add to Cart |
| 20 | 638140 | Clamp Map Sensor | 49.82 | Add to Cart |
| 21 | 951564 | Connector Bracket | 110.75 | Add to Cart |
| 22 | 874654 | Pressure-/temp. Sensor | 428.97 | Add to Cart |
| 23 | 850610 | Connetor Gasket | 10.34 | Add to Cart |
| 24 | 440000 | Fixing Screw Assy | 101.15 | Add to Cart |
