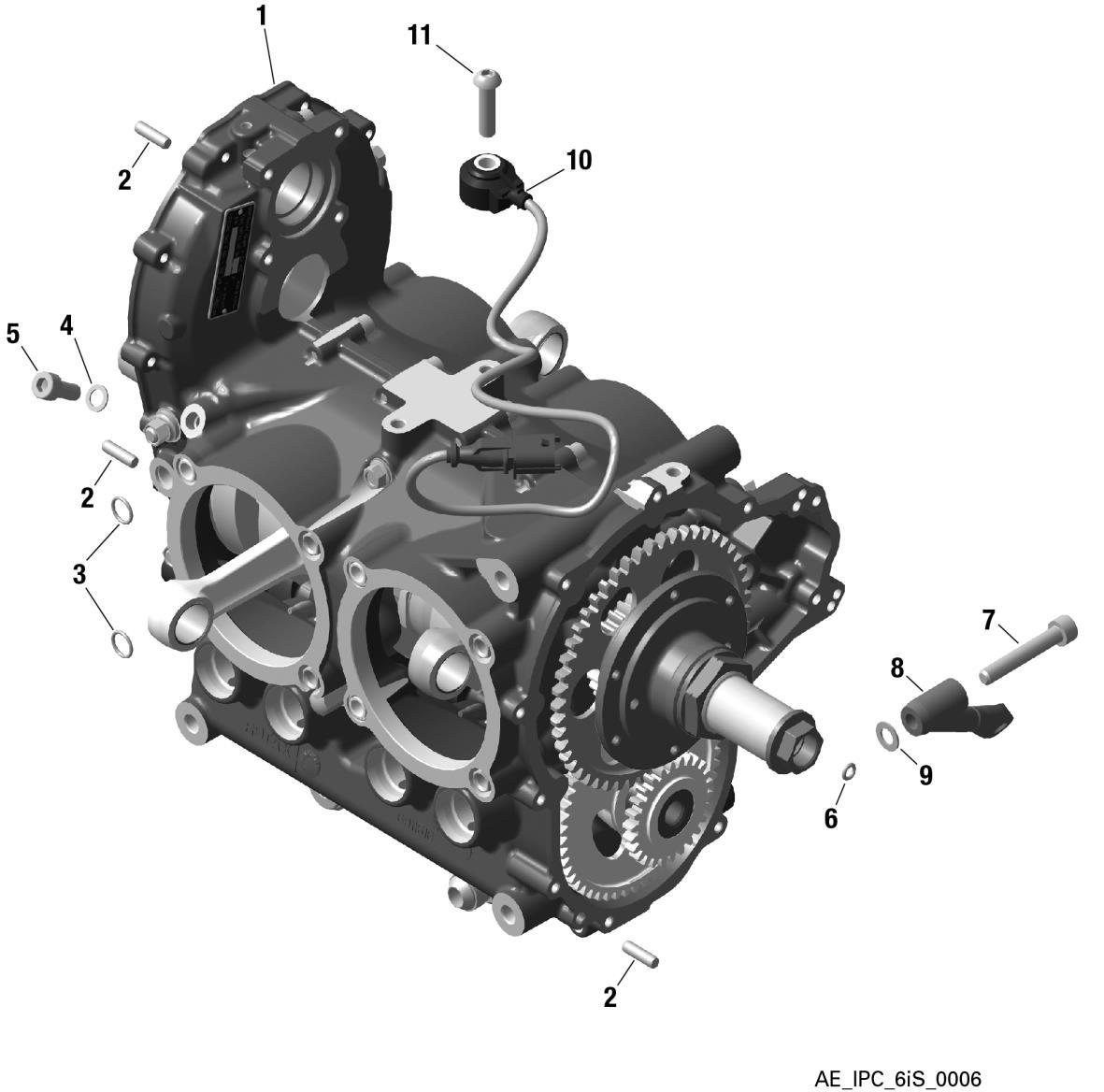

fig. 72-20-00-C
CRANKCASE For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 2 | 429230 | Dowel 6x20 | 2.83 | Add to Cart |
| 3 | 431570 | O-ring 10,82x1.78-n | 0.69 | Add to Cart |
| 4 | 950141 | Gasket Ring A 8x13 Din 7603 | 1.19 | Add to Cart |
| 5 | 240072 | Allen Screw M8x20 | 1.54 | Add to Cart |
| 6 | 831929 | O-ring 5x2 | 4.96 | Add to Cart |
| 7 | 440107 | Allen Screw M8x50 Din 912 | 2.23 | Add to Cart |
| 8 | 953306 | Manifold Bracket Assy. | 254.43 | Add to Cart |
| 9 | 926401 | Washer 8,4/15/1 | 3.87 | Add to Cart |
| 10 | 866270 | Knock Sensor | 302.95 | Add to Cart |
| 11 | 570661 | Lens Head Screw Iso 7380-m8x30-8.8 | 0.77 | Add to Cart |
