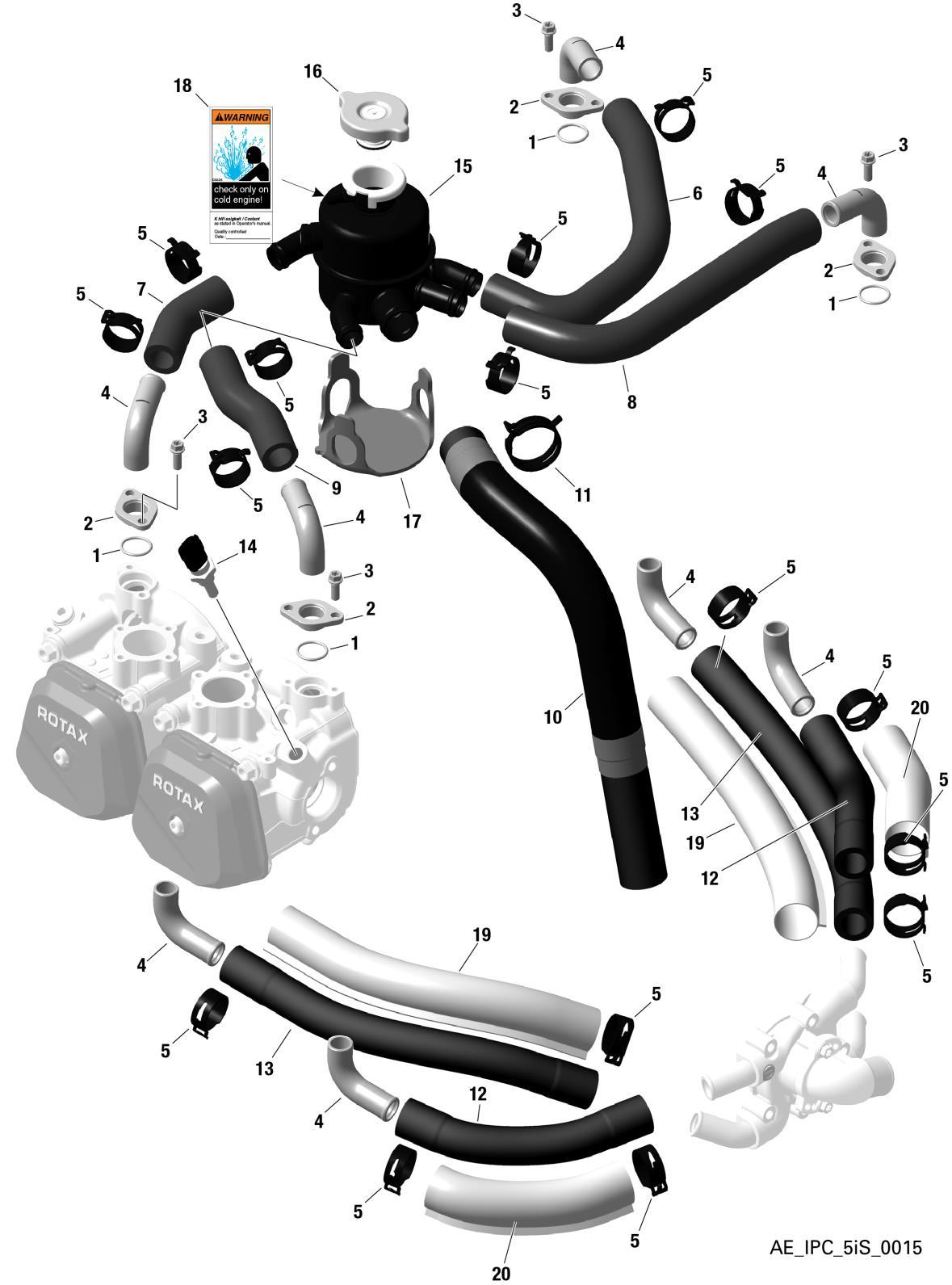

fig. 75-20-00-B
EXPANSION TANK WITH HOSES AND CONNECTIONS For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 950180 | O-ring 19-2 | 15.42 | Add to Cart |
| 2 | 922303 | Flange | 64.67 | Add to Cart |
| 3 | 440162 | Hex. Torx-flange Screw M6x16-sw8/t30 | 0.32 | Add to Cart |
| 4 | 922236 | Bent Socket 80 Degrees | 22.72 | Add to Cart |
| 5 | 851645 | Spring Type Clamp 25 | 6.06 | Add to Cart |
| 5 | 851645 | Spring Type Clamp 25 | 6.06 | Add to Cart |
| 5 | 851641 | Spring Type Clamp 26 | 6.06 | Add to Cart |
| 6 | 822420 | Form Hose 1 | 26.06 | Add to Cart |
| 6 | 822423 | Form Hose 1 | 95.29 | Add to Cart |
| 7 | 822433 | Form Hose 2 | 53.06 | Add to Cart |
| 7 | 822430 | Form Hose 2 | 6.06 | Add to Cart |
| 8 | 822443 | Form Hose 3 | 83.76 | Add to Cart |
| 8 | 822440 | Form Hose 3 | 25.29 | Add to Cart |
| 9 | 822448 | Form Hose 4 | 49.5 | Add to Cart |
| 9 | 822445 | Form Hose 4 | 13.02 | Add to Cart |
| 10 | 822454 | Form Hose | 129.08 | Add to Cart |
| 10 | 822450 | Form Hose | 52.13 | Add to Cart |
| 11 | 951350 | Self Compensating Clamp 35 | 5.62 | Add to Cart |
| 12 | 922368 | Water Tube 180mm +/- 3mm | 56.86 | Add to Cart |
| 12 | 922360 | 180 Mm Hose | 22.64 | Add to Cart |
| 13 | 922369 | Water Tube 280mm +/- 3mm | 95.29 | Add to Cart |
| 13 | 922362 | 280 Mm Hose | 35.6 | Add to Cart |
| 14 | 965537 | Temperature Sensor | 223.96 | Add to Cart |
| 15 | 922668 | Expansion Tank | 402.63 | Add to Cart |
| 16 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 83.58 | Add to Cart |
| 17 | 860828 | Rubber Plate | 19.43 | Add to Cart |
| 18 | 897506 | Warning Label | 6.49 | Add to Cart |
| 19 | 860650 | Protection Tube (heat Resistant) | 255.4 | Add to Cart |
| 20 | 860650 | Protection Tube (heat Resistant) | 255.4 | Add to Cart |
