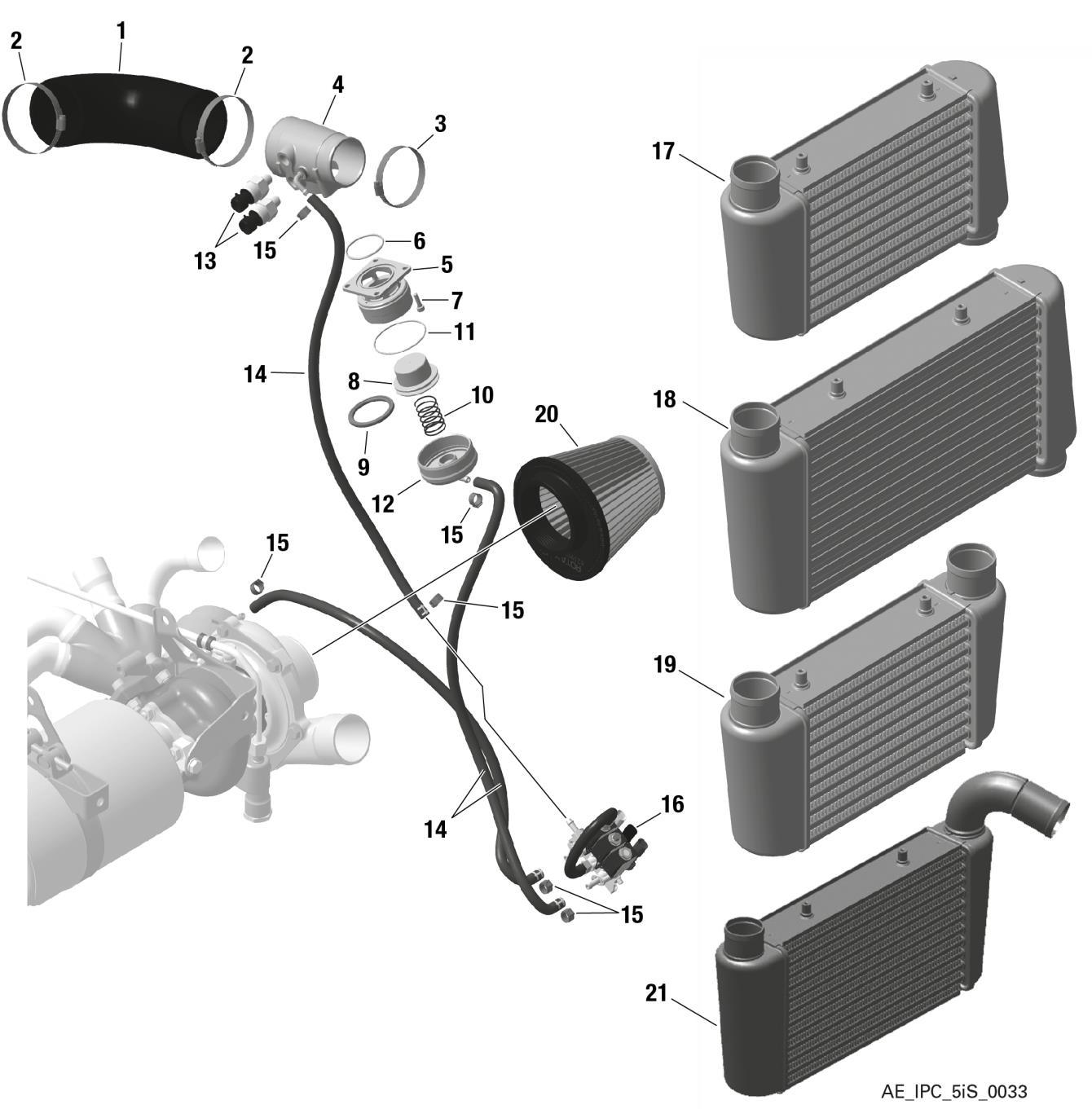

fig. 73-10-00-B
INTERCOOLER, WASTEGATE For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 201015 | Air Intake Hose | 83.96 | Add to Cart |
| 2 | 951791 | Clamp 50-70 | 6.02 | Add to Cart |
| 3 | 853381 | Clamp 40-60 | 3.52 | Add to Cart |
| 4 | 481540 | Pop Off Valve Assy | 1015.52 | Add to Cart |
| 5 | 947785 | Reduction Sleeve | 389.22 | Add to Cart |
| 6 | 812382 | Valve Housing | 151.27 | Add to Cart |
| 7 | 431740 | O-ring Din 3771-38x2.4-n, Viton Glt 70 | 10.41 | Add to Cart |
| 8 | 840514 | Allen Screw M5x16 | 0.21 | Add to Cart |
| 9 | 667196 | Valve Piston | 303.08 | Add to Cart |
| 10 | 631333 | Lip Seal Na Sf 50-42-4.5 | 182.15 | Add to Cart |
| 11 | 838372 | Compression Spring Dm22 D1.5 L50 | 38.3 | Add to Cart |
| 12 | 450390 | O Ring Din 3771-54x2-n, Fpm | 3.75 | Add to Cart |
| 14 | 664364 | Pressure Sensor 2,0 | 604.34 | Add to Cart |
| 15 | 874334 | Fuel Hose 6x11 - Per Meter | 190.12 | Add to Cart |
| 16 | 874338 | Fuel Hose 600 Mm | 142.92 | Add to Cart |
| 17 | 851468 | Clamp 10.3 - 12.8 | 3.29 | Add to Cart |
| 18 | 664639 | Solenoid Valve | 2131.13 | Add to Cart |
| 19 | 888962 | Intercooler Opposite In-out Ports | 490.74 | Add to Cart |
| 20 | 825900 | Air Filter | 107.44 | Add to Cart |
| 21 | 888965 | Intercooler In-out Port Same Side | 491.07 | Add to Cart |
