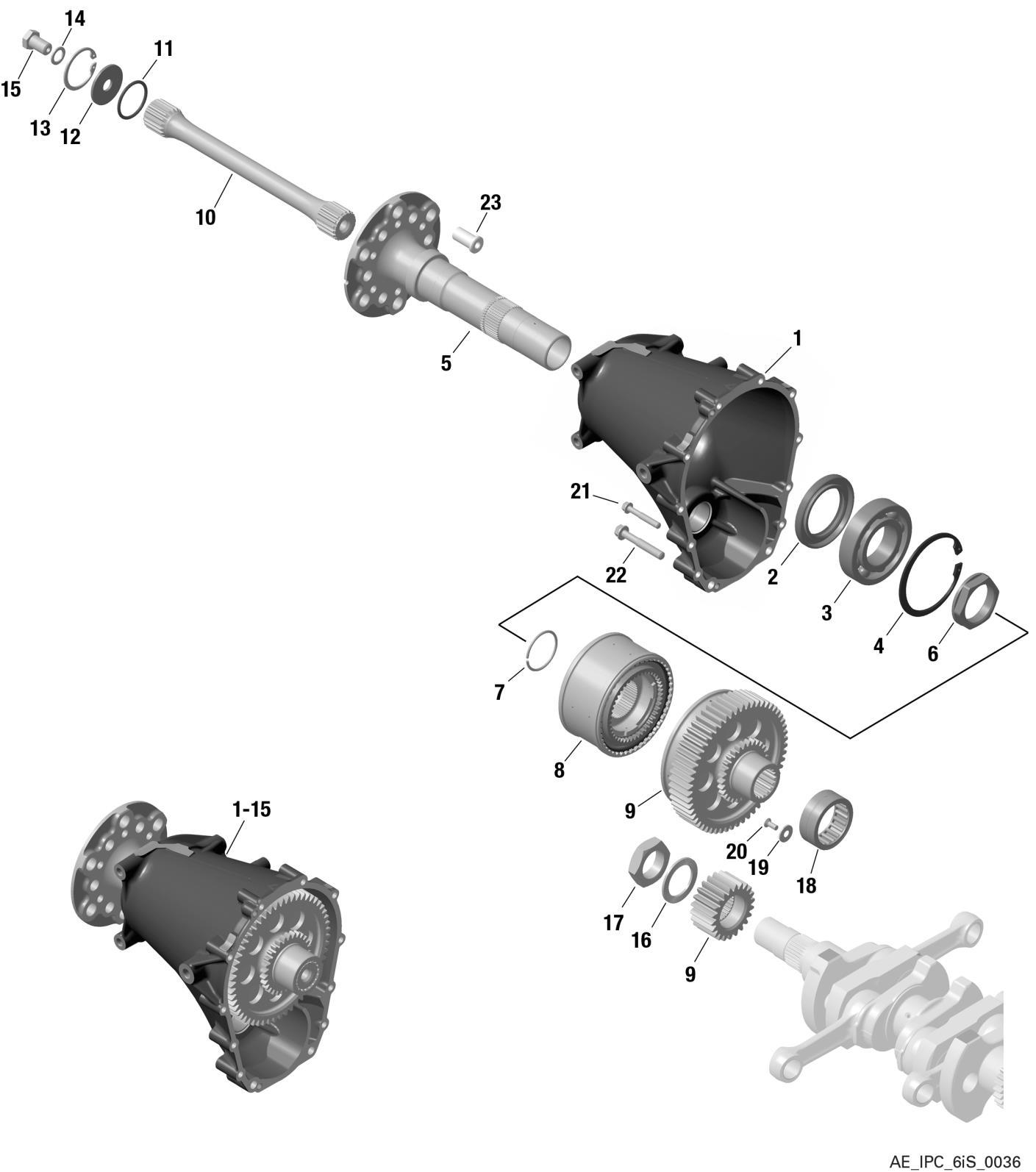

fig. 72-10-00-A
PROPELLER GEAR ASSY. For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 2 | 950091 | Oil Seal As 48x72x8 Fkm | 35.63 | Add to Cart |
| 3 | 832062 | Ball Bearing 6208 Tn9 C3 | 368.93 | Add to Cart |
| 4 | 845121 | Retaining Ring 80x2.85 | 39.63 | Add to Cart |
| 5 | 837228 | Propeller Shaft | 2228.69 | Add to Cart |
| 6 | 942320 | Collar Nut M40x1.5 Lh | 100.14 | Add to Cart |
| 7 | 245935 | Retaining Ring A 38 | 2.95 | Add to Cart |
| 8 | 958419 | Damping Clutch Assy | 3330.99 | Add to Cart |
| 9 | 958425 | 958 425 Use 958 426 | 5143.84 | Add to Cart |
| 11 | 230915 | O-ring Din 3771-33x3-n | 18.1 | Add to Cart |
| 12 | 827472 | Sealing Washer 40x12.1x2.5 | 38.13 | Add to Cart |
| 13 | 945880 | Retaining Ring 40x1,75 | 2.09 | Add to Cart |
| 14 | 250646 | Gasket A 12x18-cu Din 7603 | 0.29 | Add to Cart |
| 15 | 841155 | Hex Screw - M12x20 - A2-70 (version 3) | 68.44 | Add to Cart |
| 15 | 841153 | Hex Screw - M12x20 - A2-70 (version 2) | 78.22 | Add to Cart |
| 16 | 845431 | Friction Washer Vs30 | 7.16 | Add to Cart |
| 17 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 50.5 | Add to Cart |
| 18 | 832953 | Needle Bearing Rna 49/32 | 487.66 | Add to Cart |
| 19 | 227280 | Thrust Washer | 2.52 | Add to Cart |
| 20 | 940316 | Countersunk Screw M5x12 | 0.64 | Add to Cart |
| 21 | 440282 | Sk/torx-flange Screw M6x40-sw8/t30 | 0.84 | Add to Cart |
| 22 | 940077 | Hex / Torx Flange Screw M8x45-sw10/t40 | 2.95 | Add to Cart |
| 23 | 842634 | Round-neck Nut Set M8 | 82.15 | Add to Cart |
