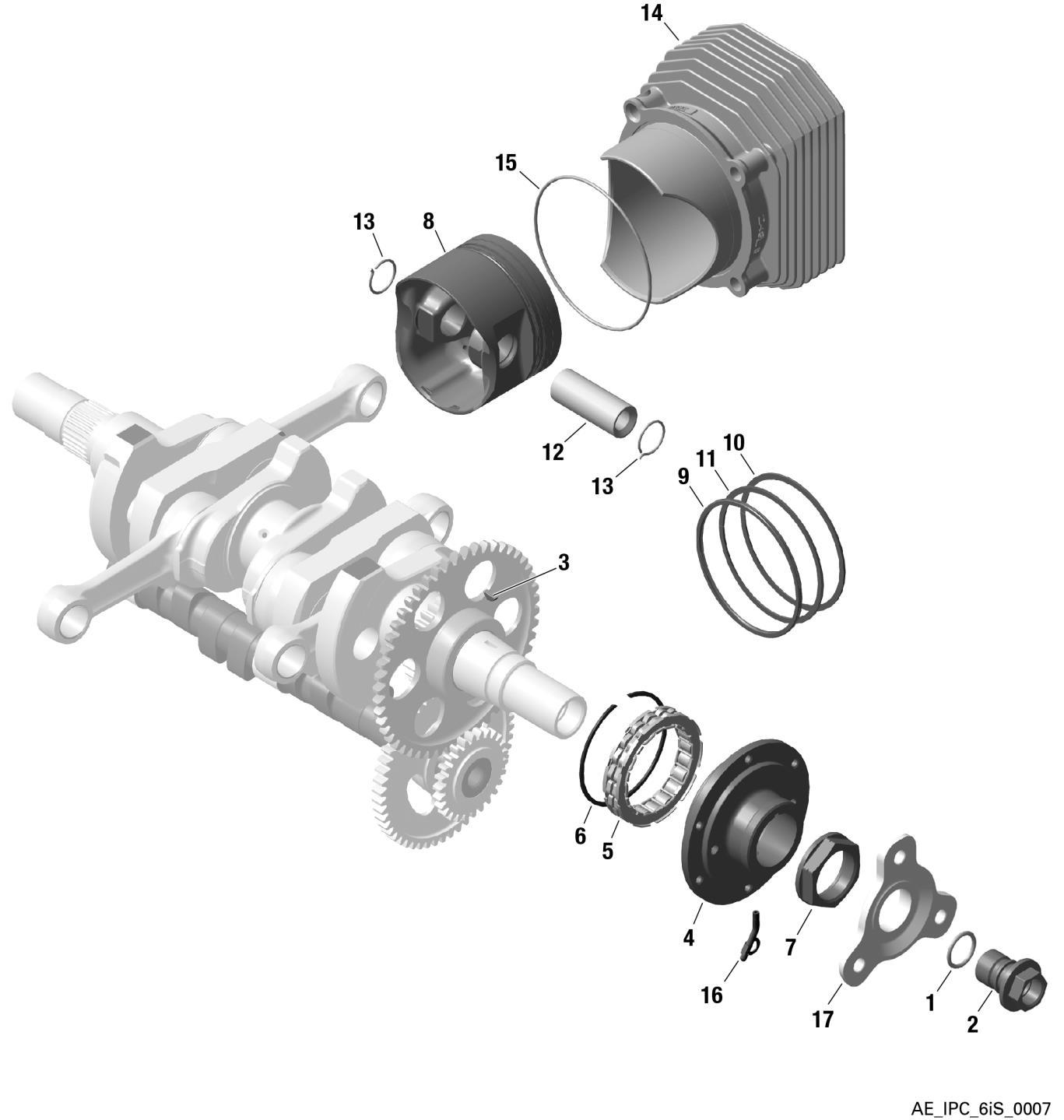

fig. 72-20-00-A
CRANKSHAFT, PISTON, CYLINDER, SPRANG CLUTCH For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 430225 | O-ring 15,9-2,3 | 1.25 | Add to Cart |
| 2 | 940526 | Plug Screw M20x1,5 | 162.91 | Add to Cart |
| 3 | 246055 | Woodruff Key 3x3,7 Din 6888 | 1.57 | Add to Cart |
| 4 | 852409 | Sprag Clutch Housing | 214.14 | Add to Cart |
| 5 | 958856 | Sprag Clutch 51,710x68,377x13 | 193.31 | Add to Cart |
| 6 | 845425 | Circlip 70 | 4.41 | Add to Cart |
| 7 | 942250 | Hex. Nut M32x1,5-lh | 54.7 | Add to Cart |
| 9 | 815230 | Oil Scraper Ring | 44.59 | Add to Cart |
| 10 | 815257 | Rectangular Ring 84/77x1,5 | 57.93 | Add to Cart |
| 11 | 815280 | Tapered Compression Ring | 30.31 | Add to Cart |
| 12 | 916380 | Piston Pin 20x12x51,3 | 128.61 | Add to Cart |
| 13 | 845106 | Mono Hook Circlip | 2.73 | Add to Cart |
| 14 | 913229 | Use 913 229-1 Or 2 | 730.22 | Add to Cart |
| 15 | 250510 | O-ring 87x2 | 6.38 | Add to Cart |
| 16 | 456540 | Oil Spray Nozzle Assy | 121.81 | Add to Cart |
| 17 | 953978 | Govenor Flange | 1130.64 | Add to Cart |
