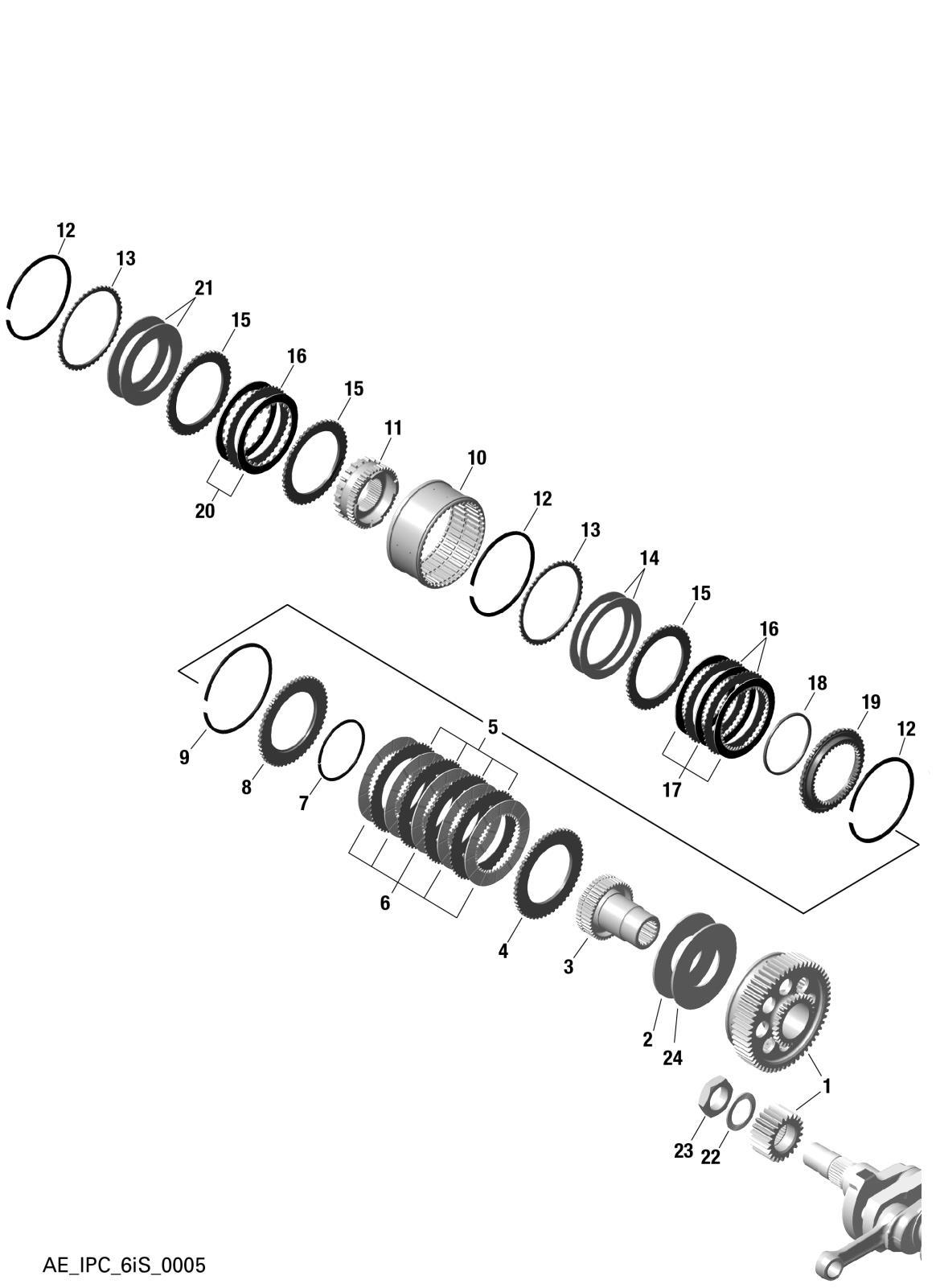

fig. 72-10-00-B
OVERLOAD CLUTCH, DAMPER CLUTCH For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 886081 | Gear Set I 2,54 | 2370.59 | Add to Cart |
| 1 | 958425 | 958 425 Use 958 426 | 5143.84 | Add to Cart |
| 2 | 938092 | Disk Spring 102x49x2.8 | 270.28 | Add to Cart |
| 3 | 837233 | Intermediate Shaft | 1316.92 | Add to Cart |
| 4 | 958400 | Steel Friction Plate 4.0 Mm | 355.04 | Add to Cart |
| 5 | 958160 | Steel Friction Plate 1.0 | 16.91 | Add to Cart |
| 6 | 958176 | Sinter Friction Plate 1.8 Mm | 373.91 | Add to Cart |
| 7 | 945080 | Circlip Sw 68 | 4.21 | Add to Cart |
| 8 | 958402 | Steel Friction Plate 4,0 Mm | 196.62 | Add to Cart |
| 9 | 945075 | Circlip Sb 105 | 8.55 | Add to Cart |
| 10 | 958419 | Damping Clutch Assy | 3330.99 | Add to Cart |
| 11 | 958023 | Clutch Hub | 914.25 | Add to Cart |
| 12 | 945070 | Circlip Sb 93 | 11.34 | Add to Cart |
| 13 | 927021 | Support Ring | 221.51 | Add to Cart |
| 14 | 938098 | Disk Spring 91.5x71x1.5 | 291.64 | Add to Cart |
| 15 | 959420 | Steel Friction Plate 3.0 Mm | 184.27 | Add to Cart |
| 16 | 958932 | Steel Friction Plate 1.0 Mm | 17.92 | Add to Cart |
| 17 | 958993 | Friction Plate 1.54 Mm | 213.11 | Add to Cart |
| 18 | 847895 | Spacer Ring 69/64.1/3.0 | 102.23 | Add to Cart |
| 19 | 958103 | Driving Collar | 594.5 | Add to Cart |
| 20 | 958994 | Friction Plate 1.54 Mm | 213.11 | Add to Cart |
| 21 | 938099 | Disk Spring 91.5x60x2.1 | 289.78 | Add to Cart |
| 22 | 845431 | Friction Washer Vs30 | 7.16 | Add to Cart |
| 23 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 50.5 | Add to Cart |
| 24 | 938093 | Disk Spring 102x49x2.8 | 271.26 | Add to Cart |
