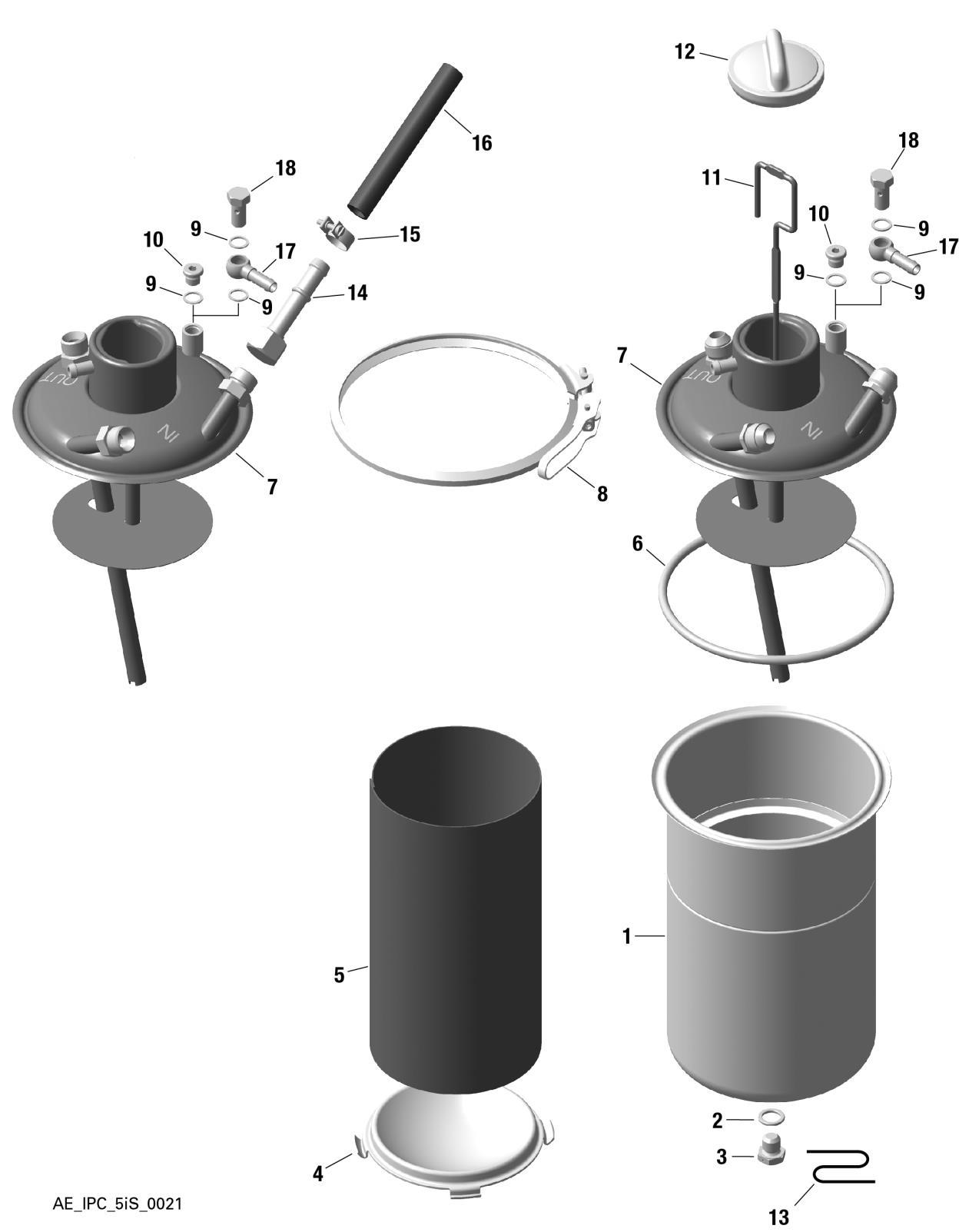

fig. 79-20-00-A
OIL TANK For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 656224 | Oil Tank Assy - Unf | 1283.96 | Add to Cart |
| 1 | 656226 | Oil Tank Assy - Metric | 1283.96 | Add to Cart |
| 1 | 656222 | Oil Tank Assy Unf Large | 1725.98 | Add to Cart |
| 2 | 250010 | Gasket Ring C 12x18 | 0.48 | Add to Cart |
| 3 | 241408 | Hex. Screw M12x12 | 53.17 | Add to Cart |
| 4 | 656861 | Partition 2 | 60.53 | Add to Cart |
| 5 | 956204 | Baffle Insert | 89.82 | Add to Cart |
| 6 | 850491 | O-ring 145x6 | 18.7 | Add to Cart |
| 8 | 951817 | Profile Clamp 163 | 143.58 | Add to Cart |
| 9 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.2 | Add to Cart |
| 10 | 641733 | Plug Screw M10x1 | 15.17 | Add to Cart |
| 12 | 974650 | Oil Tank Cover Kpl | 211.98 | Add to Cart |
| 12 | 974647 | Oil Tank Cover, Without Venting | 57.9 | Add to Cart |
| 13 | 297555 | Please Pick Up Locally | 204.25 | Add to Cart |
| 14 | 956610 | Hose Nipple With Union Nut | 169.86 | Add to Cart |
| 15 | 951826 | Hose Clamp | 17.92 | Add to Cart |
| 16 | 956394 | Oil Line Per Meter 12x19 | 131.95 | Add to Cart |
| 17 | 956314 | Hose Nipple 4/6 Din7642 | 34.08 | Add to Cart |
| 18 | 241073 | Banjo Bolt M10x1x19 | 71.48 | Add to Cart |
