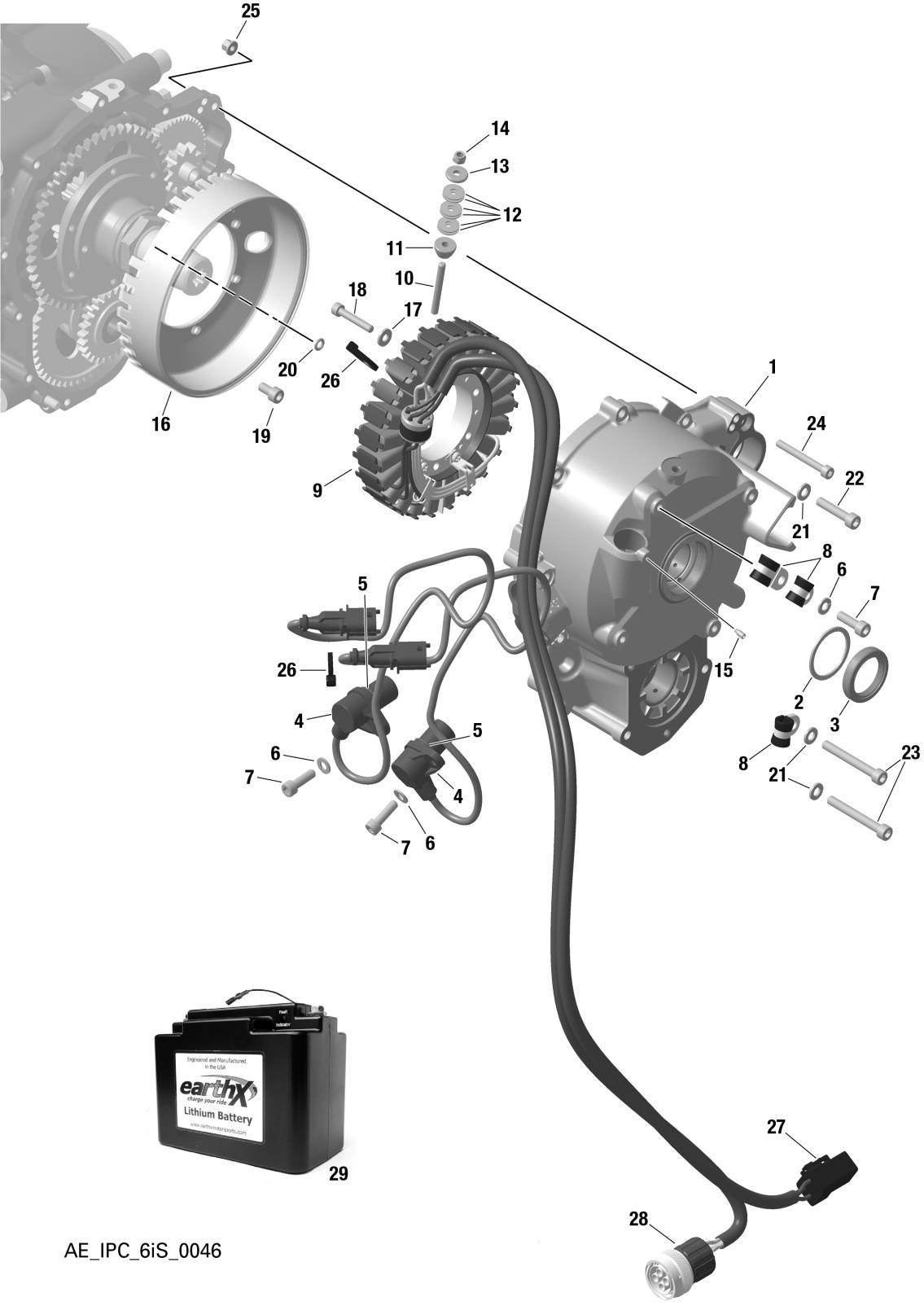

fig. 24-20-00
IGNITION HOUSING, STATOR, CRANKSHAFT POSITION SENSOR For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 912416 | Ignition Housing Assy. E-starter Mount 7 Degree | 1426.06 | Add to Cart |
| 2 | 827220 | Washer 32/38/1,5 | 22.5 | Add to Cart |
| 3 | 230429 | Oil Seal Gpre 28x38 X7 Fkm | 57.66 | Add to Cart |
| 4 | 966572 | Crankshaft Position Sensor | 382.43 | Add to Cart |
| 5 | 431580 | O-ring 17,17x1,78 Fpm 70 | 10.56 | Add to Cart |
| 6 | 945831 | Lock Washer A6 Din 128 | 0.2 | Add to Cart |
| 7 | 241935 | Allen Screw M6x20 | 0.64 | Add to Cart |
| 8 | 853412 | Cable Clamp #8 | 4.19 | Add to Cart |
| 9 | 889562 | Stator Assy. | 1109.31 | Add to Cart |
| 10 | 840792 | Stud M5x44 | 77.76 | Add to Cart |
| 11 | 947510 | Distance Sleeve | 51.46 | Add to Cart |
| 12 | 938080 | Disk Spring 15x5,2x0,7 | 1.05 | Add to Cart |
| 13 | 827240 | Washer 5,1/15,5/2,5 | 44.59 | Add to Cart |
| 14 | 842033 | Lock Nut M5 | 0.2 | Add to Cart |
| 15 | 840820 | Slotted Spring Pin 2.5x10 | 0.25 | Add to Cart |
| 16 | 685072 | Magneto Flywheel Assy. | 749.09 | Add to Cart |
| 17 | 827801 | Washer A 5,5 | 0.2 | Add to Cart |
| 18 | 940882 | Allen Screw M5x30 | 0.43 | Add to Cart |
| 19 | 840036 | Allen Screw M6x12 Din 912 | 1.07 | Add to Cart |
| 20 | 831929 | O-ring 5x2 | 1.07 | Add to Cart |
| 21 | 827962 | Washer 6,4 Din 125 | 0.2 | Add to Cart |
| 22 | 840888 | Allen Screw M6x30 Din 912 | 0.64 | Add to Cart |
| 23 | 241762 | Allen Screw M6x50 | 1.07 | Add to Cart |
| 24 | 941792 | Allen Screw M5x45 | 1.12 | Add to Cart |
| 25 | 942311 | Hex. Nut M5 | 34.31 | Add to Cart |
| 26 | 866714 | Tie Wrap 142x3,2 Mm | 0.08 | Add to Cart |
