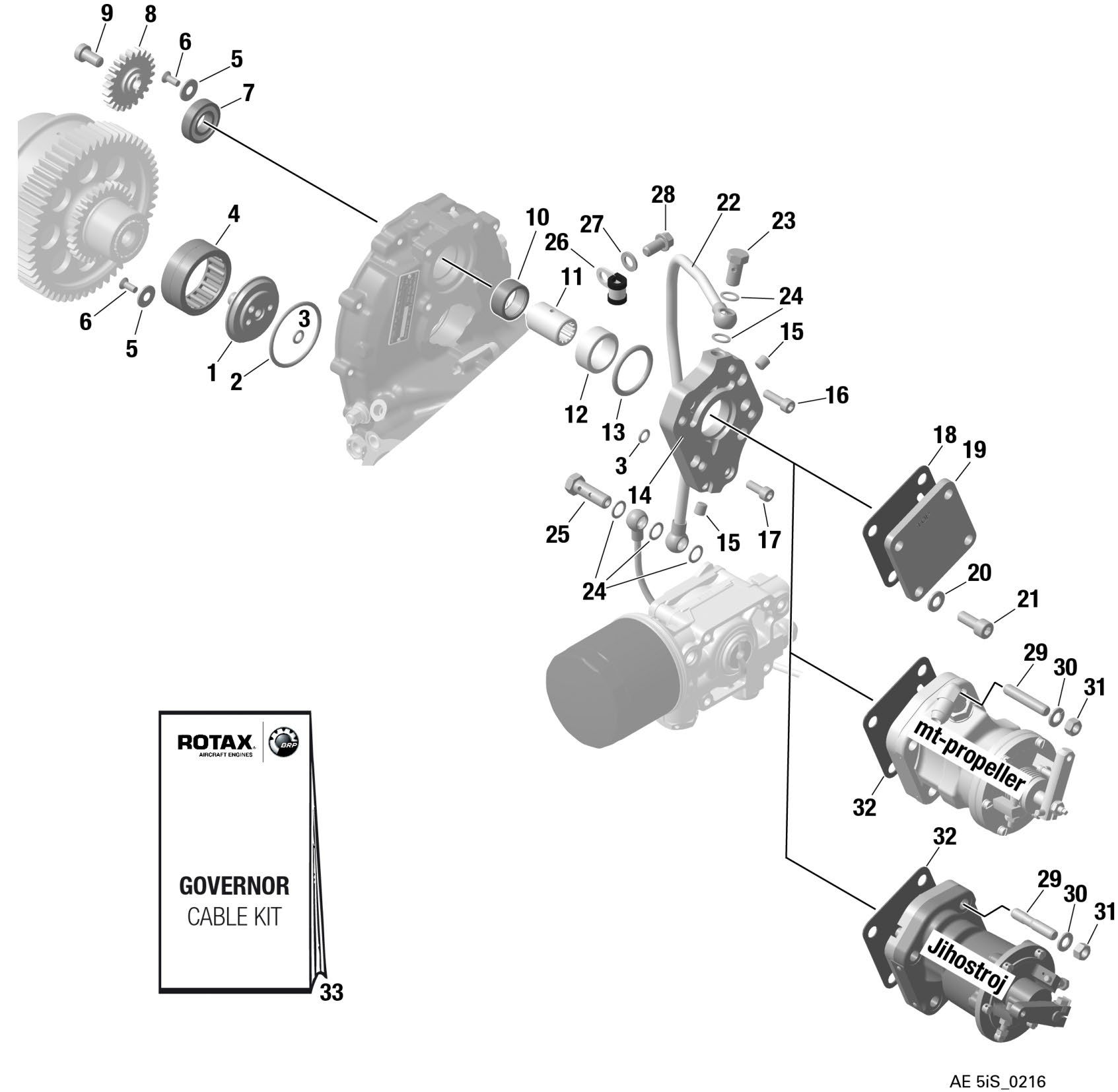

fig. 61-20-00
HYDR. GOVERNOR FOR CONSTANT SPEED PROPELLER For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 810310 | Oil Inlet Flange | 173.24 | Add to Cart |
| 2 | 430175 | O-ring 46x3 | 16.4 | Add to Cart |
| 3 | 830415 | O-ring 7x2 | 7.66 | Add to Cart |
| 4 | 832952 |
Needle Bearing Rna 49/32 (Superceded : 832950) |
311.24 | Add to Cart |
| 5 | 227280 | Thrust Washer | 8.79 | Add to Cart |
| 6 | 940316 |
Countersunk Screw M5x12 (Superceded : 940315) |
0.45 | Add to Cart |
| 7 | 832363 |
Ball Bearing 16002 (Superceded : 832362) |
107.44 | Add to Cart |
| 8 | 834245 | Vacuum Pump Gear 22 T., | 242.9 | Add to Cart |
| 9 | 941522 |
Allen Screw M8x16 (Superceded : 941521) |
1.59 | Add to Cart |
| 10 | 232925 | Needle Sleeve 22x28x12 | 42.26 | Add to Cart |
| 11 | 847773 | Drive Sleeve | 344.48 | Add to Cart |
| 12 | 847802 | Spacer 25/31,95/13 | 35.33 | Add to Cart |
| 13 | 950380 | O-ring 32x4 | 1.98 | Add to Cart |
| 14 | 810070 | Governor Flange | 710.28 | Add to Cart |
| 15 | 941611 | Screw Plug M8x1 | 6.39 | Add to Cart |
| 16 | 241935 |
Allen Screw M6x20 (Superceded : 241930) |
0.45 | Add to Cart |
| 17 | 241237 | Allen Screw M6x16 | 0.57 | Add to Cart |
| 18 | 931770 | Gasket | 14.9 | Add to Cart |
| 19 | 926231 | Cover | 135.61 | Add to Cart |
| 20 | 250315 | Washer 8,4 | 0.42 | Add to Cart |
| 21 | 240072 | Allen Screw M8x20 | 1.54 | Add to Cart |
| 22 | 956460 | Pressure Oil Line Assy., | 301.39 | Add to Cart |
| 23 | 241073 |
Banjo Bolt M10x1x19 (Superceded : 940874) |
29.21 | Add to Cart |
| 24 | 230150 | Gasket Ring 10x14 A Din 7603 | 1.36 | Add to Cart |
| 25 | 241072 |
Banjo Bolt M10x1x30 (Superceded : 940873) |
38.84 | Add to Cart |
| 26 | 853418 | Cable Clamp | 26.89 | Add to Cart |
| 27 | 944131 | Washer 8 Mm | 1.49 | Add to Cart |
| 28 | 440854 | Hex/torx-flange Screw M8x16 | 1.04 | Add to Cart |
| 29 | 840711 | Stud M8 X 21 | 18.14 | Add to Cart |
| 30 | 945832 | Lock Washer A8 | 0.17 | Add to Cart |
| 31 | 942674 |
Hex. Nut M8 (ws 11mm) (Superceded : 942671) |
2.23 | Add to Cart |
| 32 | 931372 | Gasket | 210.26 | Add to Cart |
| 33 | 481485 | Governor Cable Kit | 225.99 | Add to Cart |
