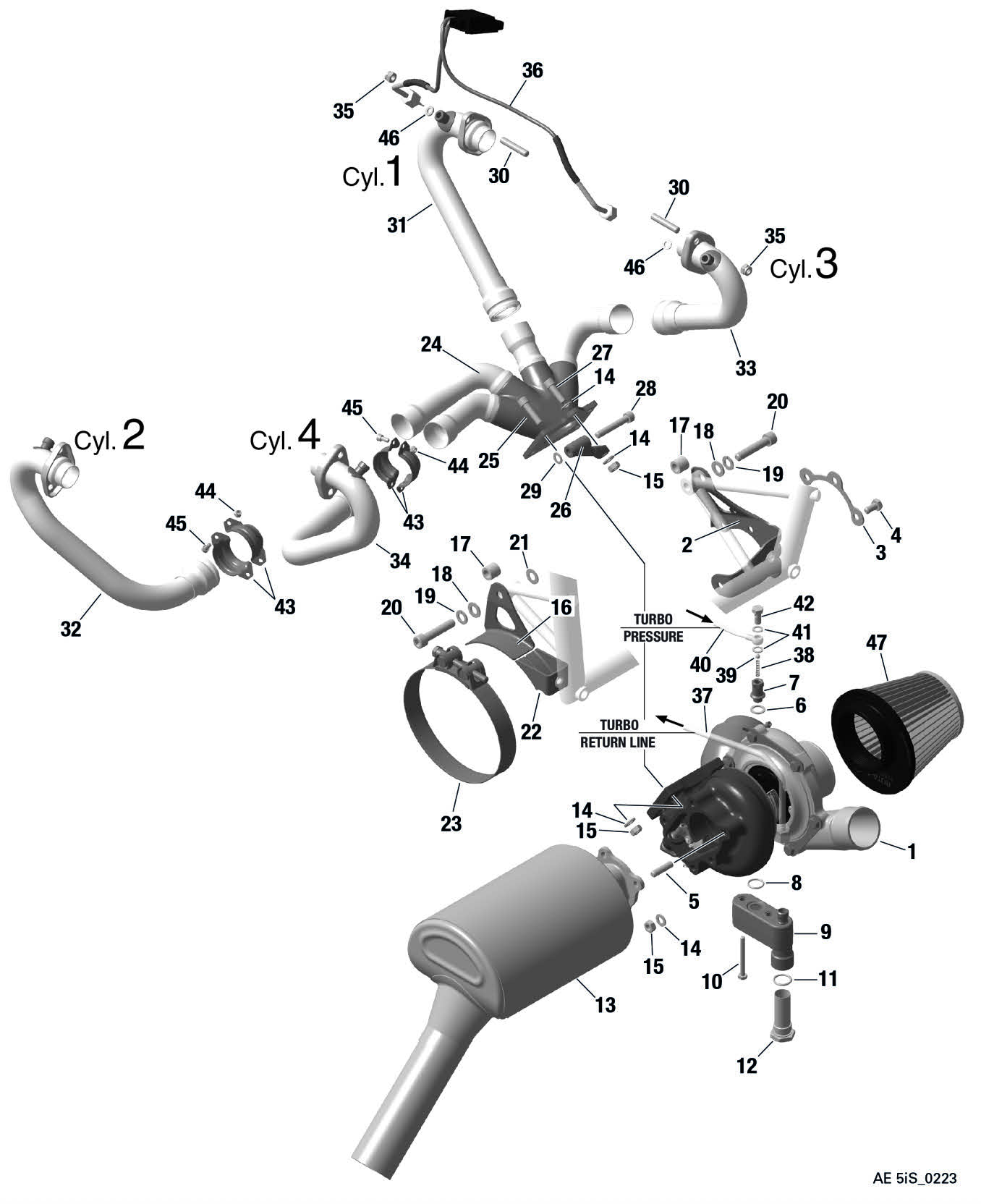

fig. 78-10-00

EXHAUST SYSTEM, EXHAUST TEMPERATURE SENSOR For ROTAX 915IS

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1 893106 Turbo Charger Assy 8542 Add to Cart
2 851296 Turbocharger Bracket 80.45 Add to Cart
3 851305 Reinforcement Sheet 12.39 Add to Cart
4 940583 Hex. Screw M8x16 Stainless Steel 3.7 Add to Cart
5 940173 Stud M8x19,5/13 8.01 Add to Cart
6 250646 Gasket A 12x18-cu Din 7603
(Superceded : 250640)
2.21 Add to Cart
7 956489 Valve Housing 84.57 Add to Cart
8 430225 O-ring 15,9-2,3 10.06 Add to Cart
9 656770 Oil Sump Assy 238.43 Add to Cart
10 640601 Hex. Screw Iso 4024 - M6x55 - 8.8 9.33 Add to Cart
11 250057 O-ring Din 3771-18x2,5-n, Fpm 75
(Superceded : 250055)
2.11 Add to Cart
12 640860 Plug Screw Assy M22 X 1.5 77 Add to Cart
13 979475 Muffler Assy. 2029.58 Add to Cart
14 250313 Washer 8,4 Stainless Steel 1.54 Add to Cart
15 242203 Hex.nut M8 Stainless Steel 1.98 Add to Cart
16 851680 Exhaust Bracket 53.84 Add to Cart
17 847841 Spacer 10,5/17/15 11.89 Add to Cart
18 927411 Washer 10,5 0.47 Add to Cart
19 945833 Lock Washer A10
(Superceded : 945753)
0.27 Add to Cart
20 640572 Allen Screw M10x50 4.29 Add to Cart
21 927411 Washer 10,5
(Superceded : 927410)
0.47 Add to Cart
23 851445 Clamp 140-148 105.8 Add to Cart
24 979563 Exhaust Manifold
(Superceded : 979562)
1537.42 Add to Cart
25 840993 Allen Screw M8x30 1.59 Add to Cart
26 953306 Manifold Bracket Assy. 254.43 Add to Cart
27 240073 Bolt M8x20 S/s 1.91 Add to Cart
28 440107 Allen Screw M8x50 Din 912 2.23 Add to Cart
29 926400 Washer 8,4/15/0,5 3.6 Add to Cart
29 926401 Washer 8,4/15/1 3.87 Add to Cart
29 926402 Washer 8,4/15/1,5 4.14 Add to Cart
30 940368 Stud M8x23/20
(Superceded : 940366)
7.1 Add to Cart
31 979502 Exhaust Pipe Cyl 1 675.02 Add to Cart
32 979512 Exhaust Pipe Cyl 2 808.2 Add to Cart
33 979522 Exhaust Pipe Cyl 3 718.53 Add to Cart
34 979533 Exhaust Pipe Cyl 4 808.2 Add to Cart
35 842950 Lock Nut Din 14441 M8-sw12 3 Add to Cart
36 866264 Temperature Sensor
(Superceded : 866262)
996.42 Add to Cart
37 656760 Turbo Oil Suction Line 189.59 Add to Cart
38 239131 Compression Spring 22,0 5.97 Add to Cart
39 232441 Ball 5,556 Mm
(Superceded : 232440)
1.54 Add to Cart
40 656765 Turbo Pressure Oil Line 222.75 Add to Cart
41 950141 Gasket Ring A 8x13 Din 7603 1.19 Add to Cart
42 840730 Banjo Bolt M8x1x17 66.04 Add to Cart
43 979570 Exhaust Pipe Clamp 25.92 Add to Cart
44 901442 Hex Nut Iso 7042 - M5 - A2 0.32 Add to Cart
45 240153 Allen Screw M5x10 Iso 4762-a2=70 0.32 Add to Cart
46 244213 Washer 6,4 1.24 Add to Cart
