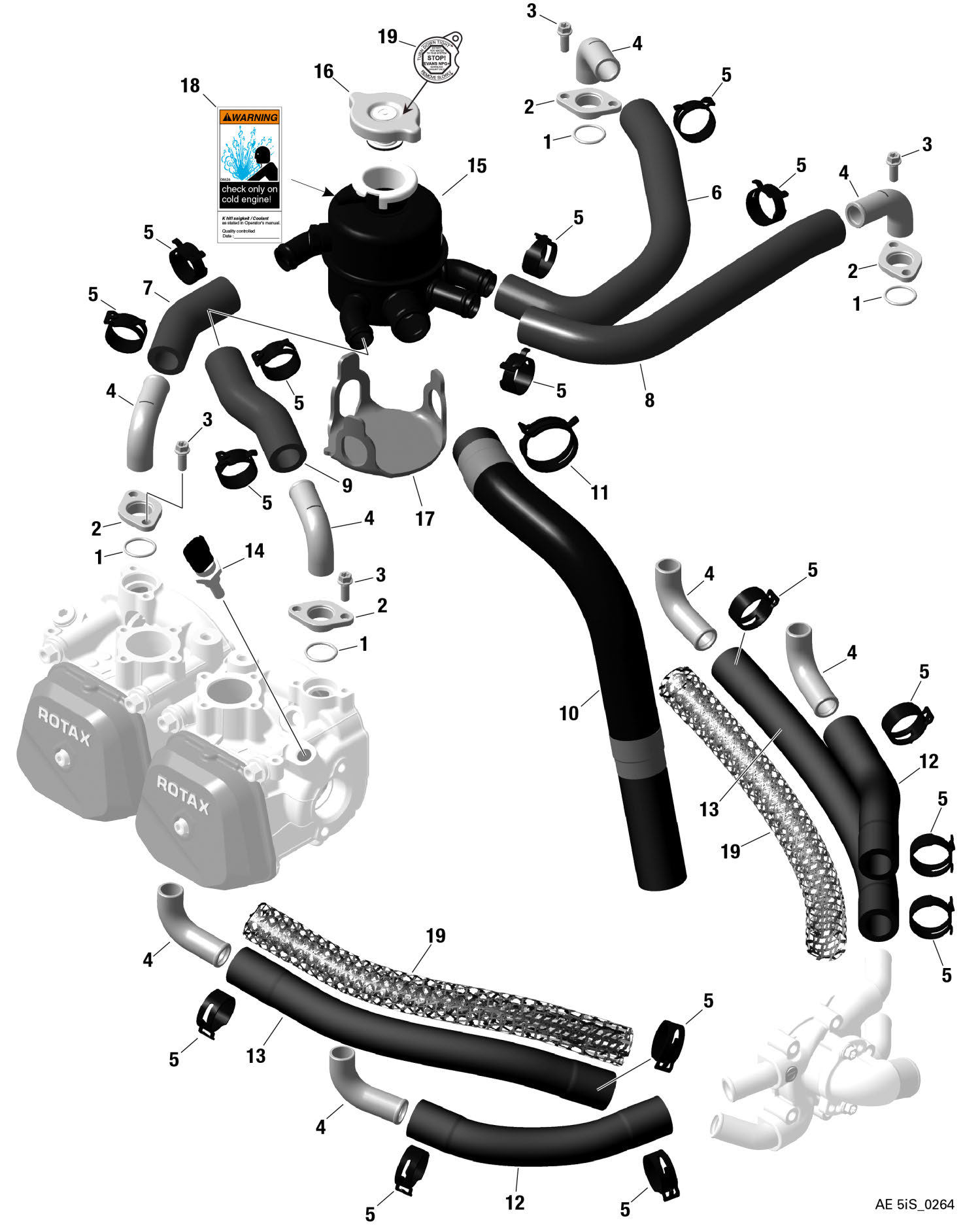

fig. 75-20-00-b
EXPANSION TANK WITH HOSES AND CONNECTIONS For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 950180 | O-ring 19-2 | 0.76 | Add to Cart |
| 2 | 922303 | Flange | 24.06 | Add to Cart |
| 3 | 440162 | Hex. Torx-flange Screw M6x16-sw8/t30 | 0.39 | Add to Cart |
| 4 | 922236 | Bent Socket 80 Degrees | 28.59 | Add to Cart |
| 5 | 851645 | Spring Type Clamp 25 | 2.29 | Add to Cart |
| 6 | 822423 | Form Hose 1 | 107.08 | Add to Cart |
| 6 | 822420 | Form Hose 1 | 26.8 | Add to Cart |
| 7 | 822433 | Form Hose 2 | 63.35 | Add to Cart |
| 7 | 822430 | Form Hose 2 | 6.31 | Add to Cart |
| 8 | 822443 | Form Hose 3 | 94.12 | Add to Cart |
| 8 | 822440 | Form Hose 3 | 25.87 | Add to Cart |
| 9 | 822448 | Form Hose 4 | 62.22 | Add to Cart |
| 9 | 822445 | Form Hose 4 | 13.43 | Add to Cart |
| 10 | 822450 | Form Hose | 53.45 | Add to Cart |
| 10 | 822454 | Form Hose | 162.46 | Add to Cart |
| 11 | 951350 | Self Compensating Clamp 35 | 6.69 | Add to Cart |
| 12 | 922368 | Water Tube 180mm +/- 3mm | 95.75 | Add to Cart |
| 12 | 922360 | 180 Mm Hose | 27.71 | Add to Cart |
| 13 | 922369 | Water Tube 280mm +/- 3mm | 120.31 | Add to Cart |
| 13 | 922362 | 280 Mm Hose | 40.9 | Add to Cart |
| 14 | 965537 | Temperature Sensor | 265.81 | Add to Cart |
| 15-18 | 922668 | Expansion Tank | 326.69 | Add to Cart |
| 16 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 42.45 | Add to Cart |
| 17 | 860828 | Rubber Plate | 28.59 | Add to Cart |
| 18 | 897506 | Warning Label | 4.77 | Add to Cart |
| 19 | 860650 | Protection Tube (heat Resistant) | 257.78 | Add to Cart |
