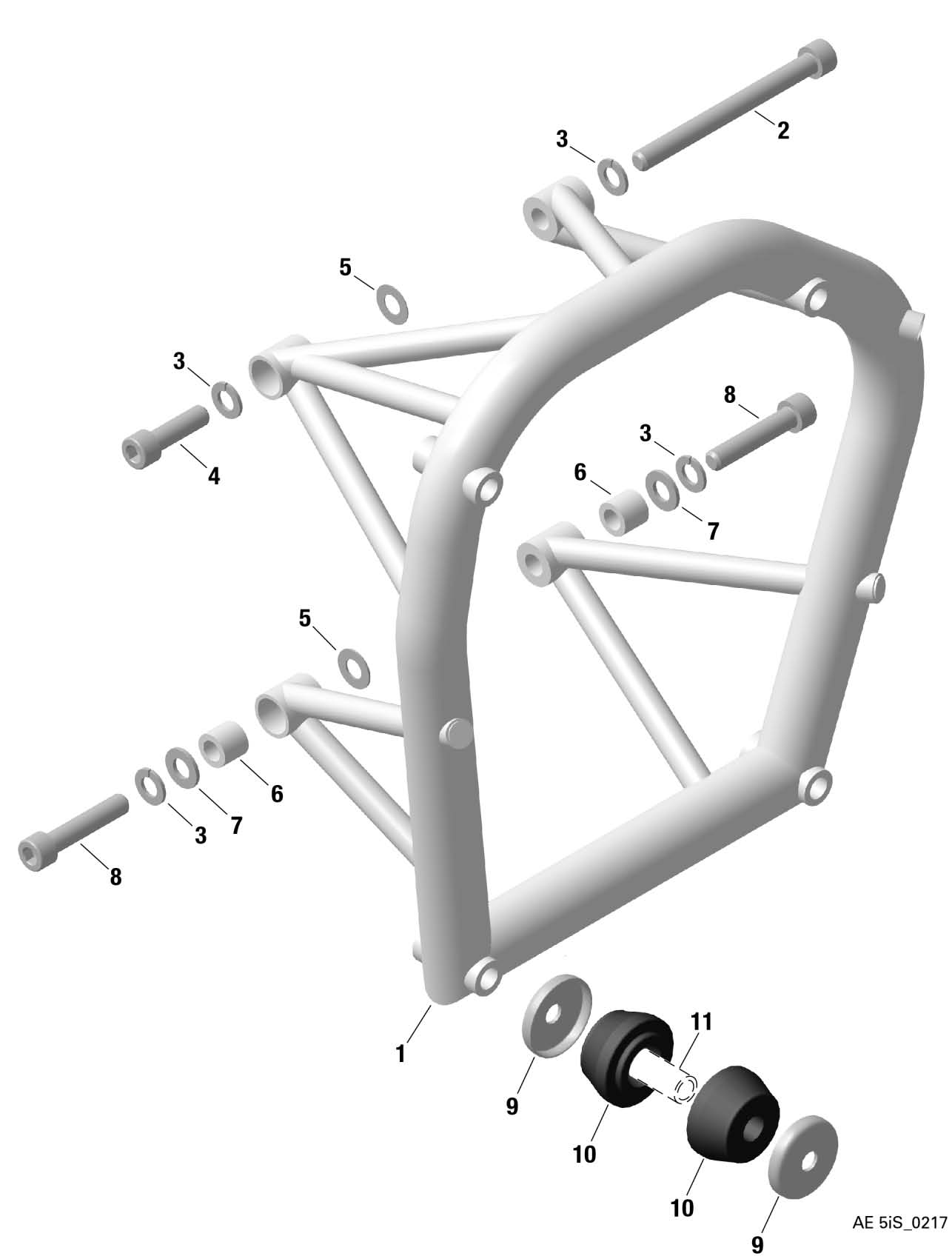

fig. 71-20-00
ENGINE SUSPENSION FRAME For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 886563 | Engine Suspension Frame Assy | 1383.69 | Add to Cart |
| 2 | 941487 | Allen Screw M10x110 Din 912 | 7.52 | Add to Cart |
| 3 | 945833 |
Lock Washer A10 (Superceded : 945753) |
0.27 | Add to Cart |
| 4 | 840948 | Allen Screw M10x35 Din 912 | 4.81 | Add to Cart |
| 5 | 927952 | Thrust Washer 10,1/20/0,5 | 5.22 | Add to Cart |
| 5 | 927953 | Thrust Washer 10,1/20/1,0 | 5.36 | Add to Cart |
| 6 | 847841 | Spacer 10,5/17/15 | 11.89 | Add to Cart |
| 7 | 927411 |
Washer 10,5 (Superceded : 927410) |
0.47 | Add to Cart |
| 8 | 640572 | Allen Screw M10x50 | 4.29 | Add to Cart |
| 9-10 | 860695 | Shock Mount Set | 1252.8 | Add to Cart |
| 9 | 944240 | Cup Washer | 59.36 | Add to Cart |
| 10 | 860690 | Shock Mount | 133.01 | Add to Cart |
