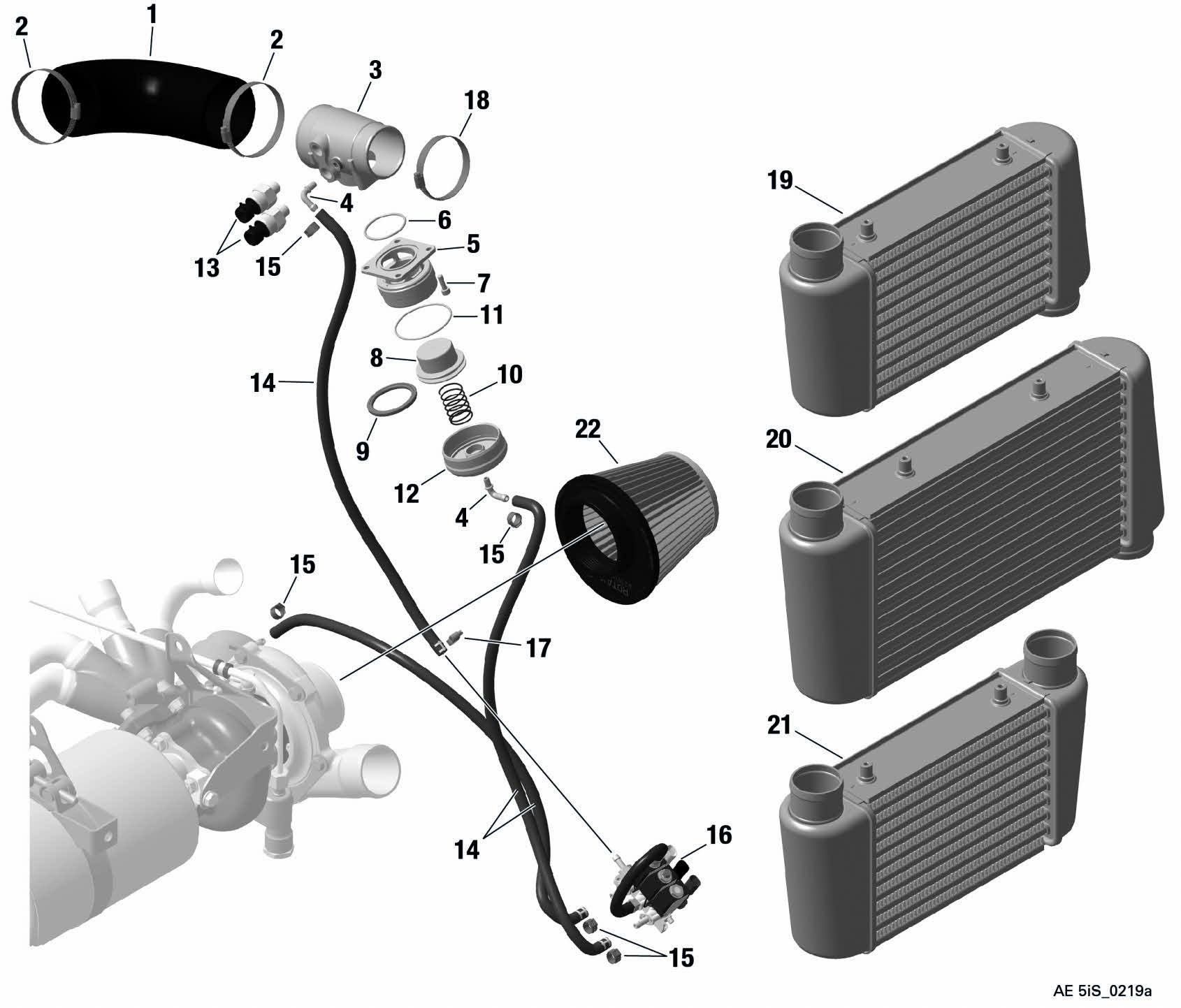

fig. 73-10-00-b
INTERCOOLER, WASTEGATE For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 201015 | Air Intake Hose | 64.8 | Add to Cart |
| 2 | 951791 | Clamp 50-70 | 10.54 | Add to Cart |
| 3 | 947781 | Reduction Sleeve | 181.9 | Add to Cart |
| 4 | 0 | Add to Cart | ||
| 5 | 812382 | Valve Housing | 151.27 | Add to Cart |
| 6 | 431740 | O-ring Din 3771-38x2.4-n, Viton Glt 70 | 6.58 | Add to Cart |
| 7 | 840514 |
Allen Screw M5x16 (Superceded : 840511) |
0.42 | Add to Cart |
| 8 | 667196 | Valve Piston | 185.24 | Add to Cart |
| 9 | 631333 | Lip Seal Na Sf 50-42-4.5 | 99.49 | Add to Cart |
| 10 | 838372 | Compression Spring Dm22 D1.5 L50 | 38.3 | Add to Cart |
| 11 | 450390 | O Ring Din 3771-54x2-n, Fpm | 2.28 | Add to Cart |
| 12 | 812391 | Valve Cover | 98.11 | Add to Cart |
| 13 | 664364 | Pressure Sensor 2,0 | 358.18 | Add to Cart |
| 14 | 874339 |
Control Hose 670 Mm (Superceded : 874333) |
70.88 | Add to Cart |
| 15 | 851468 | Clamp 10.3 - 12.8 | 2.41 | Add to Cart |
| 16 | 664639 |
Solenoid Valve (Superceded : 664638) |
1911.66 | Add to Cart |
| 17 | 951898 | Clamp 7-11 | 9.78 | Add to Cart |
| 18 | 853381 | Clamp 40-60 | 3.52 | Add to Cart |
| 19 | 888962 | Intercooler Opposite In-out Ports | 407.26 | Add to Cart |
| 20 | 888963 | Intercooler Large - Opposite In/out Ports | 407.26 | Add to Cart |
| 21 | 888965 | Intercooler In-out Port Same Side | 395.81 | Add to Cart |
| 22 | 825900 | Air Filter | 161.18 | Add to Cart |
