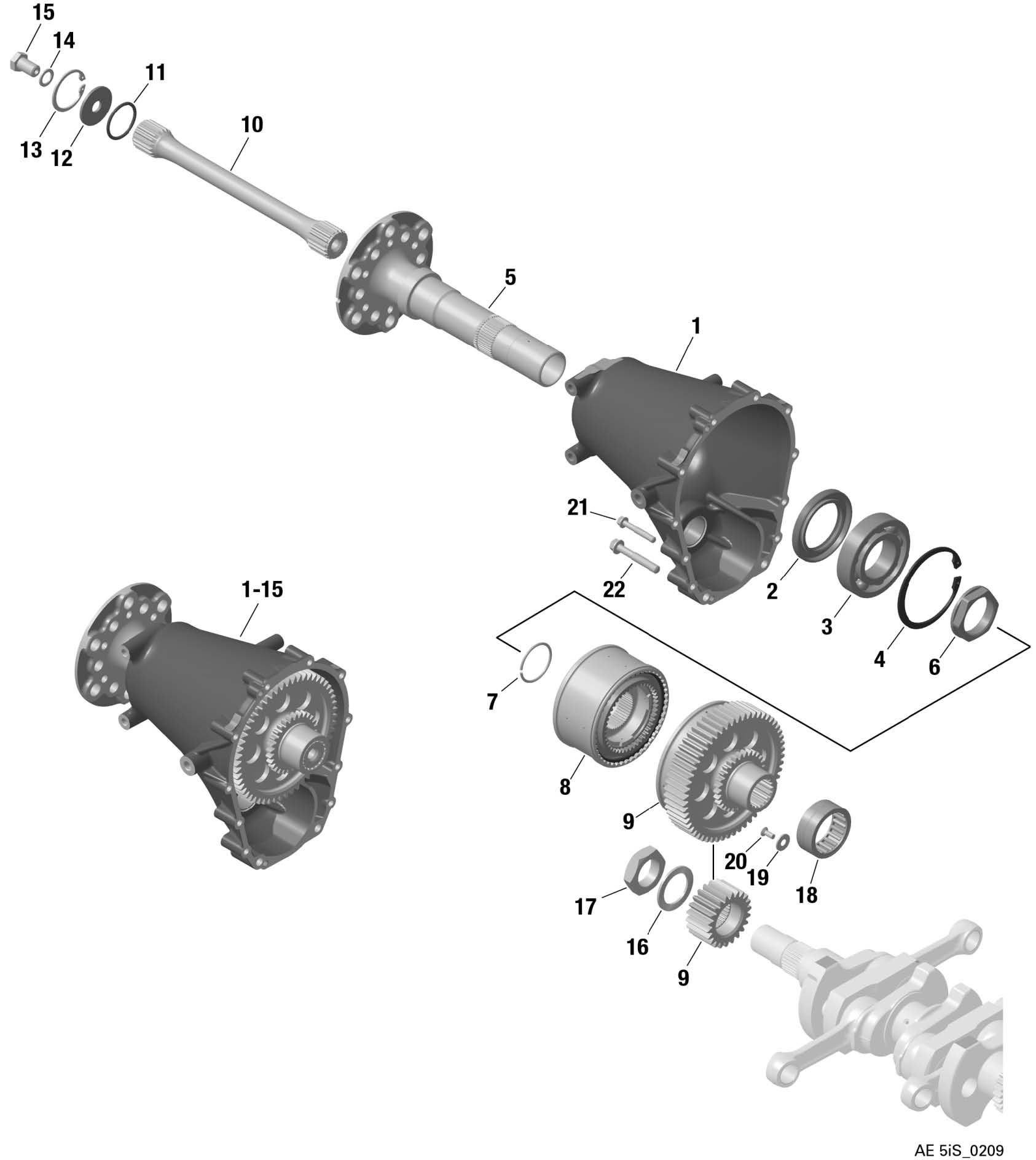

fig. 72-10-00-a

PROPELLER GEAR ASSY. For ROTAX 915IS

Click on Number to order Part

Fig. Part Number Description Unit/Price Add to Cart
1-15 686790 Gearbox 915is Version 3 8200.85 Add to Cart
1 911286 Gearbox Housing Assy.
(Superceded : 911985)
900.28 Add to Cart
2 950091 Oil Seal As 48x72x8 Fkm 23.78 Add to Cart
3 832062 Ball Bearing 6208 Tn9 C3
(Superceded : 832060)
239.55 Add to Cart
4 845121 Retaining Ring 80x2.85
(Superceded : 845120)
20.52 Add to Cart
5 837225 Propeller Shaft
(Superceded : 837221)
1732.99 Add to Cart
6 942320 Collar Nut M40x1.5 Lh 48.24 Add to Cart
7 245935 Retaining Ring A 38 1.96 Add to Cart
8 958419 Damping Clutch Assy
(Superceded : 958418)
4336.09 Add to Cart
9 958425 Overload Clutch Assy
(Superceded : 958414)
4219.14 Add to Cart
10 837206 Torsion Shaft
(Superceded : 837203)
477.75 Add to Cart
11 230915 O-ring Din 3771-33x3-n 11.8 Add to Cart
12 827470 Sealing Washer 40x12,1x2x5) 14.66 Add to Cart
13 945880 Retaining Ring 40x1,75 3.7 Add to Cart
14 250646 Gasket A 12x18-cu Din 7603
(Superceded : 250640)
2.21 Add to Cart
15 841150 Hex Screw M12 X 20 A2-70 27.52 Add to Cart
16 845431 Friction Washer Vs30 11.09 Add to Cart
17 842579 Hex. Nut M30x1.5 12mm, Lh 19.55 Add to Cart
18 832952 Needle Bearing Rna 49/32 311.24 Add to Cart
19 227280 Thrust Washer 8.79 Add to Cart
20 940316 Countersunk Screw M5x12 0.45 Add to Cart
21 440282 Sk/torx-flange Screw M6x40-sw8/t30 0.57 Add to Cart
22 940077 Hex / Torx Flange Screw M8x45-sw10/t40 1.96 Add to Cart
