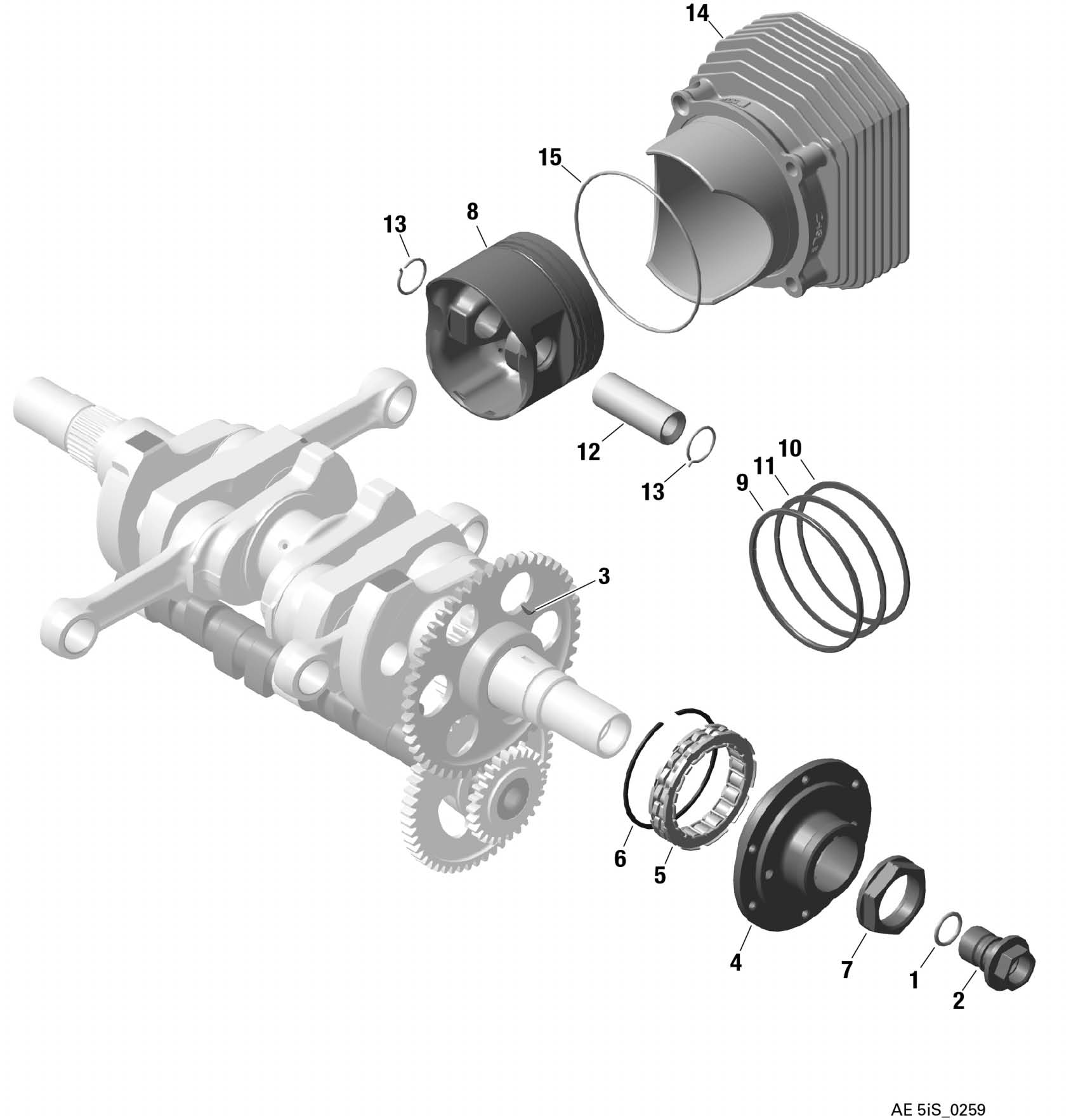

fig. 72-20-00-b
CRANKSHAFT, PISTON, CYLINDER, SPRAG CLUTCH For ROTAX 915IS
Click on Number to order Part
Your cart is Empty
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|
Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 430225 | O-ring 15,9-2,3 | 1.14 | Add to Cart |
| 2 | 940526 | Plug Screw M20x1,5 | 148.1 | Add to Cart |
| 3 | 246055 | Woodruff Key 3x3,7 Din 6888 | 1.14 | Add to Cart |
| 4 | 852407 | Sprag Clutch Housing | 186.5 | Add to Cart |
| 5 | 958856 | Sprag Clutch 51,710x68,377x13 | 175.74 | Add to Cart |
| 6 | 845425 | Circlip 70 | 4.01 | Add to Cart |
| 7 | 942250 | Hex. Nut M32x1,5-lh | 49.73 | Add to Cart |
| 9 | 815230 | Oil Scraper Ring | 40.54 | Add to Cart |
| 10 | 815257 | Rectangular Ring 84/77x1,5 | 52.66 | Add to Cart |
| 11 | 815280 | Tapered Compression Ring | 27.55 | Add to Cart |
| 12 | 916380 | Piston Pin 20x12x51,3 | 116.92 | Add to Cart |
| 13 | 845106 | Mono Hook Circlip | 2.48 | Add to Cart |
| 14 | 913228-1 | Cylinder (type A) | 775.33 | Add to Cart |
| 15 | 250510 | O-ring 87x2 | 5.8 | Add to Cart |
Showing 1 to 14 of 14 entries
