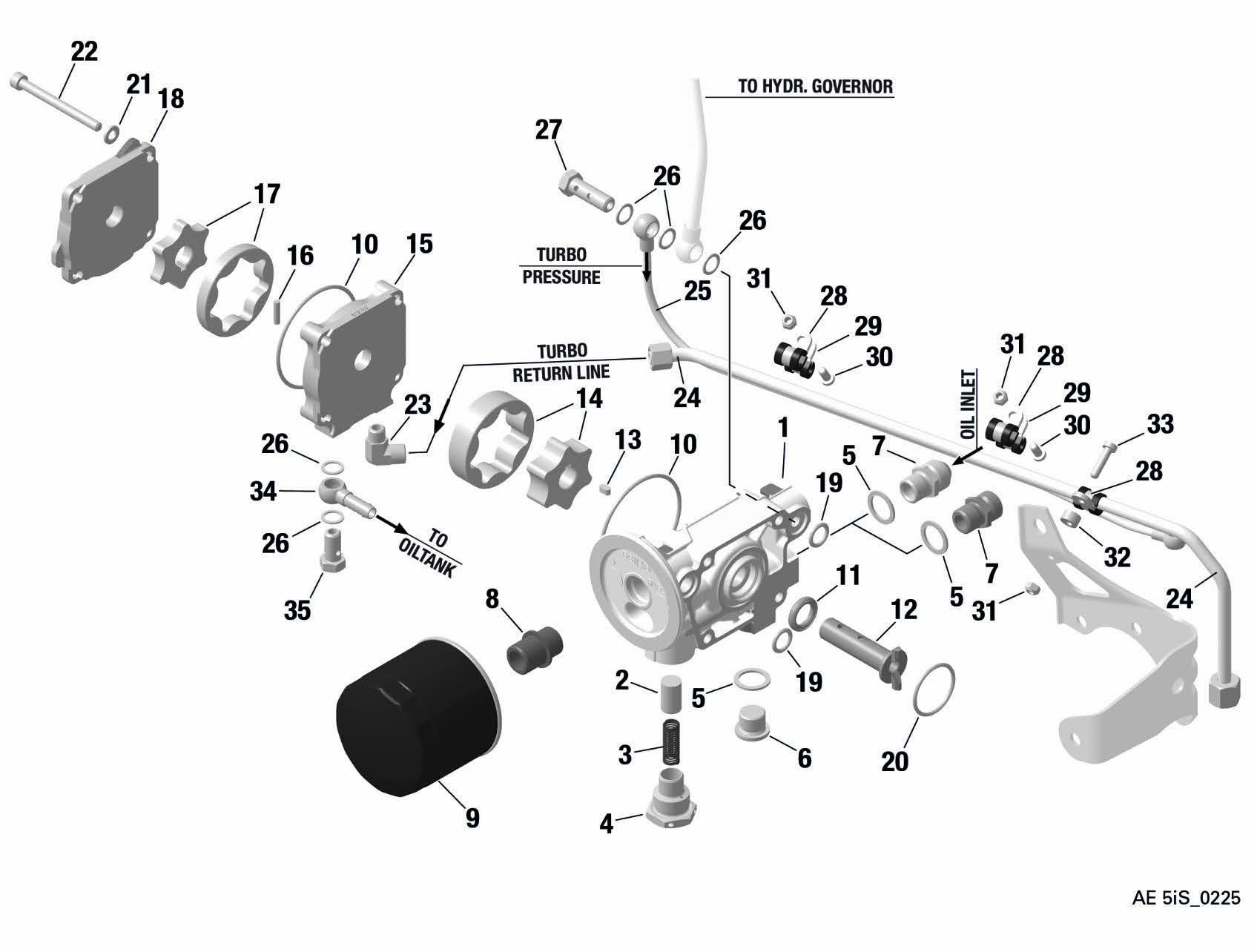

fig. 79-20-00-b
OIL PUMP ASSY., OIL FILTER, OIL TEMPERATURE SENSOR, OIL PRESSURE SENSOR For ROTAX 915IS
Click on Number to order Part
Your cart is Empty
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|
Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 811463 | Oil Pump Housing | 609.11 | Add to Cart |
| 2 | 856330 | Regulating Piston | 46.1 | Add to Cart |
| 3 | 838125 | Compression Spring L65,6 | 4.4 | Add to Cart |
| 4 | 640850 | Plug Screw M22x1,5 | 69.65 | Add to Cart |
| 5 | 430622 | Gasket Ring A 16x22 | 1.72 | Add to Cart |
| 6 | 240234 | Plug Screw M16x1,5 | 3.83 | Add to Cart |
| 7 | 956652 | Adapter 3/4-16 Unf16/m16 X 1.5 | 197.36 | Add to Cart |
| 7 | 956655 | Adapter M18x1.5/ M16x1,5 | 105.64 | Add to Cart |
| 8 | 924430 | Oil Filter Nipple | 20.9 | Add to Cart |
| 9 | 825016 | Oil Filter, Rotax | 28.01 | Add to Cart |
| 10 | 830372 | O-ring 63-2,5 | 4.01 | Add to Cart |
| 11 | 430102 | Oil Seal A 14x22x4 Fpm | 14.11 | Add to Cart |
| 12 | 837295 | Oil Pump Shaft | 509.94 | Add to Cart |
| 13 | 246580 | Key A 4x4x8 Din 6885 | 0.97 | Add to Cart |
| 14 | 888821 | Pressure Inner And Outer Rotor | 132.23 | Add to Cart |
| 15 | 812194 | Oil Pump Housing | 362.58 | Add to Cart |
| 16 | 232732 | Neele Pin 4 X 15,8 G2 | 0.58 | Add to Cart |
| 17 | 656850 | Rotor Set | 144.57 | Add to Cart |
| 18 | 911713 | Oil Pump Cover | 187.71 | Add to Cart |
| 19 | 250460 | O-ring 11-2,7 | 0.97 | Add to Cart |
| 20 | 950410 | O-ring 30x2,5 | 1.51 | Add to Cart |
| 21 | 827962 | Washer 6,4 Din 125 | 0.18 | Add to Cart |
| 22 | 241263 | Allen Screw M6x65 | 1.53 | Add to Cart |
| 23 | 824020 | Male Stud Elbo M10x1 | 76.78 | Add to Cart |
| 24 | 656760 | Turbo Oil Suction Line | 151.78 | Add to Cart |
| 25 | 656765 | Turbo Pressure Oil Line | 228.18 | Add to Cart |
| 26 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.18 | Add to Cart |
| 27 | 241072 | Banjo Bolt M10x1x30 | 20.32 | Add to Cart |
| 28 | 851111 | Cable Clamp 8/m5 | 33.1 | Add to Cart |
| 29 | 851116 | Cable Clamp 5/m5 | 33.43 | Add to Cart |
| 30 | 241842 | Allen Screw M5x12 | 1.53 | Add to Cart |
| 31 | 942021 | Lock Nut M5 | 0.18 | Add to Cart |
| 32 | 847664 | Spacer 5,2/11/6,4 | 20.28 | Add to Cart |
| 33 | 941540 | Allen Screw M5x20 Din 6912 | 0.4 | Add to Cart |
| 34 | 956314 | Hose Nipple 4/6 Din7642 | 24.78 | Add to Cart |
| 35 | 241073 | Banjo Bolt M10x1x19 | 64.98 | Add to Cart |
Showing 1 to 36 of 36 entries
