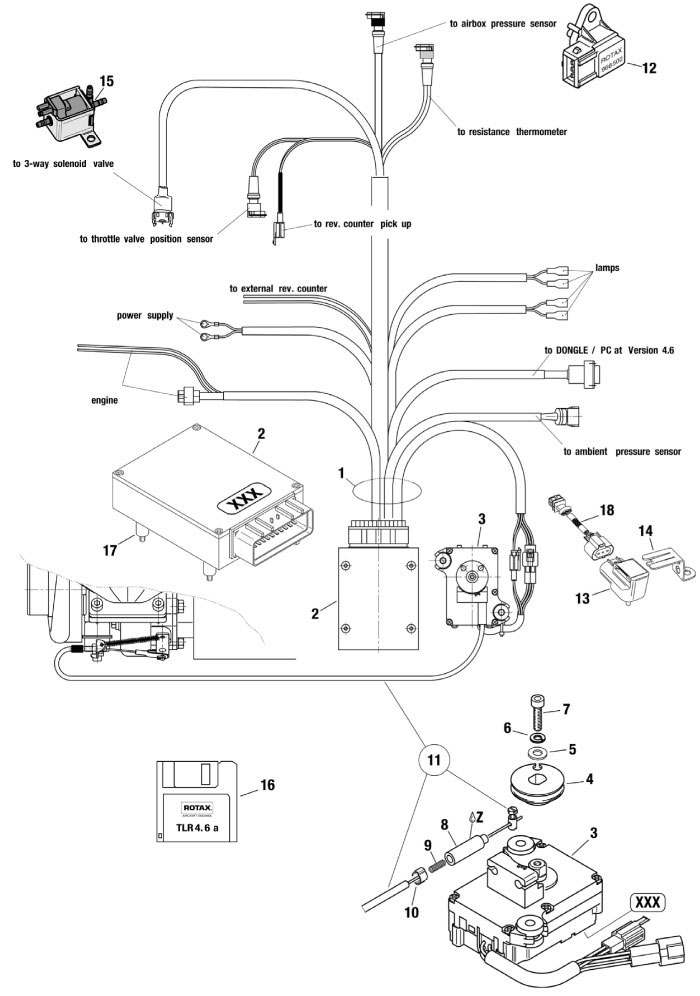

fig. 76-10-00-1
TURBOCHARGER CONTROL UNIT For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 966495 | Wiring Harness | 693.11 | Add to Cart |
| 2 | 966741 | 914 Turbo Control Unit Ver 4.6 | 3238.66 | Add to Cart |
| 3 | 295410 | Servo Motor | 547.45 | Add to Cart |
| 4 | 280088 | Rope Sheave | 122.37 | Add to Cart |
| 5 | 926180 | Washer 5,2x14,8x1,5 | 0.51 | Add to Cart |
| 6 | 945830 | Lock Washer A5 | 0.17 | Add to Cart |
| 7 | 441341 | Allen Screw M5x20 Din 912 | 1.09 | Add to Cart |
| 8 | 847882 | Cable Retainer | 34.16 | Add to Cart |
| 9 | 239015 | Spring | 4.89 | Add to Cart |
| 10 | 853845 | Clamp 5-7 Mm | 5.38 | Add to Cart |
| 11 | 897942 | Cable Bowden Assy. | 97.88 | Add to Cart |
| 12 | 966502 | Airbox Pressure Sensor | 281.98 | Add to Cart |
| 13 | 274051 | Static Pressure Sensor | 326.55 | Add to Cart |
| 14 | 924990 | Retaining Plate | 9.61 | Add to Cart |
| 15 | 881040 | 3-way Solenoid Valve Retrofit Kit | 665.04 | Add to Cart |
| 17 | 660772 | Rubber Buffer 10x15xm4 | 27.68 | Add to Cart |
| 18 | 666012 | Connector Cable | 140.5 | Add to Cart |
