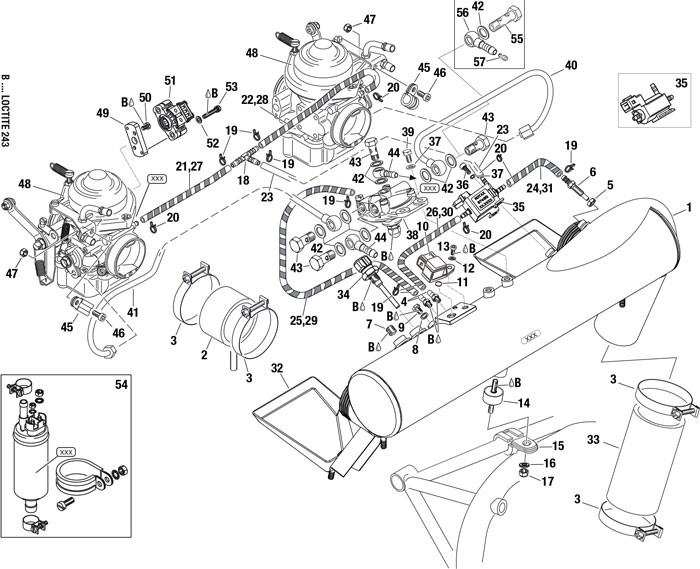

fig. 73-10-00-3
AIRBOX ASSY., 3-WAY SOLENOID VALVE ASSY., FUEL PRESSURE REGULATOR ASSY. For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-33 | 667574 | Airbox Assy. | 1705.78 | Add to Cart |
| 2 | 860985 | Connecting Hose 35 Mm | 34.3 | Add to Cart |
| 3 | 853595 | Clamp 59 | 6.34 | Add to Cart |
| 4 | 940551 | Hose Nipple, M6 | 49.12 | Add to Cart |
| 5 | 242032 | Hex.nut Bm6 | 0.18 | Add to Cart |
| 6 | 940555 | Hose Nipple M6 | 81.56 | Add to Cart |
| 7 | 240481 | Plug Screw 1/8-27npt | 7.42 | Add to Cart |
| 8 | 230415 | Gasket Ring A 6x10 Din 7603 | 0.18 | Add to Cart |
| 9 | 641071 | Hex.screw Iso 4017-m6x6-8.8 | 0.76 | Add to Cart |
| 10 | 966502 | Airbox Pressure Sensor | 236.87 | Add to Cart |
| 11 | 430205 | O-ring 6,4x1,8 | 0.39 | Add to Cart |
| 12 | 244216 | Washer 6,2/14/1 | 1.53 | Add to Cart |
| 13 | 840392 | Allen Screw M6x14 Din 912 | 0.58 | Add to Cart |
| 14 | 960151 | Rubber Puffer 20x15xm6 | 46.61 | Add to Cart |
| 15 | 853010 | Cable Clamp 32/m6 | 38.82 | Add to Cart |
| 16 | 927941 | Washer 6,0/12/1 | 0.18 | Add to Cart |
| 17 | 842041 | Lock Nut M6 | 0.18 | Add to Cart |
| 18 | 874270 | T-piece 6-6-6 | 8.32 | Add to Cart |
| 19 | 851370 | Clamp 8 | 3.26 | Add to Cart |
| 20 | 951595 | Clamp 7,3 | 2.68 | Add to Cart |
| 21-26 | 860660 | Hose 4x7 Per Meter | 63.26 | Add to Cart |
| 27-31 | 966060 | Spiral Hose & Band | 30.49 | Add to Cart |
| 32 | 874680 | Drip Tray Set | 186.38 | Add to Cart |
| 33 | 860984 | Air Intake Hose | 86.35 | Add to Cart |
| 34 | 966435 | Temp Sensor | 512.83 | Add to Cart |
| 34 | 966430 | Resistance Thermometer | 545.97 | Add to Cart |
| 35 | 881040 | 3-way Solenoid Valve Retrofit Kit | 728.14 | Add to Cart |
| 35 | 881040 | 3-way Solenoid Valve Retrofit Kit | 728.14 | Add to Cart |
| 35 | 881040 | 3-way Solenoid Valve Retrofit Kit | 728.14 | Add to Cart |
| 36 | 840392 | Allen Screw M6x14 Din 912 | 0.58 | Add to Cart |
| 37 | 945831 | Lock Washer A6 Din 128 | 0.18 | Add to Cart |
| 38 | 887130 | Fuel Pressure Regulator Assy. | 540.2 | Add to Cart |
| 39 | 241187 | Hex.screw M6x16 | 0.18 | Add to Cart |
| 40 | 874290 | Fuel Hose Assy. | 199.49 | Add to Cart |
| 41 | 874280 | Fuel Hose Assy. | 227.22 | Add to Cart |
| 42 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.18 | Add to Cart |
| 43 | 241073 | Banjo Bolt M10x1x19 | 64.98 | Add to Cart |
| 44 | 956314 | Hose Nipple 4/6 Din7642 | 24.78 | Add to Cart |
| 45 | 851116 | Cable Clamp 5/m5 | 33.43 | Add to Cart |
| 46 | 241842 | Allen Screw M5x12 | 1.53 | Add to Cart |
| 47 | 842032 | Lock Nuyt M5-6.6 | 0.18 | Add to Cart |
| 49 | 861931 | Adaptor For Tp | 126.48 | Add to Cart |
| 50 | 640181 | Nla | 6.32 | Add to Cart |
| 51 | 966482 | Tp Sensor | 752.48 | Add to Cart |
| 52 | 944152 | Washer B 4,3 Din 4017 - M6x10 | 6.89 | Add to Cart |
| 53 | 841030 | Combined Screw M4x22 | 2.11 | Add to Cart |
| 54 | 881365 | Fuel Pump, Electric | 863.06 | Add to Cart |
| 55 | 241072 | Banjo Bolt M10x1x30 | 20.32 | Add to Cart |
| 56 | 956314 | Hose Nipple 4/6 Din7642 | 24.78 | Add to Cart |
| 57 | 963143 | Idle Jet 35 | 70.33 | Add to Cart |
