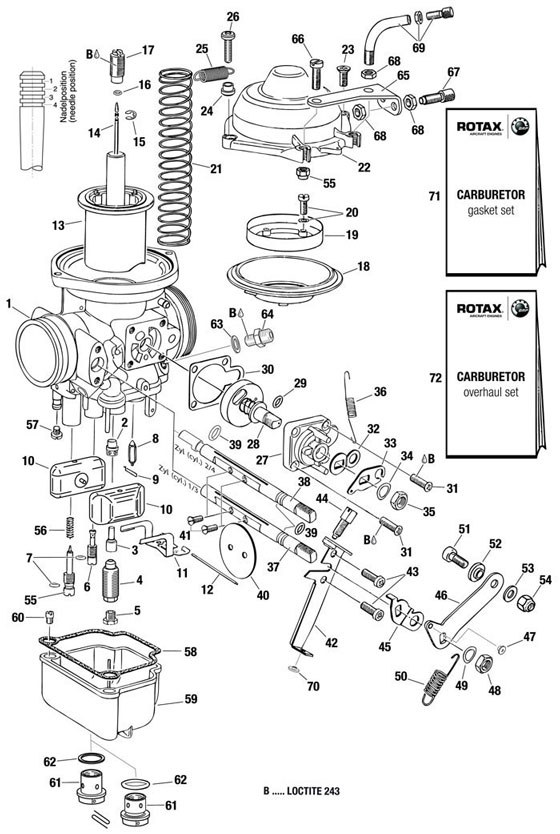

fig. 73-00-00-3
CARBURETOR - SINGLE PARTS 914 SERIES For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1- | 892520 | Constant Depression Carb. Assy 1/3 | 961.15 | Add to Cart |
| 1- | 892525 | Constant Depression Carb. Assy 2/4 | 1715 | Add to Cart |
| 2 | 961200 | Diffuser | 33.21 | Add to Cart |
| 3 | 261607 | Needle Jet 2,72 | 44.12 | Add to Cart |
| 4 | 963135 | Mixing Tube | 42.62 | Add to Cart |
| 5- | 268997 | Main Jet 156 | 24.27 | Add to Cart |
| 5- | 268996 | Main Jet 158 | 24.27 | Add to Cart |
| 5- | 268985 | Main Jet 160 | 24.27 | Add to Cart |
| 5- | 268993 | Main Jet #164 | 24.27 | Add to Cart |
| 6 | 963143 | Idle Jet 35 | 70.33 | Add to Cart |
| 7 | 831713 | O-ring Din 3771-3,2x1,8 | 4.95 | Add to Cart |
| 8 | 261708 | Float Needle Valve W.viton Tip | 60.54 | Add to Cart |
| 9 | 261710 | Float Needle Clip | 3.81 | Add to Cart |
| 10 | 861189 | Floats Qty 2 | 104.32 | Add to Cart |
| 11 | 861192 | Float Bracket | 17.4 | Add to Cart |
| 12 | 929702 | Pin | 7.4 | Add to Cart |
| 13 | 961231 | Carburetor Piston | 588.59 | Add to Cart |
| 14 | 961215 | Jet Needle | 36.13 | Add to Cart |
| 15 | 945786 | Circlip | 2.93 | Add to Cart |
| 16 | 950430 | O-ring 2,5x1,5-n | 3.32 | Add to Cart |
| 17 | 961293 | Fixation Screw | 23.71 | Add to Cart |
| 18 | 861116 | Diaphragm | 92.69 | Add to Cart |
| 19 | 961241 | Retaining Ring | 32.6 | Add to Cart |
| 20 | 841210 | Combined Screw M4x12 | 3.02 | Add to Cart |
| 21 | 938365 | Throttle Valve Spring | 24.27 | Add to Cart |
| 22 | 961250 | Chamber Top | 264.35 | Add to Cart |
| 23 | 841341 | Countersunk Screw M5x12 | 2.87 | Add to Cart |
| 24 | 847910 | Distance Sleeve | 24.65 | Add to Cart |
| 25 | 838242 | Spring | 17.02 | Add to Cart |
| 26 | 640251 | Slotted Pan-head Screw M5x20 | 3.8 | Add to Cart |
| 27 | 961281 | Choke Housing | 55.56 | Add to Cart |
| 28- | 961273 | Choke Valve Assy., 1/3 | 158.2 | Add to Cart |
| 28- | 961278 | Choke Valve Assy., 2/4 | 158.2 | Add to Cart |
| 29 | 950420 | O-ring 5x1,5-n | 16.14 | Add to Cart |
| 30 | 950030 | Gasket | 13.73 | Add to Cart |
| 31 | 841360 | Slotted Head Screw M4x14 | 4.79 | Add to Cart |
| 32 | 848241 | Choke Lever Inside | 7.79 | Add to Cart |
| 33 | 848245 | Choke Lever Outside | 17.97 | Add to Cart |
| 34 | 845035 | Spring Washer 8,3/13,6/0,4 | 5.23 | Add to Cart |
| 35 | 942290 | Hex.nut M8x1 | 4.79 | Add to Cart |
| 36 | 938286 | Return Spring | 17.02 | Add to Cart |
| 37 | 963992 | Throttle Shaft "short" | 36.31 | Add to Cart |
| 38 | 963994 | Throttle Shaft On 914 (2/4) | 131.73 | Add to Cart |
| 39 | 950020 | O-ring 6x1,9 | 15.55 | Add to Cart |
| 40 | 963666 | Throttle Valve | 23.71 | Add to Cart |
| 41 | 941200 | Slotted Head Screw M3x6 | 4.79 | Add to Cart |
| 42- | 961262 | Cable Support Assy. | 63.69 | Add to Cart |
| 42- | 961267 | Cable Support Assy. | 65.01 | Add to Cart |
| 43 | 240357 | Slotted Head Screw M4x10 | 3.41 | Add to Cart |
| 44 | 963162 | Throttle Valve Stop Screw | 6.13 | Add to Cart |
| 45- | 848232 | Stop Lever | 9.34 | Add to Cart |
| 45- | 848230 | Stop Lever | 8.77 | Add to Cart |
| 46-47 | 963026 | Throttle Valve Lever 1/3 | 79.14 | Add to Cart |
| 46-47 | 963021 | Throttle Valve Lever 2/4 | 79.14 | Add to Cart |
| 47 | 963015 | Sleeve | 7.4 | Add to Cart |
| 48 | 942290 | Hex.nut M8x1 | 4.79 | Add to Cart |
| 49 | 845035 | Spring Washer 8,3/13,6/0,4 | 5.23 | Add to Cart |
| 50 | 938288 | Return Spring | 32.51 | Add to Cart |
| 51 | 241848 | Allen Screw M5 X 12 | 18.53 | Add to Cart |
| 52 | 847741 | Graduated Sleeve | 22.96 | Add to Cart |
| 53 | 827801 | Washer A 5,5 | 0.21 | Add to Cart |
| 54 | 842032 | Lock Nuyt M5-6.6 | 0.21 | Add to Cart |
| 55 | 961222 | Idle Mixture Screw | 42.45 | Add to Cart |
| 56 | 239463 | Compression Spring | 17.02 | Add to Cart |
| 57 | 941740 | Slotted Head Screw M3,5x5 | 4.47 | Add to Cart |
| 58 | 830721 | Gasket | 40.73 | Add to Cart |
| 59-60 | 963238 | Float Chamber 2/4, 914 | 158.2 | Add to Cart |
| 59-60 | 963236 | Float Chamber 1/3, 914 | 158.2 | Add to Cart |
| 60- | 268758 | Jet 85 | 24.27 | Add to Cart |
| 60- | 268762 | Jet 105 | 24.27 | Add to Cart |
| 60- | 268763 | Jet 130 | 24.27 | Add to Cart |
| 60- | 268765 | Jet 140 | 24.27 | Add to Cart |
| 61-62 | 963281 | Attachment Screw Assy | 189 | Add to Cart |
| 62 | 631772 | O-ring, 15,5x1,78-n | 15.55 | Add to Cart |
| 63 | 950141 | Gasket Ring A 8x13 Din 7603 | 0.26 | Add to Cart |
| 64 | 941853 | Fuel Line Connector | 82.55 | Add to Cart |
| 65- | 851072 | Support Left | 21.45 | Add to Cart |
| 65- | 851074 | Support Right | 21.45 | Add to Cart |
| 66 | 240761 | Slotted Head Screw M5x16 | 2.29 | Add to Cart |
| 67 | 241440 | Adjustment Screw M6x0,75 | 8.88 | Add to Cart |
| 68 | 942541 | Hex. Nut M6x0,75 Hight 3 Mm | 4.79 | Add to Cart |
| 69 | 861640 | Bent Tube Assy., | 60.54 | Add to Cart |
| 70 | 963010 | Sleeve | 7.4 | Add to Cart |
| 71 | 996946 | Gasket Set Carburetor | 177.99 | Add to Cart |
| 72 | 889534 | Carb Overhaul Kit | 262.44 | Add to Cart |
