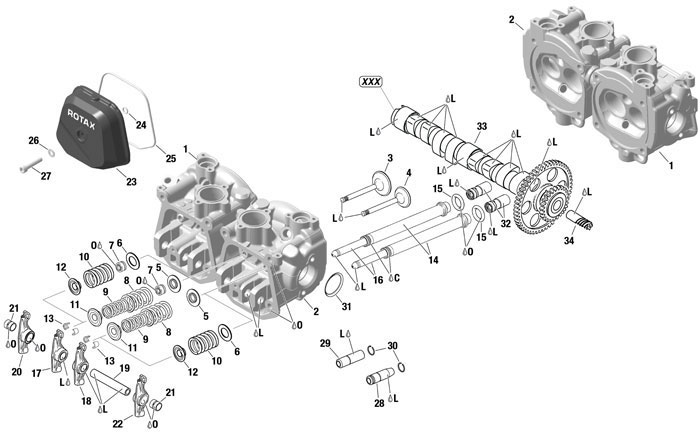

fig. 72-20-00-5
CYLINDERHEAD, VALVE TRAIN, VALVE COVER For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1- | 413237 | Cylinder Head 2/3 Assy | 1031.51 | Add to Cart |
| 2- | 413248 | Cylinder Head 1/4 Assy | 1011.51 | Add to Cart |
| 1- | 413186 | Cylinder Head 2/3 Assy., 912uls | 968.4 | Add to Cart |
| 2- | 413196 | Cylinder Head 1/4 Assy.,912uls | 962.3 | Add to Cart |
| 3 | 854101 | 854 101 Use 854 102 | 119.83 | Add to Cart |
| 4 | 854585 | Exhaust Valve 32mm | 229.77 | Add to Cart |
| 5 | 242032 | Hex.nut Bm6 | 0.2 | Add to Cart |
| 6 | 926210 | Shim 16/27.4/1 | 1.68 | Add to Cart |
| 7 | 230810 | Valve Stem Seal | 5.04 | Add to Cart |
| 10 | 838156 | Valve Spring | 19.53 | Add to Cart |
| 12 | 854188 | Valve Spring Retainer | 45.18 | Add to Cart |
| 13 | 253092 | Valve Cotter | 3.59 | Add to Cart |
| 14 | 924440 | Oil Return Tube | 13.55 | Add to Cart |
| 15 | 850930 | O-ring 16x5 | 3.36 | Add to Cart |
| 16 | 854862 | Valve Push-rod Assy., | 82.25 | Add to Cart |
| 19- | 854193 | Rocker Arm Shaft | 52.03 | Add to Cart |
| 19- | 854197 | Oversize Rocker Arm Shaft | 98.64 | Add to Cart |
| 20 | 854387 | Rocker Arm Left | 329.84 | Add to Cart |
| 21 | 933396 | Bushing Vespel | 77.92 | Add to Cart |
| 22 | 854397 | Rocker Arm Right | 329.84 | Add to Cart |
| 23- | 612263 | Valve Cover | 112.56 | Add to Cart |
| 23- | 612262 | Valve Cover 914 | 112.01 | Add to Cart |
| 23- | 612260 | Valve Cover | 112.01 | Add to Cart |
| 24 | 430205 | O-ring 6,4x1,8 | 0.43 | Add to Cart |
| 25 | 250285 | O-ring 105x2,5 | 9.15 | Add to Cart |
| 26 | 927941 | Washer 6,0/12/1 | 0.2 | Add to Cart |
| 27 | 840887 | Allen Screw M6x30 Din 912 | 1.07 | Add to Cart |
| 28 | 253114 | Inlet Valve Guide | 18.92 | Add to Cart |
| 29 | 854224 | Valve Guide 912s | 21.31 | Add to Cart |
| 30 | 245440 | Retaining Ring A12 Din 7999 | 0.43 | Add to Cart |
| 31 | 931920 | Gasket Ring | 112.11 | Add to Cart |
| 32 | 881832 | Hydraulic Valve Tappet Set | 1206.01 | Add to Cart |
