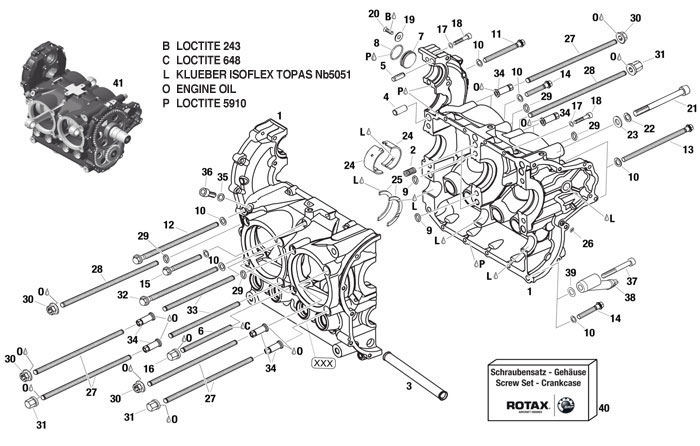

fig. 72-20-00-2
CRANKCASE
(from crankcase S/N: 06.0010 up to 14.2384) For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 6 | 840191 | Stud M8x105 | 14.74 | Add to Cart |
| 7 | 944222 | Blinding Shim | 19.73 | Add to Cart |
| 8 | 430061 | O-ring 26.7 X 1.8 | 1.07 | Add to Cart |
| 10 | 944131 | Washer 8 Mm | 0.84 | Add to Cart |
| 11 | 840062 | Alen M8x80 | 7.77 | Add to Cart |
| 12 | 840091 | Allen Screw M8x140 Din 912-10.9 | 22.62 | Add to Cart |
| 13 | 840101 | Hex Collar Screw M8xx150 | 14.14 | Add to Cart |
| 14 | 940071 | Hex Screw M8 X 45 | 9.15 | Add to Cart |
| 15 | 440406 | M8 X 65 Collar Hex Screw | 18.1 | Add to Cart |
| 16 | 842476 | Collar Cap Nut M8 | 40.78 | Add to Cart |
| 17 | 827962 | Washer 6,4 Din 125 | 0.2 | Add to Cart |
| 18 | 840887 | Allen Screw M6x30 Din 912 | 1.07 | Add to Cart |
| 19 | 227280 | Thrust Washer | 2.52 | Add to Cart |
| 20 | 940316 | Countersunk Screw M5x12 | 0.64 | Add to Cart |
| 21- | 941487 | Allen Screw M10x110 Din 912 | 5.48 | Add to Cart |
| 21- | 941557 | Nla | 12.77 | Add to Cart |
| 22 | 945833 | Lock Washer A10 | 0.43 | Add to Cart |
| 23 | 927411 | Washer 10,5 | 0.2 | Add to Cart |
| 26 | 831929 | O-ring 5x2 | 1.07 | Add to Cart |
| 27 | 840141 | Stud M8 X 186 | 13.55 | Add to Cart |
| 28 | 840171 | Stud M8 X 200 | 13.93 | Add to Cart |
| 29- | 431570 | O-ring 10,82x1.78-n | 0.43 | Add to Cart |
| 29- | 431411 | Gasket | 7.58 | Add to Cart |
| 30 | 842610 | Hex Nut M8 | 0.18 | Add to Cart |
| 31 | 842476 | Collar Cap Nut M8 | 40.78 | Add to Cart |
| 32 | 440686 | Allen Screw M8x130 | 20.9 | Add to Cart |
| 33 | 840131 | Stud M8x138 | 7.95 | Add to Cart |
| 34 | 929116 | Thread Sleeve M8 | 53.38 | Add to Cart |
| 35 | 950141 | Gasket Ring A 8x13 Din 7603 | 0.48 | Add to Cart |
| 36 | 240072 | Allen Screw M8x20 | 0.43 | Add to Cart |
| 37 | 440107 | Allen Screw M8x50 Din 912 | 2.32 | Add to Cart |
| 38 | 953306 | Manifold Bracket Assy | 395.42 | Add to Cart |
| 39- | 926400 | Washer 8,4/15/0,5 | 3.36 | Add to Cart |
| 39- | 926401 | Washer 8,4/15/1 | 3.59 | Add to Cart |
| 39- | 926402 | Washer 8,4/15/1,5 | 3.77 | Add to Cart |
| 40 | 881120 | Crank Bolt Kit From 06.0010 | 764.68 | Add to Cart |
