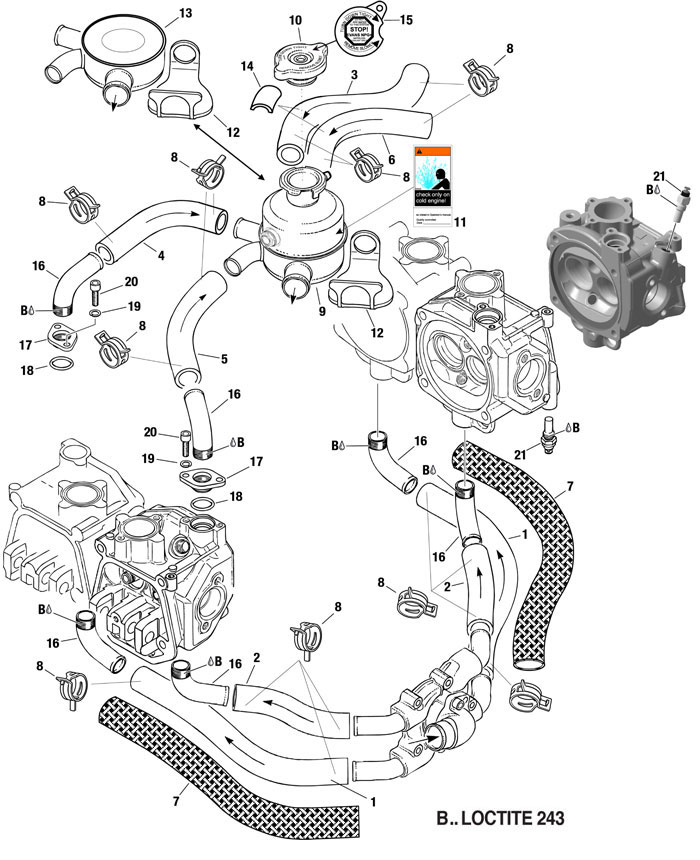

fig. 75-20-00-2
EXPANSION TANK WITH HOSES AND CONNECTIONS For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-5 | 922250 | Water Hose Din 73411 - 17x41-b-epdm - Per Meter | 115.7 | Add to Cart |
| 1 | 922362 | 280 Mm Hose | 44.99 | Add to Cart |
| 2 | 922360 | 180 Mm Hose | 30.48 | Add to Cart |
| 3 | 922361 | 285 Mm Hose | 45.34 | Add to Cart |
| 4 | 922363 | 200 Mm Hose | 32.02 | Add to Cart |
| 5 | 922364 | 85 Mm Hose | 12.95 | Add to Cart |
| 6 | 922192 | Water Tube 90 Degree | 10.15 | Add to Cart |
| 7 | 860650 | Protection Tube (heat Resistant) | 283.56 | Add to Cart |
| 8 | 851645 | Spring Type Clamp 25 | 3.15 | Add to Cart |
| 9-12 | 922666 | Expansion Tank | 356.53 | Add to Cart |
| 10 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 58.37 | Add to Cart |
| 11 | 897506 | Warning Label | 5.25 | Add to Cart |
| 12 | 860829 | Rubber Plate | 28.97 | Add to Cart |
| 13 | 922268 | 922 268 Use 922 265 | 361.78 | Add to Cart |
| 14 | 922543 | Nla | 15.94 | Add to Cart |
| 15 | 898490 | Warning Label Evans Coolant | 3.22 | Add to Cart |
| 16- | 922236 | Bent Socket 80 Degrees | 31.45 | Add to Cart |
| 16- | 922238 | Bent Socket 45 Degrees | 31.45 | Add to Cart |
| 17 | 922303 | Flange | 26.47 | Add to Cart |
| 18 | 950180 | O-ring 19-2 | 0.84 | Add to Cart |
| 19 | 827962 | Washer 6,4 Din 125 | 0.2 | Add to Cart |
| 20 | 241935 | Allen Screw M6x20 | 0.64 | Add to Cart |
| 21 | 965531 | Temperature Sensor | 68.71 | Add to Cart |
