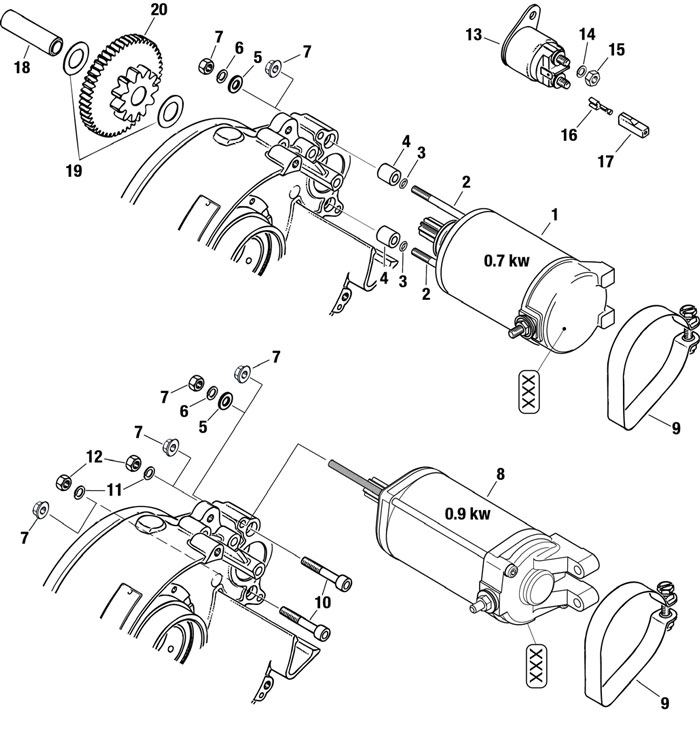

fig. 80-10-00-1
ELECTRIC STARTER, STARTER RELAY For ROTAX 912ULS
Click on Number to order Part
Fig. | Part Number | Description | Unit/Price | Add to Cart |
---|---|---|---|---|
1-7 | 685974 | Electric Starter Assy | 952.54 | Add to Cart |
2 | 840636 | Stud M5x150/16 | 26.18 | Add to Cart |
3 | 950420 | O-ring 5x1,5-n | 16.14 | Add to Cart |
4 | 847248 | Spacer 5,4/10/12 | 22.06 | Add to Cart |
5 | 927574 | Washer 5,3 | 0.18 | Add to Cart |
6 | 945830 | Lock Washer A5 | 0.21 | Add to Cart |
7- | 942311 | Hex. Nut M5 | 30.33 | Add to Cart |
7- | 242072 | Hex Nut M5 8.8 | 0.23 | Add to Cart |
4-6,8-12 | 889751 | Electric Starter Assy Hd | 518.34 | Add to Cart |
9 | 851020 | Clamp 76 | 25.28 | Add to Cart |
10 | 941792 | Allen Screw M5x45 | 1.02 | Add to Cart |
11 | 945830 | Lock Washer A5 | 0.21 | Add to Cart |
12 | 842032 | Lock Nuyt M5-6.6 | 0.21 | Add to Cart |
13-15 | 992818 | Starter Relay Assy | 103.25 | Add to Cart |
14 | 945831 | Lock Washer A6 Din 128 | 0.21 | Add to Cart |
15 | 242214 | Hex.nut M6 | 0.23 | Add to Cart |
16 | 960719 | Connector Sheath | 0.78 | Add to Cart |
17 | 864011 | Faston Connector 6,3x0,8 | 1.14 | Add to Cart |
18 | 837102 | Idle Gear Shaft | 27.03 | Add to Cart |
19 | 827261 | Thrust Washer 12,5/21,5/1 | 0.78 | Add to Cart |
20 | 834156 | Idle Gear 50/11 T, | 218.34 | Add to Cart |
