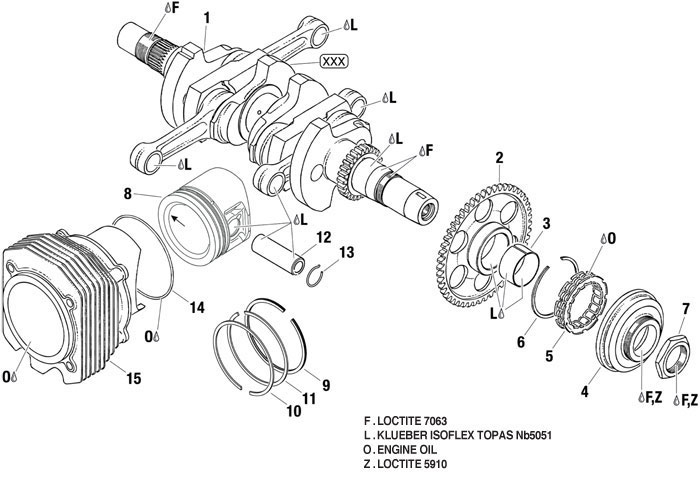

fig. 72-20-00-4
CRANKSHAFT, PISTON, CYLINDER, SPRAG CLUTCH For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 2 | 834122 | Free Wheel Gear 50 T | 443.56 | Add to Cart |
| 3 | 933311 | Bearing Bushing | 93.82 | Add to Cart |
| 4 | 852402 |
Sprag Clutch Housing (Superceded : 852406) |
345.72 | Add to Cart |
| 5 | 958856 | Sprag Clutch 51,710x68,377x13 | 361.35 | Add to Cart |
| 6 | 845425 | Circlip 70 | 8.72 | Add to Cart |
| 7 | 842574 | Hex. Nut M34x1,5 Lh | 78.05 | Add to Cart |
| 8-11a | 996542-1 |
Piston 79.50 Red Dot (Superceded : 996549) |
393.06 | Add to Cart |
| 8-11b | 888382-1 |
Piston Assy 84,00mm Red (Superceded : 888382) |
414.38 | Add to Cart |
| 9- | 215400 | Oil Scraper Ring 79,5 Mm | 28 | Add to Cart |
| 9- | 815230 | Oil Scraper Ring | 73.62 | Add to Cart |
| 10- | 215420 | Tapered Compression Ring 79,5 Mm | 31.7 | Add to Cart |
| 10- | 815280 | Tapered Compression Ring | 54.5 | Add to Cart |
| 11- | 215590 | Rectangular Ring 79,5/72,9x1,5 | 57.61 | Add to Cart |
| 11- | 815257 | Rectangular Ring 84/77x1,5 | 94.93 | Add to Cart |
| 12- | 916420 | Nla | 159.18 | Add to Cart |
| 12- | 916356 | Piston Pin 20x12x55,3 | 93.24 | Add to Cart |
| 13 | 845106 | Mono Hook Circlip | 2.88 | Add to Cart |
| 14 | 250510 | O-ring 87x2 | 30.35 | Add to Cart |
| 15- | 913229-1 |
Cylinder - Type A (red Dot) (Superceded : 913226-1) |
775.33 | Add to Cart |
| 15- | 913226-2 | Cylinder - Type B (green Dot) | 775.33 | Add to Cart |
