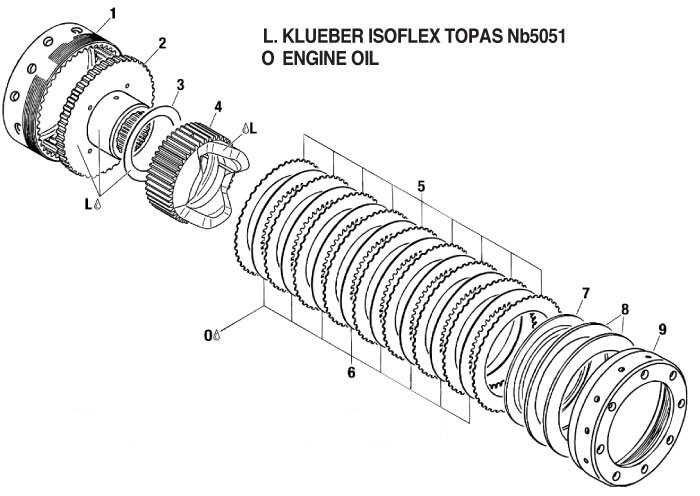

fig. 72-10-00-3
OVERLOAD CLUTCH For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 958912 | Clutch Drum | 524.72 | Add to Cart |
| 2 | 958906 | Clutch Hub | 458.92 | Add to Cart |
| 3 | 944080 | Thrust Washer 45,2/60/1 | 27.55 | Add to Cart |
| 4- | 958520 | Dog Hub | 360.36 | Add to Cart |
| 4- | 958526 | Dog Hub 30 Degree | 420.52 | Add to Cart |
| 5 | 958932 | Steel Friction Plate 1.0 Mm | 16.49 | Add to Cart |
| 6 | 958946 | Sinter Friction Plate 1,8 Mm | 80.26 | Add to Cart |
| 7 | 958951 | Support Ring | 119.32 | Add to Cart |
| 8 | 838161 | Disk Spring 100x76x2,7 | 108.76 | Add to Cart |
| 9 | 842644 | Collar Nut M102x1,5 | 272.99 | Add to Cart |
