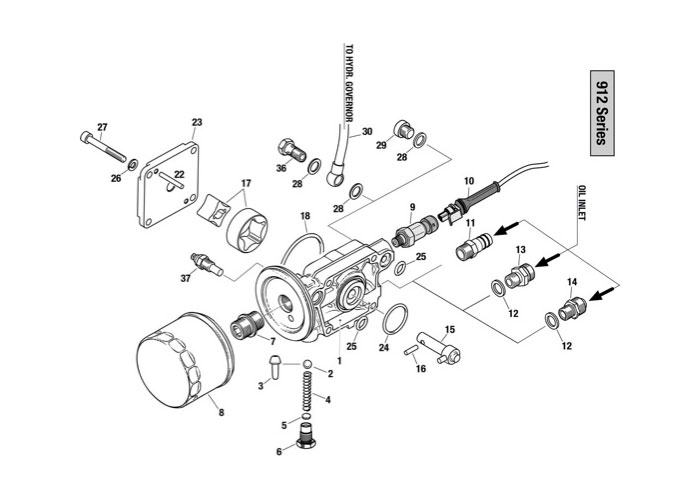

fig. 79-20-00-2
OIL PUMP ASSY., OIL FILTER, OIL TEMPERATURE SENSOR, OIL PRESSURE SENSOR For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 911815 | Oil Pump Housing Assy., | 573.6 | Add to Cart |
| 2 | 432681 | Ball 8,5 Mm | 2.43 | Add to Cart |
| 3 | 857230 | Valve Piston | 60.37 | Add to Cart |
| 4 | 838122 | Compression Spring L39,5 | 1.46 | Add to Cart |
| 5 | 227055 | Shim 8,2x1,5 | 0.59 | Add to Cart |
| 6 | 841983 | Plug Screw M12x1 | 103.97 | Add to Cart |
| 7 | 924424 | Oil Filter Nipple | 47.57 | Add to Cart |
| 8 | 825016 | Oil Filter, Rotax | 30.81 | Add to Cart |
| 9 | 456180 | Oil Pressure Sensor | 511.68 | Add to Cart |
| 10 | 864250 | Oil Pressure Sensor Wire Assy | 171.15 | Add to Cart |
| 11 | 840461 | Nipple 13,2/9,5-m14x1,5 | 27.5 | Add to Cart |
| 12 | 230387 | Gasket Ring 14,2/18/2 | 0.79 | Add to Cart |
| 13 | 956577 | Adaptor M 18 X 1.5 / M14 X 1.5 | 76.65 | Add to Cart |
| 14 | 956643 | Adaptor 3/4-16 Unf M14 X 1.5 | 85.23 | Add to Cart |
| 15 | 837129 | Oil Pump Shaft Assy., | 64.37 | Add to Cart |
| 16 | 232732 | Neele Pin 4 X 15,8 G2 | 0.67 | Add to Cart |
| 17 | 956278 | Suction Inner And Outer Rotor | 51.82 | Add to Cart |
| 18 | 430411 | O-ring 57-3 | 4.82 | Add to Cart |
| 22 | 232732 | Neele Pin 4 X 15,8 G2 | 0.67 | Add to Cart |
| 23 | 911711 | Oil Pump Cover | 211.38 | Add to Cart |
| 24 | 950410 | O-ring 30x2,5 | 1.74 | Add to Cart |
| 25 | 250460 | O-ring 11-2,7 | 1.12 | Add to Cart |
| 26 | 945831 | Lock Washer A6 Din 128 | 0.21 | Add to Cart |
| 26 | 827962 | Washer 6,4 Din 125 | 0.21 | Add to Cart |
| 27 | 241762 | Allen Screw M6x50 | 1.12 | Add to Cart |
| 28 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.21 | Add to Cart |
| 29 | 641733 | Plug Screw M10x1 | 20.69 | Add to Cart |
| 30 | 956460 | Pressure Oil Line Assy., | 334.51 | Add to Cart |
| 36 | 241073 | Banjo Bolt M10x1x19 | 74.73 | Add to Cart |
| 37 | 965531 | Temperature Sensor | 71.83 | Add to Cart |
