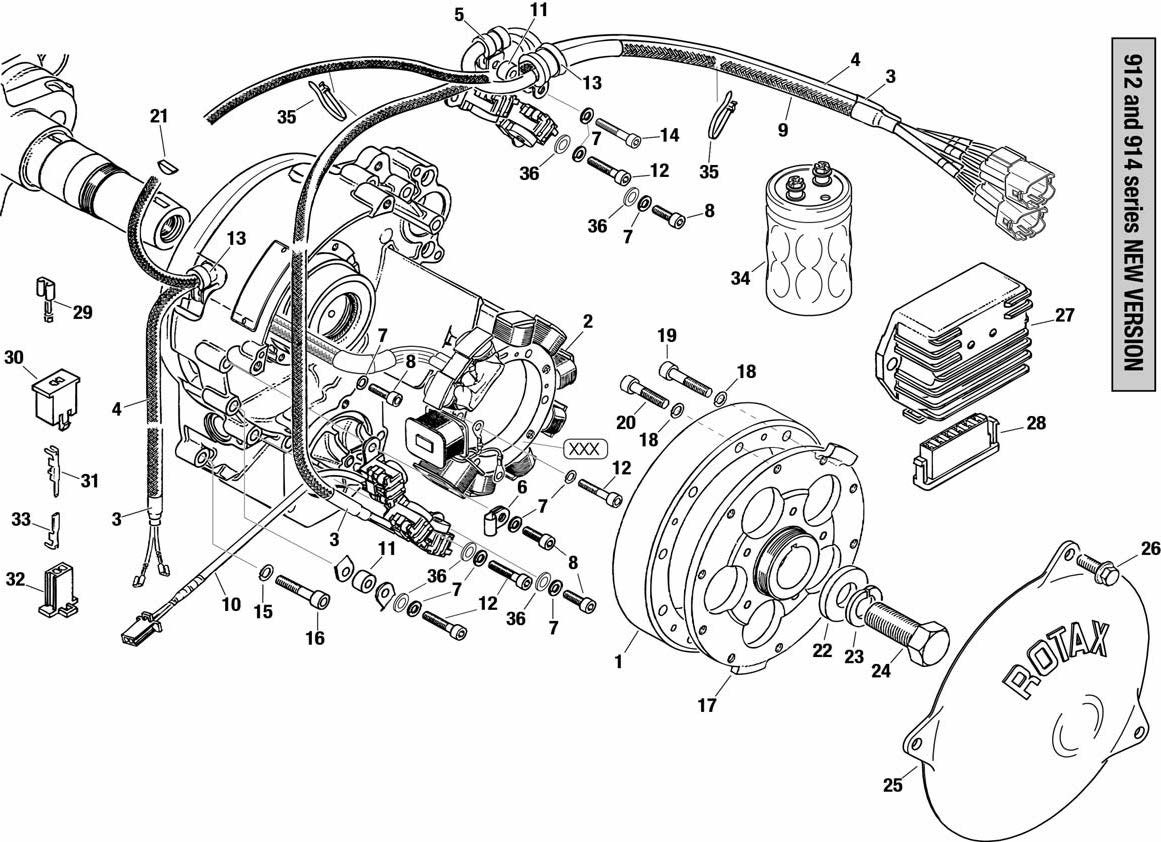

fig. 24-20-00
MAGNETO-GENERATOR, PICK UP, RECTIFIER REGULATOR For ROTAX 912ULS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 965192 | Magneto Ring | 329.72 | Add to Cart |
| 2-6 | 891095 | Stator Assy. | 693.99 | Add to Cart |
| 3 | 860530 | Shrink Tube 9,5x1,27 | 110.34 | Add to Cart |
| 4 | 965623 | Screening Metal Braid 460 Mm | 66.9 | Add to Cart |
| 5 | 851111 | Cable Clamp 8/m5 | 62.07 | Add to Cart |
| 6 | 851566 | Cable Clamp 7/m5 | 8.05 | Add to Cart |
| 7 | 945830 | Lock Washer A5 | 0.21 | Add to Cart |
| 8 | 840514 | Allen Screw M5x16 | 0.21 | Add to Cart |
| 9- | 965179 | Trigger Coil Kit | 1197.87 | Add to Cart |
| 9- | 965176 | Nla | 1254.88 | Add to Cart |
| 10 | 264087 | Trigger Coil | 164.39 | Add to Cart |
| 11 | 847660 | Spacer 5,2/12/7,4 | 31.88 | Add to Cart |
| 12 | 240187 | Allen Screw M5x25 | 0.21 | Add to Cart |
| 13 | 851250 | Cable Clamp 15/m5 | 6.8 | Add to Cart |
| 14 | 940882 | Allen Screw M5x30 | 0.45 | Add to Cart |
| 15 | 827962 | Washer 6,4 Din 125 | 0.21 | Add to Cart |
| 16 | 840888 | Allen Screw M6x30 Din 912 | 0.67 | Add to Cart |
| 17- | 966874 | Fly Wheel Hub, 912 Ul/uls | 867.26 | Add to Cart |
| 17- | 966877 | Fly Wheel Hub | 653.72 | Add to Cart |
| 18 | 845381 | Lock Washer A6 | 0.59 | Add to Cart |
| 19 | 840883 | Allen Screw M6x30 | 1.71 | Add to Cart |
| 20 | 840863 | Allen Screw M6x25 | 1.14 | Add to Cart |
| 21 | 246571 | Woodruff Key 4x5 Din 6888 | 6.44 | Add to Cart |
| 22 | 944073 | Washer 17/36/5 | 105.33 | Add to Cart |
| 23 | 945769 | Lock Washer 16 | 1.31 | Add to Cart |
| 24 | 841602 | Hex. Screw M16x1,5x40 | 6.87 | Add to Cart |
| 25 | 810980 | Ignition Cover | 15.63 | Add to Cart |
| 26 | 640172 | Hex Screw M6x16 | 0.67 | Add to Cart |
| 27-28 | 965349 | Rectifier Regulator | 257.9 | Add to Cart |
| 28 | 965335 | Connector Housing | 15.41 | Add to Cart |
| 29 | 864011 | Faston Connector 6,3x0,8 | 1.64 | Add to Cart |
| 30 | 265252 | Connector Housing, Two-pole | 5.73 | Add to Cart |
| 31 | 265272 | Faston Connector | 1.76 | Add to Cart |
| 32 | 265250 | Connector Housing, Two-pole | 36.05 | Add to Cart |
| 33 | 265270 | Faston Connector | 10.81 | Add to Cart |
| 34 | 966435 | Temp Sensor | 589.75 | Add to Cart |
| 35 | 866710 | Clamp 142x2,5 Mm | 0.3 | Add to Cart |
| 36 | 827801 | Washer A 5,5 | 0.21 | Add to Cart |
