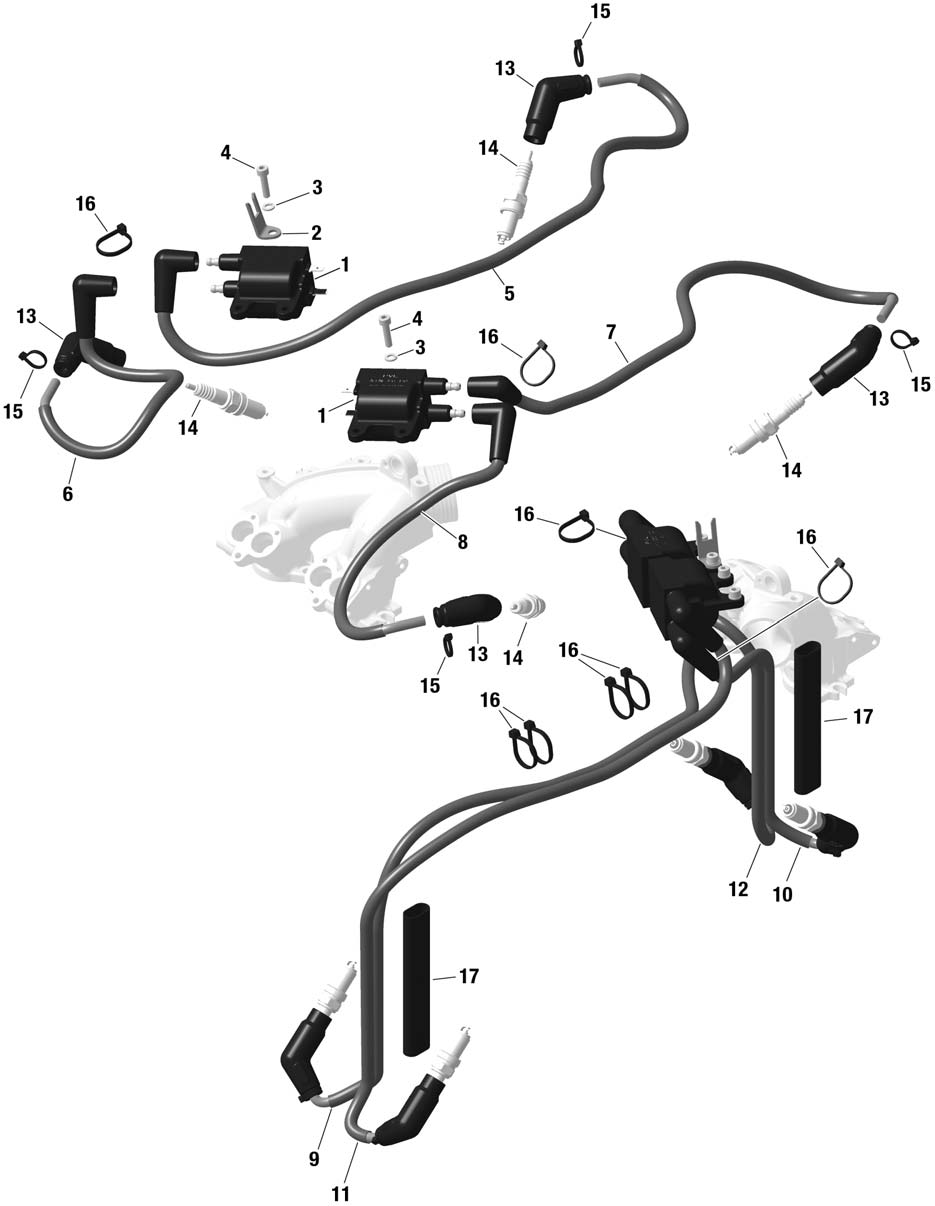

fig. 74-20-00-1
IGNITION COILS, IGNITION CABLE, SPARK PLUG CONNECTOR, SPARK PLUG For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 665613 | Double Ignition Coil | 238.76 | Add to Cart |
| 2 | 951490 | Connector Bracket | 7.1 | Add to Cart |
| 3 | 945830 | Lock Washer A5 | 0.2 | Add to Cart |
| 4 | 441341 | Allen Screw M5x20 Din 912 | 1.45 | Add to Cart |
| 5 | 864728 | 864 728 Use 864 688 | 391.46 | Add to Cart |
| 6 | 665551 | Ignition Cable Assy. | 42.27 | Add to Cart |
| 7 | 864728 | 864 728 Use 864 688 | 391.46 | Add to Cart |
| 8 | 864728 | 864 728 Use 864 688 | 391.46 | Add to Cart |
| 9 | 665554 | Ignition Cable Assy. | 56.83 | Add to Cart |
| 10 | 665555 | Ignition Cable Assy. | 43.76 | Add to Cart |
| 11 | 665556 | Ignition Cable Assy. | 52.43 | Add to Cart |
| 12 | 665557 | Ignition Cable Assy. | 43.26 | Add to Cart |
| 13 | 265249 | Spark Plug Connector | 76.76 | Add to Cart |
| 14 | 297656 | Spark Plug 12 | 35.57 | Add to Cart |
| 15 | 866718 | Tie Wrap 94x2,5 Mm | 0.2 | Add to Cart |
| 16 | 866714 | Tie Wrap 142x3,2 Mm | 0.08 | Add to Cart |
| 17 | 860734 | Glass Fiber-silicon Sheating 120 | 14.14 | Add to Cart |
