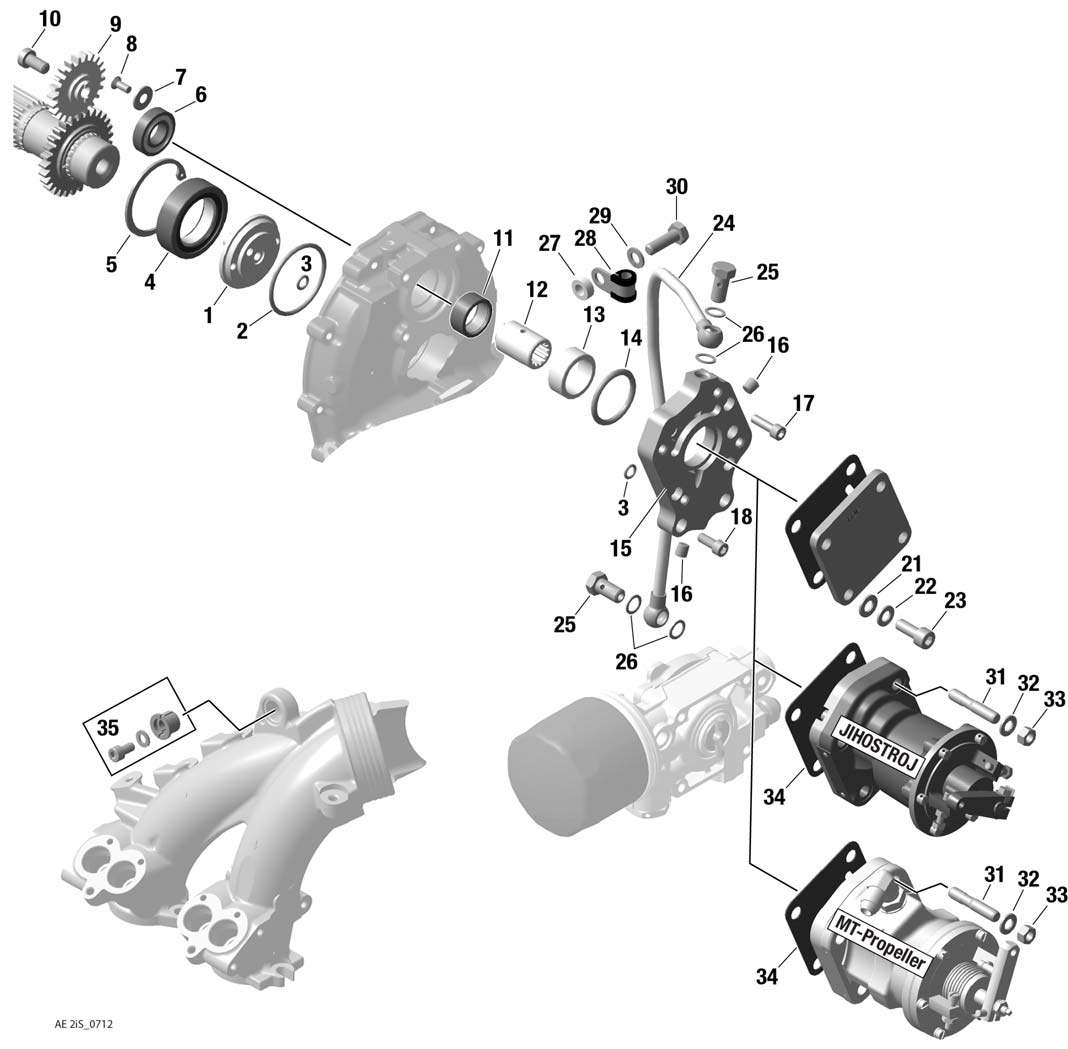

fig. 61-20-00-1
HYDR. GOVERNOR ARRANGEMENT FOR CONSTANT SPEED PROPELLER For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 3 | 830415 | O-ring 7x2 | 7.66 | Add to Cart |
| 6 | 832362 | 832 362 Use 832 363 | 48.02 | Add to Cart |
| 9 | 834245 | Vacuum Pump Gear 22 T., | 242.9 | Add to Cart |
| 10 | 941521 | 941 521 Use 941 522 | 1.59 | Add to Cart |
| 11 | 232925 | Needle Sleeve 22x28x12 | 42.26 | Add to Cart |
| 13 | 847802 | Spacer 25/31,95/13 | 35.33 | Add to Cart |
| 14 | 950380 | O-ring 32x4 | 13.28 | Add to Cart |
| 15 | 810293 | 810 293 Use 810 294 | 798.46 | Add to Cart |
| 16 | 941611 | Screw Plug M8x1 | 6.39 | Add to Cart |
| 17 | 241930 | 241 930 Use 241 935 | 0.45 | Add to Cart |
| 18 | 241236 | 241 236 Use 241 237 | 0.57 | Add to Cart |
| 19 | 931770 | Gasket | 14.9 | Add to Cart |
| 20 | 926231 | Cover | 135.61 | Add to Cart |
| 21 | 250311 | 250 311 Use 250 315 | 0.4 | Add to Cart |
| 22 | 945752 | 945 752 Use 945 832 | 0.17 | Add to Cart |
| 23 | 240071 | 240 071 Use 240 072 | 1.54 | Add to Cart |
| 24 | 956460 | Pressure Oil Line Assy., | 301.39 | Add to Cart |
| 26 | 230150 | Gasket Ring 10x14 A Din 7603 | 1.36 | Add to Cart |
| 28 | 853418 | Cable Clamp | 26.89 | Add to Cart |
| 30 | 240276 | 240 276 Use 240 277 | 1.59 | Add to Cart |
| 31 | 840711 | Stud M8 X 21 | 18.14 | Add to Cart |
