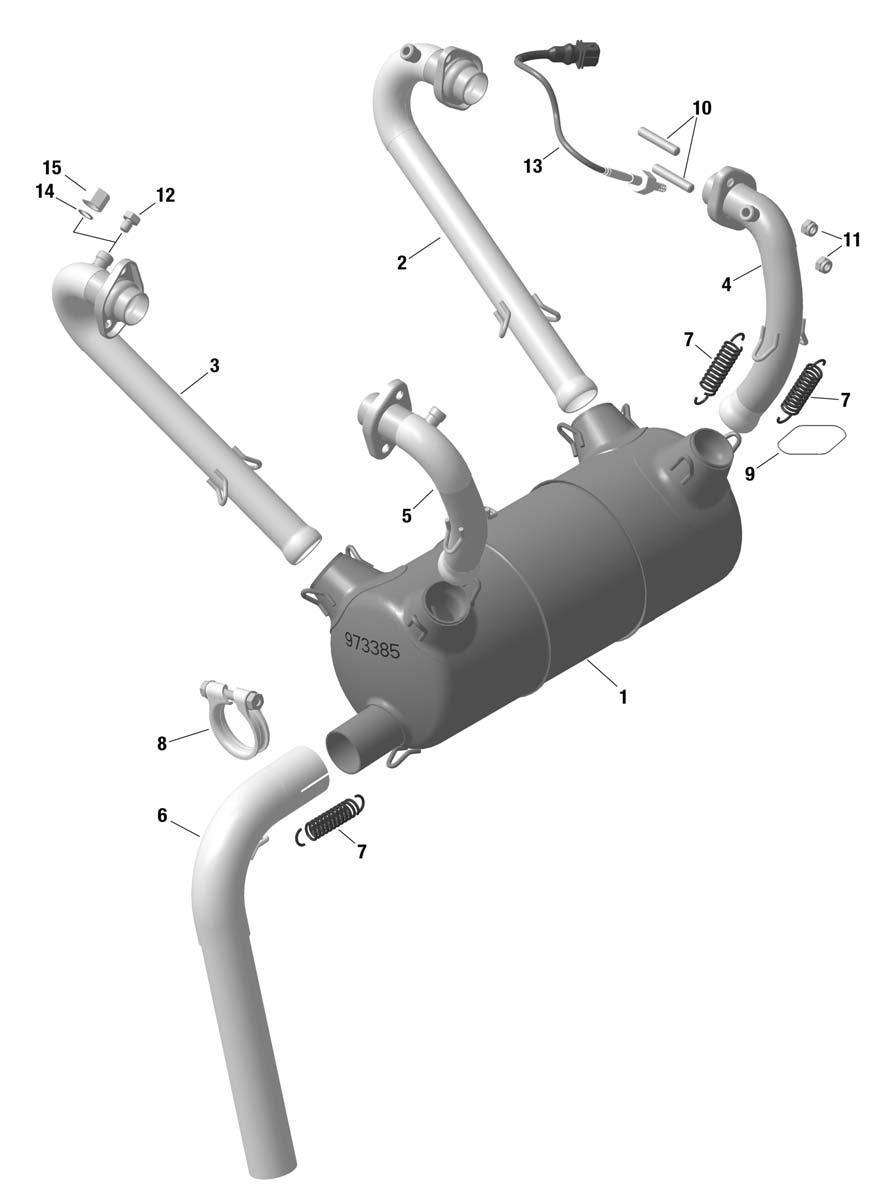

fig. 78-10-00-2
EXHAUST SYSTEM (STANDARD) For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-8 | 973380 | Exhaust Assy.stainless Steel | 3402 | Add to Cart |
| 1 | 973385 | Muffler Assy | 1401.01 | Add to Cart |
| 2 | 973010 | Exhaust Pipe Assy Cyl. 1 | 675.02 | Add to Cart |
| 3 | 973020 | Exhaust Pipe Assy Cyl. 2 | 808.2 | Add to Cart |
| 4 | 973030 | Exhaust Pipe Assy Cyl. 3 | 718.53 | Add to Cart |
| 5 | 973040 | Exhaust Pipe Assy Cul. 4 | 808.2 | Add to Cart |
| 6 | 973390 | Exhaust Elbow Stainless | 652.5 | Add to Cart |
| 7- | 938796 | Spring 66 Mm | 3.85 | Add to Cart |
| 7- | 938796 | Spring 66 Mm | 3.85 | Add to Cart |
| 8 | 951550 | Exhaust Pipe Clamp Assy | 25.92 | Add to Cart |
| 9 | 297555 | Please Pick Up Locally | 183.26 | Add to Cart |
| 10 | 940368 | Stud M8x23/20 | 7.1 | Add to Cart |
| 11 | 842950 | Lock Nut Din 14441 M8-sw12 | 3 | Add to Cart |
| 12 | 841115 | Hex Screw M8x1x10 | 28.94 | Add to Cart |
| 13 | 866261 | Temperature Sensor | 223.96 | Add to Cart |
| 14 | 230150 | Gasket Ring 10x14 A Din 7603 | 1.36 | Add to Cart |
| 15 | 841115 | Hex Screw M8x1x10 | 28.94 | Add to Cart |
