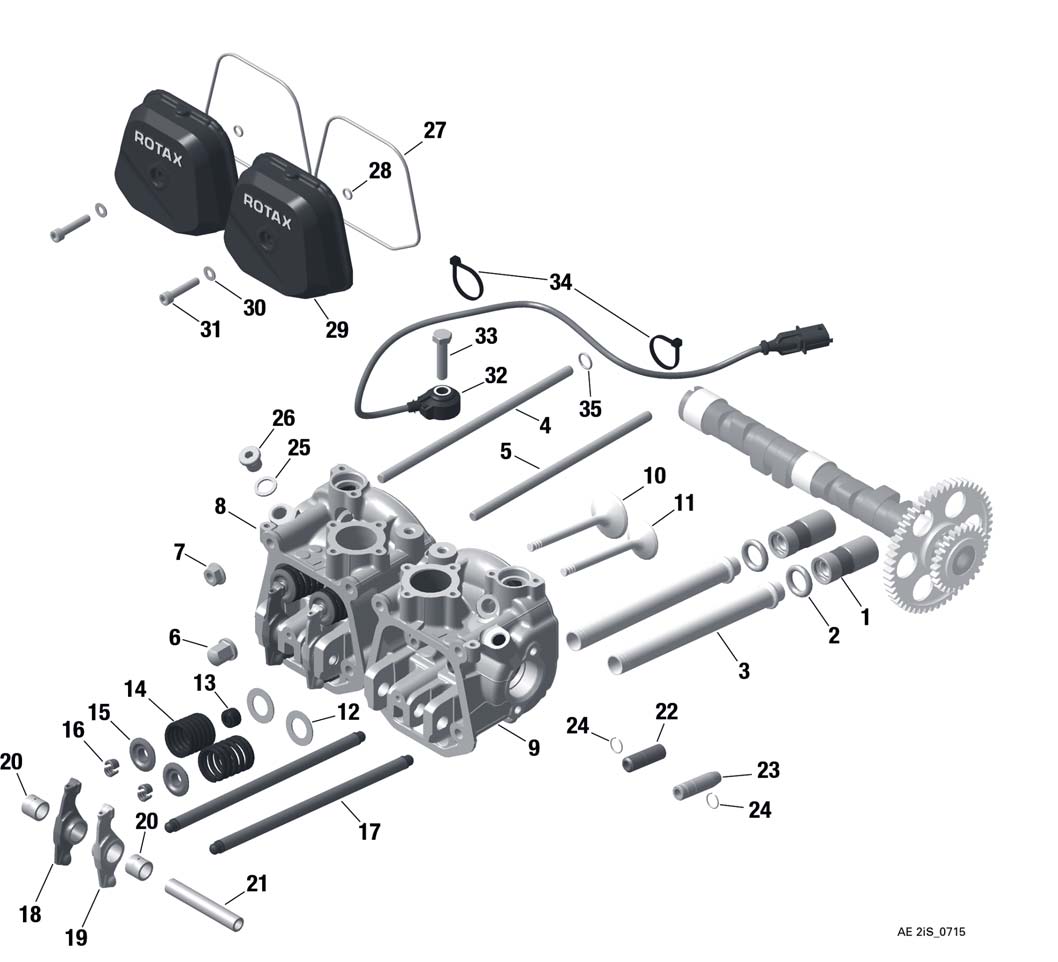

fig. 72-20-00-3
CAMSHAFT, VALVE TRAIN, CYLINDERHEAD, VALVE COVER For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 881832 | Hydraulic Valve Tappet Set | 1096.2 | Add to Cart |
| 2 | 850930 | O-ring 16x5 | 10.11 | Add to Cart |
| 3 | 924440 | Oil Return Tube | 45.27 | Add to Cart |
| 4 | 840171 | Stud M8 X 200 | 12.08 | Add to Cart |
| 5 | 840141 | Stud M8 X 186 | 12.08 | Add to Cart |
| 6 | 842476 | Collar Cap Nut M8 | 25.27 | Add to Cart |
| 7 | 942302 | Hex. Nut M8 | 22.04 | Add to Cart |
| 8 | 623774 | Cylinderhead 2/3 Assy. | 1822.8 | Add to Cart |
| 9 | 623784 | Cylinderhead 1/4 Assy. | 1870.71 | Add to Cart |
| 10 | 854101 | Intake Valve 38mm | 188.36 | Add to Cart |
| 11 | 854111 | Exhaust Valve 32mm | 304.31 | Add to Cart |
| 12 | 926210 | Shim 16/27.4/1 | 4.27 | Add to Cart |
| 13 | 230810 | Valve Stem Seal | 11.56 | Add to Cart |
| 14 | 838156 | Valve Spring | 32.65 | Add to Cart |
| 15 | 854188 | Valve Spring Retainer | 30.35 | Add to Cart |
| 16 | 253092 | Valve Cotter | 4.61 | Add to Cart |
| 17 | 854862 | Valve Push-rod Assy., | 151.47 | Add to Cart |
| 18 | 854387 | Rocker Arm Left | 329.73 | Add to Cart |
| 19 | 854397 | Rocker Arm Right | 329.73 | Add to Cart |
| 20 | 933396 | Bushing Vespel | 59.63 | Add to Cart |
| 21 | 854193 | Rocker Arm Shaft | 46.73 | Add to Cart |
| 22 | 854224 | Valve Guide 912s | 102.76 | Add to Cart |
| 23 | 253114 | Inlet Valve Guide | 30.76 | Add to Cart |
| 24 | 245440 | Retaining Ring A12 Din 7999 | 0.45 | Add to Cart |
| 25 | 250015 | Sealing Ring A12x18 Din 7603 | 0.32 | Add to Cart |
| 26 | 841923 | Plug Screw M12x1,5 Din 908 | 9.07 | Add to Cart |
| 27 | 250285 | O-ring 105x2,5 | 33.59 | Add to Cart |
| 28 | 430205 | O-ring 6,4x1,8 | 5.73 | Add to Cart |
| 29 | 612260 | Valve Cover | 229.16 | Add to Cart |
| 30 | 927941 | Washer 6,0/12/1 | 0.69 | Add to Cart |
| 31 | 840887 | Allen Screw M6x30 Din 912 | 0.69 | Add to Cart |
| 32 | 866270 | Knock Sensor | 302.95 | Add to Cart |
| 33 | 940483 | Hex. Screw M8x30 | 1.69 | Add to Cart |
| 34 | 866714 | Tie Wrap 142x3,2 Mm | 0.32 | Add to Cart |
| 35 | 431570 | O-ring 10,82x1.78-n | 0.69 | Add to Cart |
