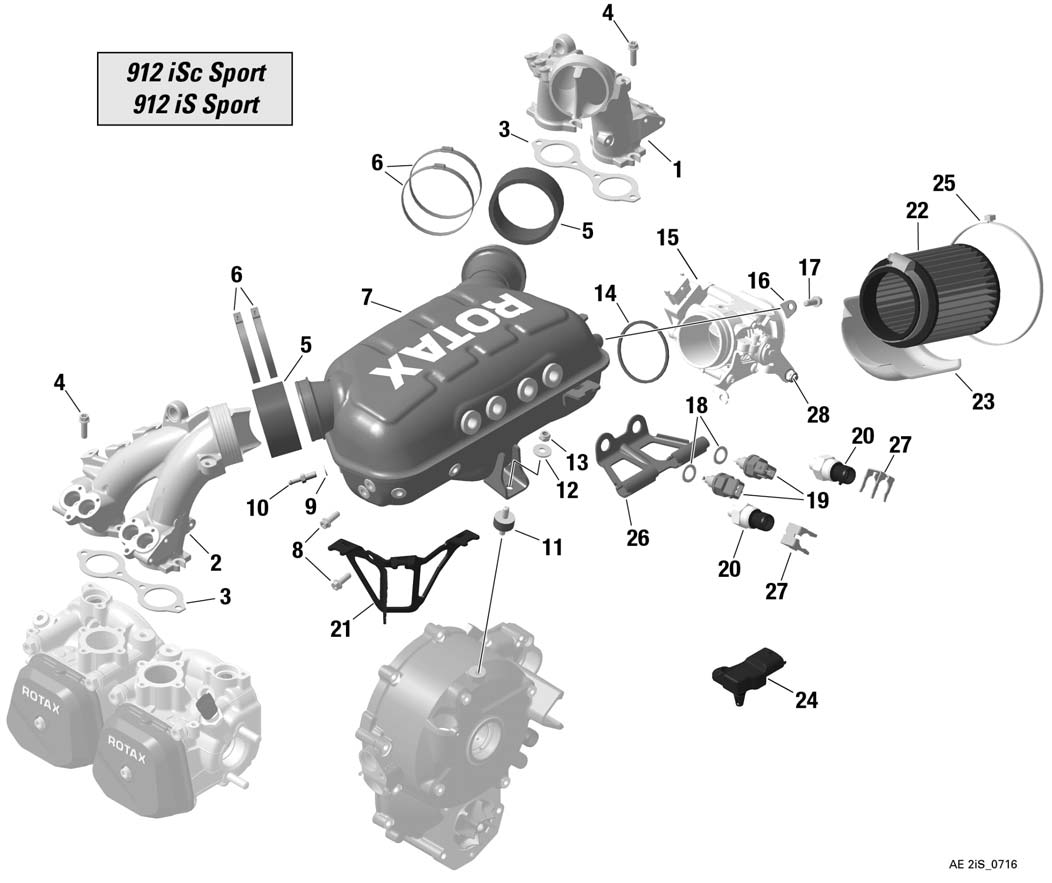

fig. 73-10-00-2
INTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET 912 iSc/iS SportINTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET 912 iSc/iS Sport For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 667401 | Intake Manifold 1/3 | 528.1 | Add to Cart |
| 2 | 667406 | Intake Manifold 2/4 | 469.79 | Add to Cart |
| 3 | 850091 | Isolating Flange | 7.47 | Add to Cart |
| 4 | 440207 | Hex./torx-flange Screw M6x20-sw8/t30 | 1.07 | Add to Cart |
| 5 | 460421 | Connecting Socket | 12.17 | Add to Cart |
| 6 | 953093 | Clamp 66-69 Mm | 5.52 | Add to Cart |
| 7 | 667411 | Airbox | 1405.4 | Add to Cart |
| 8 | 440164 | Hex. Torx-flange Screw M6x16-sw8/t30 Mk | 0.89 | Add to Cart |
| 9 | 230415 | Gasket Ring A 6x10 Din 7603 | 1.66 | Add to Cart |
| 10 | 840672 | Hose Nipple M6 | 42.21 | Add to Cart |
| 11 | 860700 | Rubber 20x10xm6 | 25.38 | Add to Cart |
| 12 | 827968 | Washer 6,4 Din 9021 | 0.32 | Add to Cart |
| 13 | 842042 | Lock Nut M6 | 3 | Add to Cart |
| 14 | 850020 | Rubber Ring | 4.04 | Add to Cart |
| 15 | 685056 |
Throttle Body Socket Assy. (Superceded : 685055) |
461.34 | Add to Cart |
| 16 | 953020 | Separating Plate | 2.11 | Add to Cart |
| 17 | 440147 | Hex./torx-flange Screw M6x12-sw8/t30 | 2.11 | Add to Cart |
| 18 | 250015 | Sealing Ring A12x18 Din 7603 | 0.32 | Add to Cart |
| 19 | 222421 |
Temperature Sensor (Superceded : 222423) |
38.66 | Add to Cart |
| 20 | 664364 |
Pressure Sensor 2,0 (Superceded : 664362) |
358.18 | Add to Cart |
| 21 | 951562 | Connector Bracket | 44 | Add to Cart |
| 22 | 825751 |
Air Filter Ru 0800 (Superceded : 825750) |
94.81 | Add to Cart |
| 23 | 975100 | Heat Shield | 19.41 | Add to Cart |
| 24 | 874654 | Pressure-/temp. Sensor | 333.47 | Add to Cart |
| 25 | 951500 | Clamp 381x4,8 Mm | 6.02 | Add to Cart |
| 26 | 651780 | Connectory Bracket | 50.85 | Add to Cart |
| 27 | 638140 | Clamp Map Sensor | 34.3 | Add to Cart |
| 28 | 440000 | Fixing Screw Assy | 73.1 | Add to Cart |
