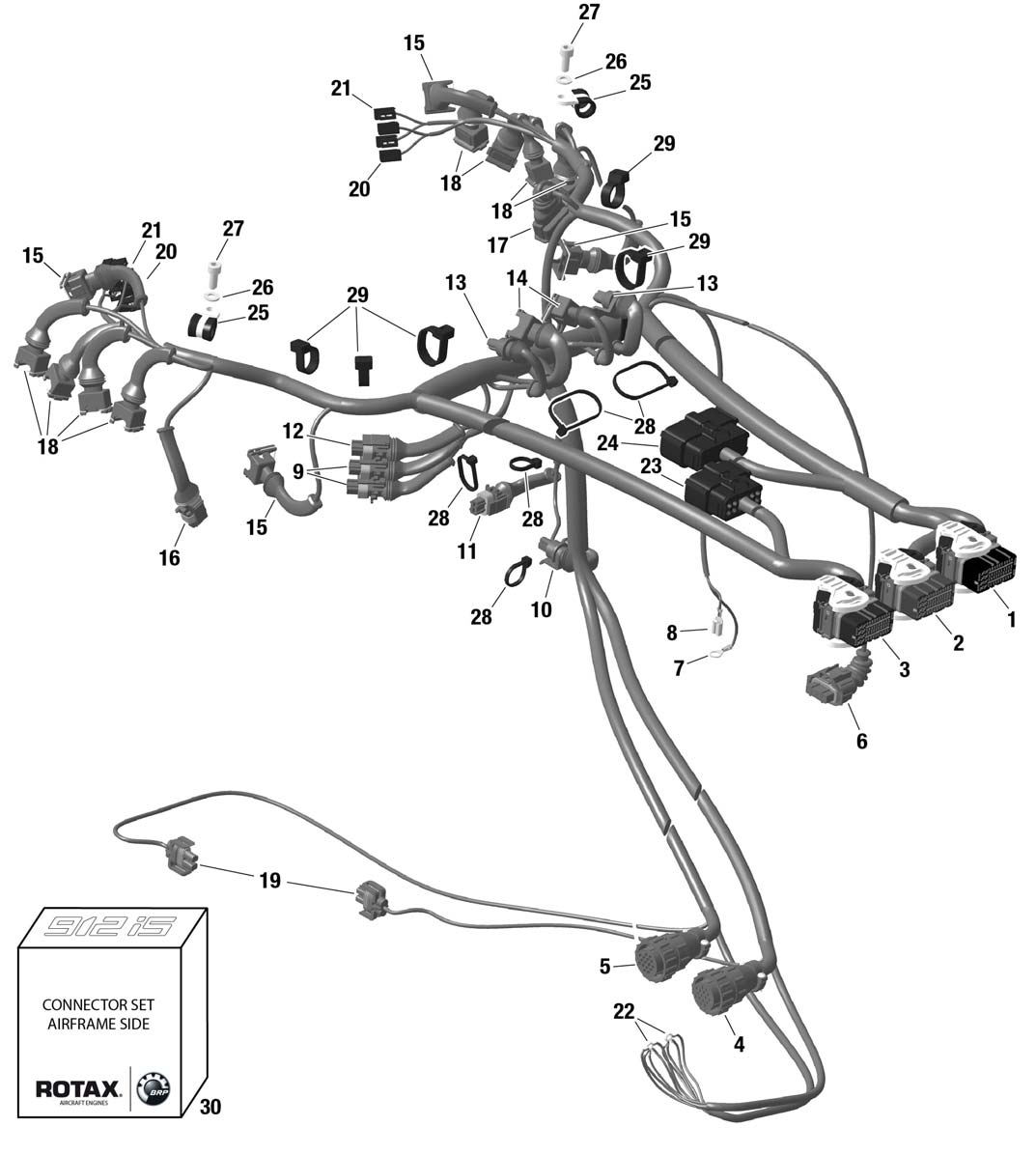

fig. 76-50-00-1
WIRING HARNESS For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-24 | 665580 |
Wiring Harness Standard Package (Superceded : 665571) |
2046.34 | Add to Cart |
| 4-5 | 881312 | Connector Set Fuse Box | 191.9 | Add to Cart |
| 6 | 881306 | Connector Set Aapts | 58.14 | Add to Cart |
| 7 | 964059 | Cable Shoe M6 | 1.49 | Add to Cart |
| 8 | 864011 | Faston Connector 6,3x0,8 | 1.49 | Add to Cart |
| 9 | 881298 | Connector Set Cps | 52.28 | Add to Cart |
| 10 | 881302 | Connector Set | 46.26 | Add to Cart |
| 11 | 881296 | Connector Set Cts A Ots A Knock | 61.37 | Add to Cart |
| 14 | 881292 | Connector Set Mats | 41.22 | Add to Cart |
| 15 | 881290 | Connector Set Egt | 47.66 | Add to Cart |
| 17 | 881308 | Connector Set Tps | 39.2 | Add to Cart |
| 18 | 881300 | Connector Set Inj | 41.22 | Add to Cart |
| 19 | 881304 | Connector Set Fuel Pump | 157.71 | Add to Cart |
| 20-21 | 881310 | Connector Set Ignition Coil | 46.04 | Add to Cart |
| 23-24 | 881294 | Connector Set Hic A And Hic B | 222.77 | Add to Cart |
| 25 | 251692 |
Cable Clamp 12/m6 (Superceded : 251691) |
4.29 | Add to Cart |
| 26 | 827962 |
Washer 6,4 Din 125 (Superceded : 827961) |
0.25 | Add to Cart |
| 27 | 840392 |
Allen Screw M6x14 Din 912 (Superceded : 840391) |
1.1 | Add to Cart |
| 28 | 866716 | Clamp | 0.55 | Add to Cart |
| 29 | 866714 | Tie Wrap 142x3,2 Mm | 0.32 | Add to Cart |
| 30 | 881240 | Connector Set | 381.79 | Add to Cart |
