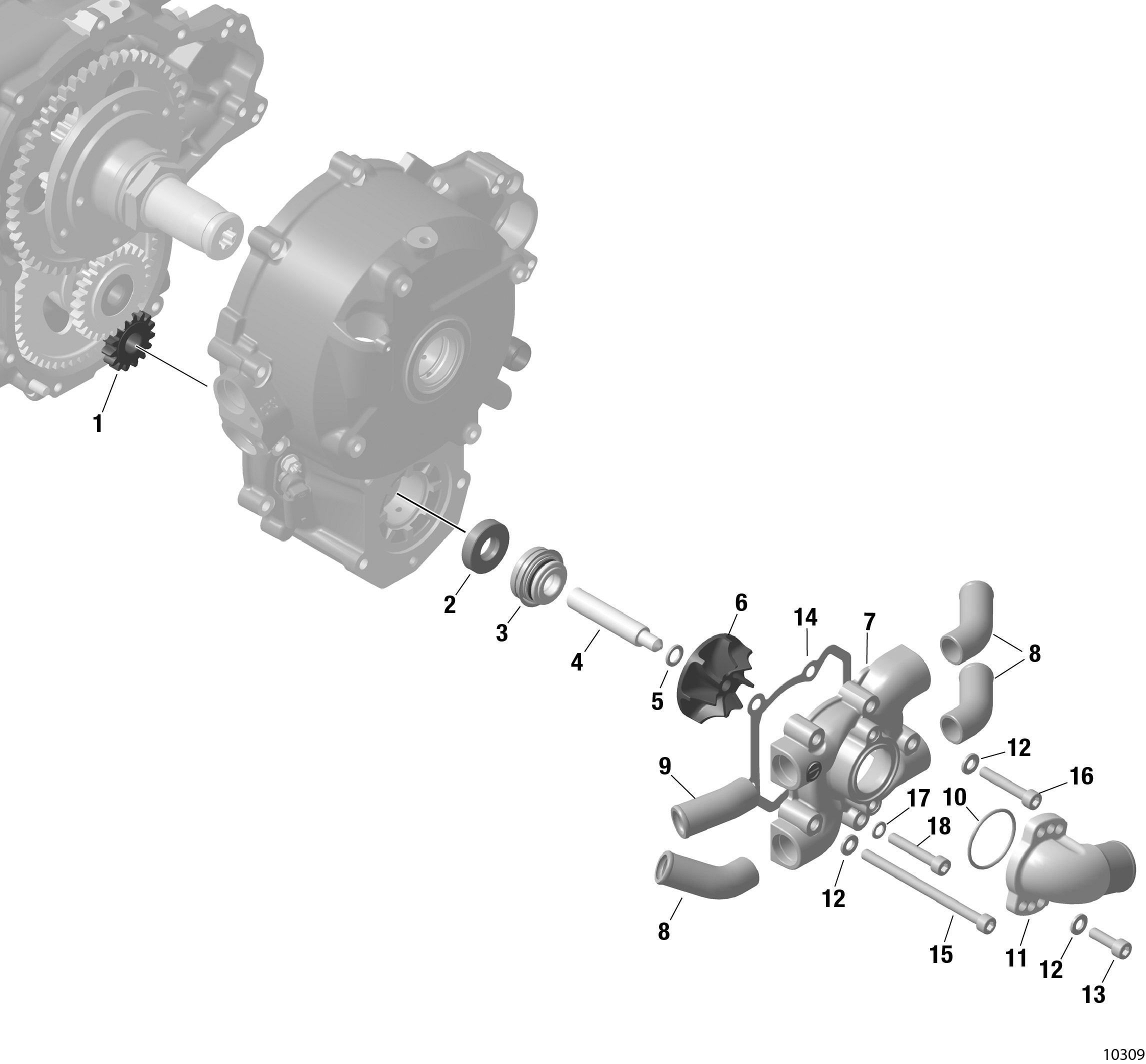

fig. 75-20-00
WATER PUMP WITH DRIVE For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 834136 | Water Pump Gear 15 T | 247.3 | Add to Cart |
| 2 | 850978 | Oil Seal A 12x30x7 Fpm | 82.26 | Add to Cart |
| 3 | 850946 | Seal/rotary | 57.79 | Add to Cart |
| 4 | 837112 | Pump Shaft | 212.49 | Add to Cart |
| 5 | 926274 | Washer 8.2/12.5/1.5 | 21.72 | Add to Cart |
| 6 | 922224 | Impeller | 41.43 | Add to Cart |
| 7 | 922202 | Water Pump Housing | 108.19 | Add to Cart |
| 8 | 922238 | Bent Socket 45 Degrees | 32.88 | Add to Cart |
| 9 | 922239 | Bent Socket 20 Degrees | 32.88 | Add to Cart |
| 10 | 230020 | O-ring 32x2 | 2.43 | Add to Cart |
| 11 | 922218 | Water Inlet Elbow | 404.59 | Add to Cart |
| 12 | 827962 | Washer 6,4 Din 125 | 0.21 | Add to Cart |
| 13 | 241935 | Allen Screw M6x20 | 0.67 | Add to Cart |
| 14 | 850983 | Gasket | 12.49 | Add to Cart |
| 15 | 241482 | Allen Screw M6x90 | 1.76 | Add to Cart |
| 16 | 241814 | Allen Screw, M6x35 | 0.87 | Add to Cart |
| 17 | 230415 | Gasket Ring A 6x10 Din 7603 | 0.21 | Add to Cart |
| 18 | 241813 | Allen Screw M6x35, Stainless | 1.71 | Add to Cart |
